Impacts of Type of Partial Transparency on Strawberry Agrivoltaics: Uniform Illumination Thin Film Cadmium-Telluride and Non-uniform Crystalline Silicon Solar Photovoltaic Modules

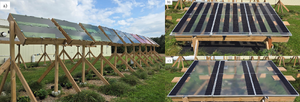

This study compares strawberry agrivoltaics using two different types of solar photovoltaic (PV) modules: uniform illumination provided from semi-transparent thin-film cadmium telluride (Cd-Te) and non-uniform illumination from semitransparent crystalline silicon (c-Si) which include rows of solar cells and the remainder transparent solar-grade glass. Strawberry plants were grown outdoors in Ilderton, ON under CdTe modules with 40% and 70% transparency (red, blue, and green), and c-Si modules with 44% and 69% transparency. Plant metrics such as fresh weight, height, leaf count, and chlorophyll content were measured, alongside soil temperature and humidity. Statistical analysis examined interactions between plant growth parameters. Overall, non-uniform illumination from c-Si PV modules significantly increased fresh weight by 18% compared to controls, while lowering soil temperatures and increasing humidity. Converting Canada's strawberry farmland to agrivoltaics could increase fruit revenue by CAD $27 million and generate over CAD $150 million in electricity value. Total revenues could more than double or triple, depending on the c-Si module density. Additionally, applying electricity savings to reduce fruit prices could lower strawberry costs from CAD $6.51/kg to CAD $4.82/kg, a reduction of over 25%. Agrivoltaics offers the potential for energy self-sufficiency and substantial additional revenue for strawberry farmers, leading to reduced food prices.
In the News
[edit | edit source]- []
See also
[edit | edit source]The Western Innovation for Renewable Energy (WIRED) system is currently under construction to test out new open source methods to reduce PV systems costs and enable novel forms of agrivoltaics including the world's first agrivoltaic agrotunnel.
- Coal with Carbon Capture and Sequestration is not as Land Use Efficient as Solar Photovoltaic Technology for Climate Neutral Electricity Production
- Dual use of land for PV farms and agriculture literature review
- sheep
- Israeli white plastic reflectors
- A Farmer's Guide to Going Solar (NREL)
- German guidelines: https://www.ise.fraunhofer.de/content/dam/ise/en/documents/publications/studies/APV-Guideline.pdf
- 2021 review
- Miskin, C.K., Li, Y., Perna, A., Ellis, R.G., Grubbs, E.K., Bermel, P. and Agrawal, R., 2019. Sustainable co-production of food and solar power to relax land-use constraints. Nature Sustainability, 2(10), pp.972-980.
- Retrofitting solar parks for agrivoltaics
- Shading PV
- Alexis' talk at American Solar Grazing Association2021
In the News
[edit source]From: Financial Analysis of Agrivoltaic Sheep: Breeding and Auction Lamb Business Models
- Raising sheep for grazing under solar panels makes everyone clean, green money - Western News
- Sheep Grazing Under Solar Panels Yields Green Profits Mirage News
- Agrivoltaics paired with sheep production makes nearly 100% of land grazable TechXplore
- Agrivoltaics paired with sheep production makes nearly 100% of land grazable MSN
- Grazing ’solar’ sheep offer lucrative solution for farmers My Science
- Global Renwable News
- Rinnovabili
- Education News Canada
- How agrivoltaics and “solar” sheep are redefining profitable farming in Canada PV Buzz
- Nature’s best lawnmower: How solar grazing is changing the photovoltaic landscape Euronews
- Yahoo NewZealand
- Bundle
- Photos: Sheep grazing boosts solar farms and soil health in the US and Europe Interesting Engineering
- O melhor cortador de relva da natureza: como o pastoreio solar está a mudar a paisagem fotovoltaica EuroNews
- La meilleure tondeuse à gazon de la nature : comment le pâturage solaire change le paysage photovoltaïque - Observatoiredeleurope
- Solar sheep grazing under agrivoltaic arrays can maximise land use News9
- El mejor cortacésped natural: ¿Cómo el pastoreo solar está cambiando el panorama fotovoltaico? Yahoo Spain
- ‘Solar shepherds’ earn big by grazing sheep on solar farms — and they benefit everyone involved Modern Science
- Sheep farmers are crazy about solar power plants: “Salaries are higher than lawyers” Central asia Climate Portal
- Researchers make unexpected discovery about sheep raised in nontraditional environment: 'There is an enormous opportunity' The Cool Down
- ‘Solar shepherds’ earn big by grazing sheep on solar farms — and they benefit everyone involved The Conversation
- Får och solparker - en vinst för både lantbruk, får och klimat Energinyheter (se)
- Researchers make unexpected discovery about sheep raised in nontraditional environment: 'There is an enormous opportunity' Yahoo
- Une étude révèle un duo gagnant : moutons et panneaux solaires, “un potentiel immense” Le Energeek
- ‘Farming Sunshine’ Brings Food, Power Producers Together for Local Baaa-nefit The Energy Mix
- Bùng nổ ngành nông nghiệp quang điện Saigon Online
- Solar sheep make better wool? The Carbon Almanac
- How to use sheep to manage vegetation at solar farms, boost agriculture Farm Progress
- Tarımsal Voltaik Sistemler ve Koyunlar Tarim Gundem (Turkish)
- Les « moutons solaires », un mariage lucratif entre agriculture et énergie propre Radio Canada
Agrivoltaics in Canada
[edit source]- Solar Sheep, Alberta (https://www.solarsheep.ca/)
- Sun Cycle Farms, Alberta (https://suncyclefarms.com/)
- Golden Leaf Agrivoltaics, Ontario (https://goldenleafagrivoltaics.ca/)
- The Lara Cost Farm, Ontario (https://thelaracosta.com/)
- Arnprior Solar, Ontario (https://www.edf-re.com/project/arnprior-solar/)
- Lewis Land & Stock, Ontario (https://solargrazing.org/asga-call-29-don-lewis-from-lewis-land-stock-of-ontario-canada/)
- Nanticoke Solar, Ontario (https://www.opg.com/stories/hundreds-of-grazing-sheep-helping-to-keep-opgs-nanticoke-solar-facility-in-trim-shape/)
- Western University’s Western Innovation for Renewable Energy Deployment (WIRED) (https://www.appropedia.org/Western_Innovation_for_Renewable_Energy_Deployment_(WIRED))
- Orchard, Middlesex, Ontario
- Solar Grazing Map https://solargrazing.org/map/
| Authors | Uzair Jamil, Joshua Givans, Joshua M. Pearce |
|---|---|
| License | CC-BY-SA-4.0 |
| Organizations | Free Appropriate Sustainable Technology, Western |
| Cite as | Uzair Jamil, Joshua Givans, Joshua M. Pearce (2025). "Impacts of Type of Partial Transparency on Strawberry Agrivoltaics: Uniform Illumination Thin Film Cadmium-Telluride and Non-uniform Crystalline Silicon Solar Photovoltaic Modules". Appropedia. Retrieved June 17, 2026. |
