Open-Source Photometric System for Enzymatic Nitrate Quantification
|Open-Source Photometric System for Enzymatic Nitrate Quantification|
|Description||Nitrate, the most oxidized form of nitrogen, is regulated to protect people and animals from harmful levels as there is a large over abundance due to anthropogenic factors. The leading certified method to detect and quantify nitrate, demands the use of a toxic heavy metal. An alternative eliminates this problem but requires an expensive proprietary spectrophotometer. The development of an inexpensive portable, handheld photometer will greatly expedite field nitrate analysis to combat pollution.|
|Intended use||development, industry|
|Keywords||water quality, nitrogen testing, portable photometer|
|Project was made||Yes|
|Main materials||Plastic, NinjaFlex, LED|
|SDG||Sustainable Development Goal 6, Sustainable Development Goal 10, Sustainable Development Goal 14|
|By Michigan Tech's Open Sustainability Technology Lab.
Wanted: Students to make a distributed future with solar-powered open-source 3-D printing.
Pearce Publications: Energy Conservation • Energy Policy • Industrial Symbiosis • Life Cycle Analysis • Materials Science • Open Source • Photovoltaic Systems • Solar Cells • Sustainable Development • Sustainability Education
- Wittbrodt BT, Squires DA, Walbeck J, Campbell E, Campbell WH, Pearce JM. (2015) Open-Source Photometric System for Enzymatic Nitrate Quantification. PLoS ONE 10(8): e0134989. doi: 10.1371/journal.pone.0134989 open access
- This project derived from: Open-source mobile water quality testing platform
- STL files for 3D printing case
- OpenSCAD code: File:Photometer.scad
- Open Source Software: https://github.com/NitrateEliminationCo/NECiOpenWater
Nitrate, the most oxidized form of nitrogen, is regulated to protect people and animals from harmful levels as there is a large over abundance due to anthropogenic factors. Widespread field testing for nitrate could begin to address the nitrate pollution problem, however, the Cadmium Reduction Method, the leading certified method to detect and quantify nitrate, demands the use of a toxic heavy metal. An alternative, the recently proposed Environmental Protection Agency Nitrate Reductase Nitrate-Nitrogen Analysis Method, eliminates this problem but requires an expensive proprietary spectrophotometer. The development of an inexpensive portable, handheld photometer will greatly expedite field nitrate analysis to combat pollution. To accomplish this goal, a methodology for the design, development, and technical validation of an improved open-source water testing platform capable of performing Nitrate Reductase Nitrate-Nitrogen Analysis Method. This approach is evaluated for its potential to i) eliminate the need for toxic chemicals in water testing for nitrate and nitrite, ii) reduce the cost of equipment to perform this method for measurement for water quality, and iii) make the method easier to carryout in the field. The device is able to perform as well as commercial proprietary systems for less than 15% of the cost for materials. This allows for greater access to the technology and the new, safer nitrate testing technique.
Enzymes and Photometers Poster at Pittcon 2016
- W.H. Campbell, E.R. Campbell, D.A. Squires, J. Walbeck, W. Ashbaugh, A. Davidson, B.T. Wittbrodt, J.M. Pearce. Enzymes and Photometers. This poster was presented at Pittcon 2016 - Session 820 - Portable Instruments download poster
NECi Superior Enzymes develops wet chemistry methods that replace metals and other chemicals with recombinant protein reagents. These protein reagents are produced in tightly controlled protein expression systems for lot-to-lot consistency and therefore can be regarded as any other reagent-grade chemical. NECi’s nitrate reductase enzyme reagents for nitrate quantification have been on the commercial market for over ten years. Method validations for the nitrate reductase method include USGS, ASTM, and pending validations for the U.S. EPA Clean Water Act+, Safe Drinking Water Act+ and Standard Methods+. NECi Superior Enzymes has since developed enzyme-based test methodologies for quantification of phosphate, and the research and development team is currently developing methods for the quantification of ethanol, glycerol, and galactose. The idea for this project was prompted by the lack of economical photometers compatible with standard 1ml cuvettes to provide quantitative data from the methods described above.
- Wittbrodt BT, Squires DA, Walbeck J, Campbell E, Campbell WH, Pearce JM (2015) Open-Source Photometric System for Enzymatic Nitrate Quantification. PLoS ONE 10(8): e0134989. doi:10.1371/journal.pone.0134989
- Campbell ER, Warsko K, Davidson A-M, Campbell, WH, (2015) Determination of phosphate in soil extracts in the field: A green chemistry enzymatic method. Methods X 2, pp211-218. doi:10.1016/j.mex.2015.04.003
- Campbell WH, Song P, Barbier GG (2006) Nitrate reductase for nitrate analysis in water. Environmental Chemistry Letters 4(2) pp 69-73. doi:10.1007/s10311-006-0035-4

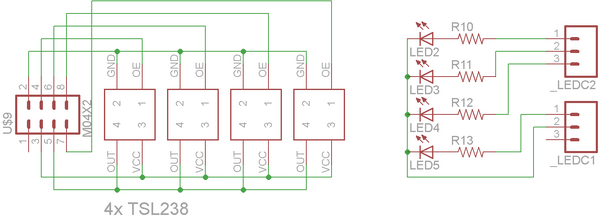

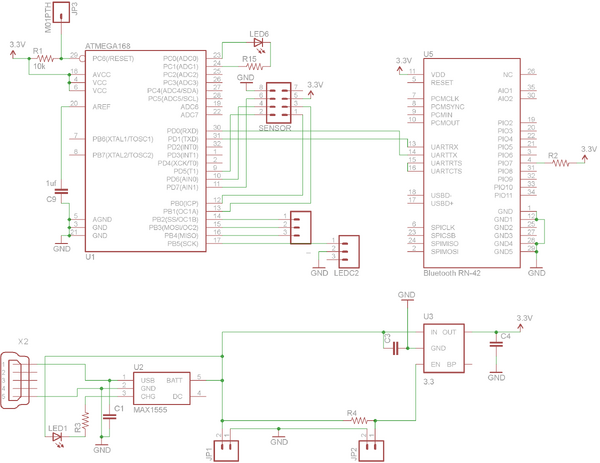

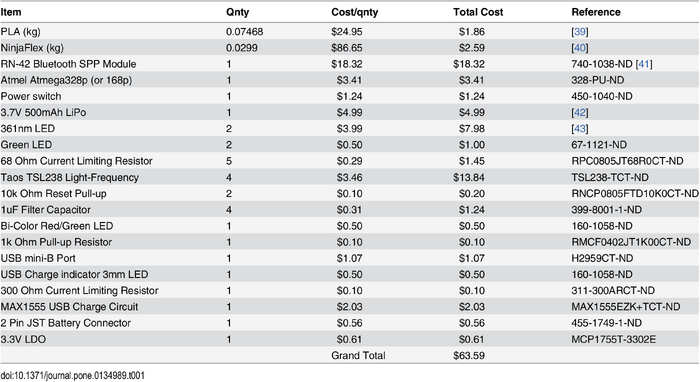

Bill of Materials
Cost breakdown of the photometer case and electronics (Digikey part # unless externally referenced).
How to use it
|NECi Superior Enzymes|
|OS spectrometer being used to test soil with simplified nitrate test kit.|
NECi's Nitrate Test Kits are enzyme based unlike other nitrate test kits commercially available. Enzymes are proteins, biologically derived, meaning that they are safe to handle and dispose of. These kits are easy to use and are excellent educational tools for learning about enzymatic activity, water quality, biochemistry, agriculture, and more. Ask about our "education discount" for classroom use. No laboratory training is required, and results are ready within 30 minutes.
Compact and lightweight kit design allows for easy instant on-site nitrate determination in the field. The US EPA and many states sponsor programs for citizens to monitor water quality in their community (More information from the EPA here). These kits will measure nitrate in both fresh and salt water.
In all cases you can get a rough estimate from the color chart - but to get precise readings as you would from a professional lab you need to use the open source photometer.
For more information on the test kits, contact NECi Superior Enzymes at 888.NITRATE or visit nitrate.com.
You can use NECi colorimetric test kits with the photometer to measure nitrate content in:
- Well water, drinking water, agricultural water, pond water
- Streams, lakes, rivers, oceans, wetlands, and other environmental watersheds
- Wastewater, industrial manufacturing effluent, and more
- Aquarium, Hydroponic, Aquaculture, and Aquaponic water
- Standard Range Water Nitrate Test Kit
- Low Range Water Nitrate Test Kit
- SDS for Simplified Field Test Kits
For high crop yield, enough Nitrate needs to be available in the soil, while over-application results in wasted fertilizer. Make best use of manures in NMP compliance, practice good environmental stewardship to prevent groundwater nitrate runoff. Use this kit for pre-sidedress Soil Nitrate Testing for appropriate nutrient application.
The NECi kit will detect 0 ppm - 50 ppm Nitrate-N (50 ppm Nitrate-N = 250 lb N/acre)
Plant Petiole Nitrate Test Instructions
Use this kit to test for nitrate levels in plants and hone in on appropriate fertilizer application. Test corn and cotton stalks or the sap from petioles of leafy crops to monitor nitrate level fluctuations. For best results, refer to a Certified Crop Advisor for plant sampling advice. Refer to the Petiole Sap Nitrate Guidelines under Related Information for testing crop petioles.
This kit will detect 0 ppm - 1000 ppm Nitrate-N. (1000 ppm Nitrate-N = 5000 ppm Nitrate)
- Plant Petiole Nitrate Test Kit Instructions
- Data Sheet for Plant Petiole
- SDS for Simplified Field Test Kits
Green Forage Nitrate Test Instructions
The NECi Nitrate Test Kit for Livestock Feed is used to prevent livestock toxicity from excess nitrate, often caused by drought conditions.
- Green Forage Nitrate Test Kit Instructions
- Data Sheet for Green Forage
- SDS for Simplified Field Test Kits
