This page is part of the 2019 Principia course ENGR242: 3-D Printing TechnologyIt's open edit now, so feel free to improve it.Read more...

Assignment

  1. Identify scientific/engineering lab need on campus for a 3D printable substitute for existing or planned purchase
  2. Meet with users to determine exact needs/acquire funds/components for multipart equipment
  3. Design 3D printable components with OS CAD packages
  4. On your Appropedia page: post a picture, the STL file, directions, explanation of what it is and a price estimate for a commercial equivalent (may also post on your Appropedia page)
  5. Print component and bring to class
  6. Add picture to this page in gallery below with a link further description on your Appropedia page, "savings per replica" and a hyperlink a commercially available product with cost.

List of previous projects[edit | edit source]

  • project name, ~~~~ to sign it

2019:

  • Battery-powered fan mount for autonomous robot, Natstormm. Created for: Austin Webster
  • Bug Catching Box RachaelOstheim. Created for: John Lovseth
  • Gear for engineering transmission project, Bailey Peticolas. Created for: Robbie Robison
  • Trawl for water sampling in the Mississippi User: AbigailDeWeese. Created for: Marie Farson
  • cornerpieces for iPad stands User: NoahStewart. Created for: Heather Holmes
  • Field camera water proof case, User: Estebanrojas27. Created for: Scott Eckert

2018:

  • Laser blocker stand, Alex.weitman, Alex Weitman. Created for: Grant Larsen
  • Field camera water proof case, Ian Armesy. Created for: Scott Eckert
  • Test tube holder, Sofia Carrillo, created for: Chrissy McAllister
  • WACOM tablet pen holder, Aaron.cranford, Aaron Cranford. Created for: Dan Kistler
  • Camera to telescope stabilizer, Alan Freeman. Created for: Tom Fuller
  • Data Radio Box, Skylyr Cieply. Created for John Broere
  • Solar Car Battery Box, TimBassler. Created for: Brian Kamusinga
  • Magnetic bearing, TimBassler. Created for: Steve Ward
  • Test Tube Holder, Jonathan3DBean. Created for: Jeff Cornelius
  • Homework and Supply Organizer, Jacob.huss. Created for:Gage Edgar

Gallery[edit | edit source]

Add your image and link the gallery below in a single line after the last one in the list
  • Customized OSH Science Projects
  • Terrain map of Elsah IL,[1],$unknown

    Terrain map of Elsah IL,[1],$unknown

  • iPad corner pieces,[2], Savings: $99[3]

    iPad corner pieces,[2], Savings: $99[3]

  • Bug Catching Box,[4],$unknown

    Bug Catching Box,[4],$unknown

  • Dry/Wet Funnel, [5], Cost: $0.64, Savings: $6

    Dry/Wet Funnel, [5], Cost: $0.64, Savings: $6

  • Drinking Bird [7] Cost $5.99

    Drinking Bird [7] Cost $5.99

Gallery[edit | edit source]

Add your image and link the gallery below in a single line after the last one in the list
  • Customized OSH Projects from 2017 class

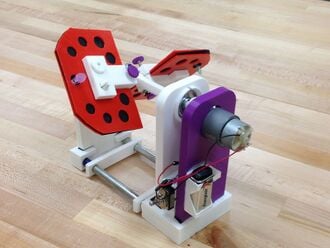

  • Sample Rotator,Sample Rotor, $495 [6]

    Sample Rotator,Sample Rotor, $495 [6]

  • adhought creating the sieve,NIH Link, $50,[7]

    adhought creating the sieve,NIH Link, $50,[7]

  • Telescope adapter for cannon dlsr,NIH Link, $89.99,[8], cost to print $3 filament costs, giving a savings of $86.99

    Telescope adapter for cannon dlsr,NIH Link, $89.99,[8], cost to print $3 filament costs, giving a savings of $86.99

  • Battery module holder for solar car,[9], This would cost $108.13 from a custom fabrication house, which is where it would need to come from. https://www.shapeways.com/model/upload-and-buy/5950678

    Battery module holder for solar car,[9], This would cost $108.13 from a custom fabrication house, which is where it would need to come from. https://www.shapeways.com/model/upload-and-buy/5950678

  • Safety Switch Cover,Commercial Equiv., $17.48 w shipping, giving a savings of $17.44

    Safety Switch Cover,Commercial Equiv., $17.48 w shipping, giving a savings of $17.44

  • Beam Blocker Stand, Beam Blocker Stand, $5.86

    Beam Blocker Stand, Beam Blocker Stand, $5.86

  • Longboard Footstop,Longboard Footstop, $20 [10]

    Longboard Footstop,Longboard Footstop, $20 [10]

  • Small Test Tube Holder,NIH Link, An epoxy wire rack that holds 36 tubes costs $32. [11]. This print cost approximately $5.73, so it would save you $26.27

    Small Test Tube Holder,NIH Link, An epoxy wire rack that holds 36 tubes costs $32. [11]. This print cost approximately $5.73, so it would save you $26.27

  • Large Test Tube Holder,Holder, This was offered at $29.99 from Amazon making the savings being $23.60 plus time savings

    Large Test Tube Holder,Holder, This was offered at $29.99 from Amazon making the savings being $23.60 plus time savings

  • Math Modeling Manipulative - Tower of Hanoi, [12], $19.50 on Amazon and about $1.20 of filament here

    Math Modeling Manipulative - Tower of Hanoi, [12], $19.50 on Amazon and about $1.20 of filament here

  • Maple Tree Tap,$3.80 per Spile with tubing and filter attached so not much cost savings here

    Maple Tree Tap,$3.80 per Spile with tubing and filter attached so not much cost savings here

  • LCD Screen Casing,[13], $11.90

    LCD Screen Casing,[13], $11.90

  • Magnetic arc for laser lab,[14], $unknown

    Magnetic arc for laser lab,[14], $unknown

  • Terrain map of Elsah IL,[15],$unknown

    Terrain map of Elsah IL,[15],$unknown

  • Test Tube Holder,[16], 9 hours to print for a price of $2

    Test Tube Holder,[16], 9 hours to print for a price of $2
