TissueDB/Simulators/Laparoscopic Cholecystectomy Simulator
The Laparoscopic Cholecystectomy Simulator is a low-cost training module built from locally available materials for practising laparoscopic cholecystectomy.[1] The developer module supplies the shopping list, cutting templates and expert paradigm video. The completed target module is used inside the Laparoscopic Box Trainer Simulator.
| Field | Details |
|---|---|
| Features and Basic Operation | Learners construct a simulation of gallbladder disease and perform laparoscopic dissection using the ALL-SAFE box-trainer platform. The source directly uses a medium green balloon as the Gallbladder representation. Other listed materials create the supporting training assembly but are not assigned additional anatomical tissue identities on this page. |
| Current Development Status | The ALL-SAFE physical build is documented by the developer shopping list, templates and expert paradigm material. Kim et al. (2025) subsequently evaluated the module-specific CHOLE-VOP laparoscopic cholecystectomy proficiency assessment in 52 participants and reported significant differences between experience groups for both checklist and global-rating scores.[2] Later 2026 ALL-SAFE studies provide broader curriculum and operative-use outcome context.[3][4] These later platform studies do not independently validate the physical materials or tissue fidelity of this gallbladder model, and observational operating-room associations must not be interpreted as proof of causation. |
| Estimated Build Time and Cost | - - |
| Specialized Tools and Equipment | For construction: scissors. For training use: reusable laparoscopic Maryland dissector ×2; grasper ×2 (also called a wavy grasper or Hunter); laparoscopic scissors; laparoscopic needle driver ×1; and suture cut to 15 cm, with silk or Vicryl recommended and white suture avoided. These laparoscopic instruments are shared training equipment and are not part of the gallbladder-module build cost. |
| Version | Version 1 |
| Development Team Contact Information | ALL-SAFE Consortium: Pan-African Academy of Christian Surgeons, University of Michigan, Southern Illinois University, Soddo Christian Hospital, AIC Kijabe Hospital, Mbingo Baptist Hospital |
Tissues
| Tissue | Qty | Material | Cost | Notes |
|---|---|---|---|---|
| Gallbladder | 1 | Medium-size regular green balloon | - | Direct ALL-SAFE source relationship. The green balloon represents the Gallbladder. Do not extend this relationship to other listed materials unless a source explicitly assigns them anatomy. |
Structural Parts
| Part Name | Qty | Material | Cost | Notes |
|---|---|---|---|---|
| Filling material | As needed | Sand; source-listed alternatives: sawdust or ground coffee | - | Build input listed by ALL-SAFE. No anatomical target is assigned by the source. |
| Modeling balloons | 3 | Modeling balloons — red, green and blue; source-listed alternative: drinking straw | - | Supporting build components. The source does not establish separate tissue relationships for these items. |
| Cotton filling | As needed | Cotton balls; alternative: cotton rolls | - | Ideally white and visibly different in colour from the shoe bag. No source-assigned tissue target. |
| Non-woven shoe bag | 1 | Non-woven shoe bag; alternative: small pillow case | - | Pink or red if available. This is a source build component. No direct source supports a Non-woven shoe bag → Gallbladder Wall relationship, so no such anatomy edge is created. |
| Plastic film | As needed | Press'n Seal; alternative: plastic cling wrap | - | Source-listed build material. Its physical source wording is preserved independently of broader TissueDB Plastic Film class/navigation decisions. |
| Yarn | As needed | Yarn | - | Source-listed build component with no separate anatomy assignment established here. |
| Tape | As needed | Transparent tape | - | Assembly material. |
| Fastener | As needed | Stapler; source-listed alternative: needle and thread | - | Assembly fastening only. |
| Paper support | 1 | A4 paper; source-listed alternative: paper plate | - | Supporting build component. |
| Surgical glove / specialty bag | 1 | Surgical glove or specialty bag | - | Source-listed build input. No additional anatomy relationship is inferred. |
| Suture tie | 1 | Suture tie | - | Source-listed fastening/procedure component. |
Build Instructions
Source-defined build boundary
The ALL-SAFE Gallbladder Disease module provides:
- the material shopping list;
- US Letter cutting templates;
- A4 cutting templates; and
- an expert paradigm video.
The source does not provide a complete enumerated written construction procedure.
Do not reconstruct or invent step-by-step assembly instructions from the finished image, related ALL-SAFE modules, or general anatomical knowledge.
Required source resources
Use:
- ALL-SAFE Gallbladder Disease Simulation;
- ALL-SAFE Gallbladder Disease Shopping List;
- US Letter cutting template;
- A4 cutting template; and
- the expert paradigm video provided on the developer module page.
Construction
Construct the gallbladder-disease target module using the developer shopping list, the appropriate cutting template and the expert paradigm video.

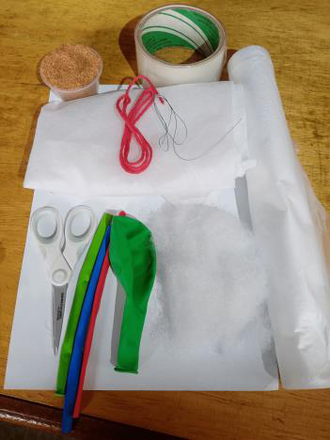

The source materials include:
- one medium green regular balloon;
- sand, with sawdust or ground coffee as alternatives;
- three modeling balloons — red, green and blue — with a drinking straw as an alternative;
- cotton balls or cotton rolls;
- one non-woven shoe bag or small pillow case;
- Press'n Seal or plastic cling wrap;
- yarn;
- transparent tape;
- stapler or needle and thread;
- A4 paper or a paper plate;
- one surgical glove or specialty bag;
- one suture tie; and
- scissors.
The exact assembly sequence must be taken from the source templates/video rather than recreated as unsupported prose.
Use

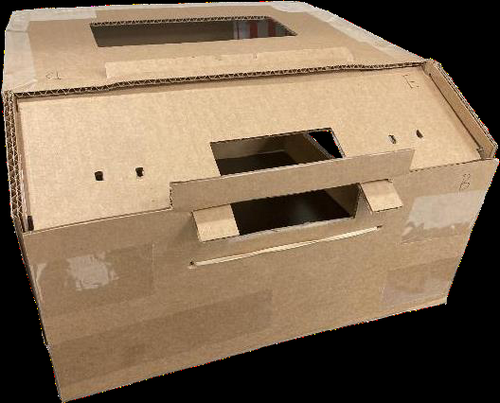

Place the completed gallbladder target module inside the Laparoscopic Box Trainer Simulator.
Use the source-listed reusable laparoscopic instrument set for the training exercise.
Anatomy and role boundaries
- The medium green balloon directly represents the Gallbladder.
- No source establishes the non-woven shoe bag as Gallbladder Wall.
- Do not create a shoe-bag → Gallbladder Wall relationship.
- Scissors are a construction tool, not a structural simulator component.
- Sand, cotton, plastic film, yarn, tape, paper, glove, suture and fasteners retain their source build roles without invented anatomy.
- Press'n Seal / plastic cling wrap wording remains source-specific; broader Plastic Film class architecture is a separate governance matter.
- The box trainer is a separate reusable host platform and not part of this target module's anatomy.
Cost boundary
The ALL-SAFE developer shopping list contains no prices.
The former per-row US-dollar values and approximately US$50 total were May 2026 retail estimates, not source-reported costs. They are therefore removed from the canonical Cost field and material rows.
Kim et al. (2025) separately describes the evaluated cholecystectomy simulation setup as low-cost and reports a materials-cost scope below US$10. That later study value must not be combined with the May 2026 retail estimate or treated as a replacement itemized shopping-list price without preserving its own study scope.
Evidence boundary
Kim et al. (2025) provides module-specific psychomotor/proficiency evidence through CHOLE-VOP.
The later 2026 ALL-SAFE studies provide broader curriculum/platform outcome evidence.
These evidence sources do not:
- rewrite the developer BOM;
- establish new material-anatomy relationships;
- prove physical tissue fidelity of every component; or
- establish that observational changes in operative activity were caused solely by this physical simulator.
| Alternative names | Laparoscopic Cholecystectomy Trainer |
|---|
| Authors | Arturopelayo |
|---|---|
| License | CC-BY-SA-4.0 |
| Cite as | Arturopelayo (2026). "TissueDB/Simulators/Laparoscopic Cholecystectomy Simulator". Appropedia. Retrieved September 14, 2026. |
