Newspaper briquet maker

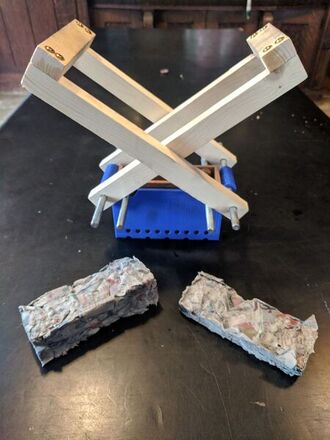

Final Maker with Briquettes.jpg
Description Fulfills need to turn waste newspaper and other light paper products into small burnable briquettes. This helps to turn waste in to a usable fuel source, and also allows the paper to burn much longer and more efficiently than just burning the unprocessed paper.
Keywords 3D printing, recycle, newspaper, briquets, fire, camping
Uses development, energy
Authors Alec Bradley Stilwell
Status prototype
Made? Yes
Replicated? Was this project made independently by someone other than the authors and without their guidance? Yes
Countries of design United States
Estimated cost USD $ 9.13
Sustainable Development Goals SDG11 Sustainable cities and communities
SDG12 Responsible consumption and production
Instructions data
Manufacturing files https://www.thingiverse.com/thing:3261942
Documentation data
Language English
Manifest data
Language English
Updated 2020-06-04
Author Kathy Nativi
Author affiliation Appropedia
Author email info@appropedia.org

Hand Powered Newspaper Briquet Maker[edit | edit source]

Project developed by ABStilwell & Molson


Abstract[edit | edit source]

The need was expressed for a device in which could turn waste newspaper and other light paper products into small burnable briquettes. This helps to turn waste in to a usable fuel source, and also allows the paper to burn much longer and more efficiently than just burning the unprocessed paper.

Final Maker with Briquettes.jpg

Bill of Materials[edit | edit source]

BOM -- Materials needed: are both 3D printed and items picked up at the local hardware store

  1. The base, lower plate and upper crushing plate are all 3D printed and can be found on the following link
    1. Thingiverse Link to Files
    2. Youmagine link coming soon!
  2. The steel rod was purchased at the local hardware store, can be replaced with alternative source that can fit in 3/8 inch holes.
  3. The wood handles were made from scrap wood found in the garage, and held together using 8 woods screw.

Tools needed for fabrication of the OSAT[edit | edit source]

  1. MOST Delta RepRap or similar RepRap 3-D printer
  2. Wood/Metal Saw
  3. Drill or Screwdriver
  4. Tape measure

Skills and Knowledge Necessary to Make the OSAT[edit | edit source]

  • Basic Woodworking Skills

Technical Specifications and Assembly Instructions[edit | edit source]

The handles were made of 1x4 I had laying around and ripped it to the following dimensions. You need to cut 4 pieces at 1x.75x12 inches long. On one end drill a 3/8 inch hole centered 1 inch away from the end. For the ends of the handle one is 4.25 inches long and the second is 5.75 inches long, both are 1x1.5 inches. Using 8-1.25 inch flat top screws anchor the tops to the handle.

The handles can be made out of any type of wood or alternate material that is approximately 12 inches long and can have a hole drilled into it to fit over the rod. Same goes for the Steel rod, you can replace it with anything that will fit inside a 3/8 inch hole and handle the forces from the handles being pushed down.

The assembly pictures show much longer rods than you need for the setup, you only 6 inches in length per rod.

Print Time Estimate - 14 to 16 hours dependent on printer speed and infill settings. Assembly time is approximately 30 minutes.

First Combo.PNG
Simple arrow.PNG
Second Combo.PNG
Simple arrow.PNG
Third Combo.PNG

Common Problems and Solutions[edit | edit source]

  • Be sure to not push too hard when the arms are bottomed out. This will cause the plastic to break.

Cost savings[edit | edit source]

1. Estimated Total Cost - $9.13

    Plastic - $6.13
    Screws - $0.50
    Wood - $1.00
    Metal Rod - $2.50

2. Commercial Equivalent - https://www.amazon.com/Bits-Pieces-Newspaper-Maker-Heavy-Measures/dp/B00TR0Z3X8/ref=sr_1_2?ie=UTF8&qid=1544033817&sr=8-2&keywords=newspaper+briquette+maker

3. $ Savings=$25.85 or 74%
