Garden Hose Splitter
Printed splitter.jpg
Description This OSAT is a garden hose splitter that can be used to split water streams from a common garden hose nozel. This splitter can be customized to any desired size, and can be paired with multiples of itself to further increase splitage.
Keywords 3D printing, gardening, tool heads, hose splitter
Uses agriculture, industry
Authors Stuart Larsen
Status prototype
Made? Yes
Replicated? Was this project made independently by someone other than the authors and without their guidance? No
Countries of design United States
Affiliations MTU
MOST
Materials plastic
Estimated cost USD $ 8.99
Sustainable Development Goals SDG08 Decent work and economic growth
SDG11 Sustainable cities and communities
SDG12 Responsible consumption and production
Instructions data
Manufacturing files https://www.thingiverse.com/thing:577610
Documentation data
Language English
Manifest data
Language English
Updated 2020-06-04
Author Kathy Nativi
Author affiliation Appropedia
Author email info@appropedia.org

OSAT Garden Hose Splitter[edit | edit source]

Project developed by Stuart Larsen (talk) 17:20, 02 December 2014 (PST)


Abstract[edit | edit source]

Water is one of the most important aspects of life all over the world, arguably the most important. So it is critical to have a robust infrastructure that can handle the demands of water, whether they be for survival, or agriculture or it's million of other uses.

So for this project I build a simple garden hose splitter. [1]

  1. This OSAT is a garden hose splitter that can be used to split water streams from a common garden hose nozel. [1]. This splitter can be customized to any desired size, and can be paired with multiples of itself to further increase splitage.
Printed splitter.jpg

Bill of Materials[edit | edit source]

  1. PLA/ABS
  2. Garden hoses
  3. Water seal/ moldable plastic
    1. Source files and stl files can be found here: http://www.thingiverse.com/thing:577610

Tools needed for fabrication of the OSAT[edit | edit source]

  1. MOST Delta RepRap or similar RepRap 3-D printer
  2. Water seal material

Skills and Knowledge Necessary to Make the Splitter[edit | edit source]

  • No special skills necessary, just use of a 3D printer.

Technical Specifications and Assembly Instructions[edit | edit source]

  1. Download part off thingiverse.
  2. Modify .scad file to use your hose type (GHS or BSP)
    1. US: "garden hose thread", which is 3/4" straight thread and a pitch of 11.5 TPI (male part has an outer diameter of 1 1⁄16 inches (26.99 mm)) and is used for 1/2", 5/8", and 3/4" hoses
    2. Non-US: Outside the United States, the more common BSP standard is used, which is 3/4" and 14 TPI (male part OD is 26.441 mm or 1.04 in)
  3. Slice file using your favorite slicer.
  4. Print part
  5. Apply tape or adhesive material to threading to create good connection

It takes about two and a half hours to print if using 50% infill. Cura also said it'd take about 59 grams of plastic to complete. So if you say a kilogram of plastic is $25, the print cost about $1.45.

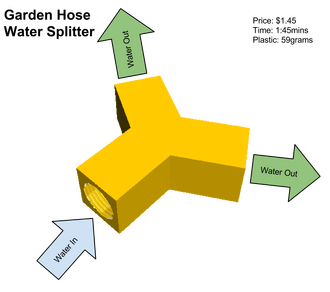

Water hose splitter.png

Common Problems and Solutions[edit | edit source]

Make sure you check what sort of hose you'll be using. If you're in the US it is most likely a GHS, outside of the us it is BSP.


Cost savings[edit | edit source]

The cheapest I found was 8.99. Although it also had valves. But chances are you can get around not having valves.

So cost saving is like 6.50 per unit. That's a 620% saving!

References[edit | edit source]

[2]

  1. web page: Appropedia Garden Hose Nozel Main Page, Available: https://www.appropedia.org/Garden_Hose_Splitter
