Multimeter Negative Probe Holder
Fgaiken probeholder.jpg
Description This product is complete and it functions as a negative probe holder.
Keywords 3D printing, negative probe holder, multimeter, circuit measurements
Uses energy, industry, education
Authors Fred Aiken
Status Prototype
Made? Yes
Replicated? Was this project made independently by someone other than the authors and without their guidance? No
Countries of design United States
Affiliations Category:MTU
Category:MOST
Materials Plastic
Sustainable Development Goals SDG08 Decent work and economic growth
Documentation data
Language English
Manifest data
Language English
Updated 2020-06-04
Author Kathy Nativi
Author affiliation Appropedia
Author email info@appropedia.org

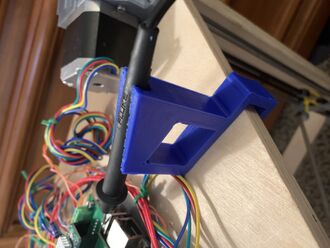

This is a picture of the tool printed and attached to the 3D printer.

This tool is used to hold the negative probe when reading voltages on motor control boards for the Athena2 3D printer. It could be modified to fit another printer setup. The model was created using FreeCAD.

Understanding the market[edit | edit source]

This product is complete and it functions as a negative probe holder. A video of it functioning can be found in the link below:

https://www.youtube.com/watch?v=eBmED1PZYD0&feature=youtu.be

Project goals[edit | edit source]

  1. Item should hold the negative probe so that two hands are free to measure motor control board voltages.

Design[edit | edit source]

FreeCAD, STL and gcode files are attached:

https://www.myminifactory.com/object/3d-print-athena-2-multimeter-negative-probe-holder-104960


3-D Printable Parts[edit | edit source]

The entire tool is 3D printable.
