Vortexer Mixer[edit | edit source]

Project developed by Bharath Sadashivaiah (talk)

Abstract[edit | edit source]

Vorderer mixer is ideal for mixing chemicals. It agitates the the liquid mixing it well. At slow speeds it can be used to agitate blood in test tubes so that they don't clog. This reduces the use of anticoagulants like glycerin.

Vortexing action provides vigorous mixing

  1. Ideal for mixing chemicals in laboratories.
  2. Variable speed and direction.
  3. Safe for cold room use

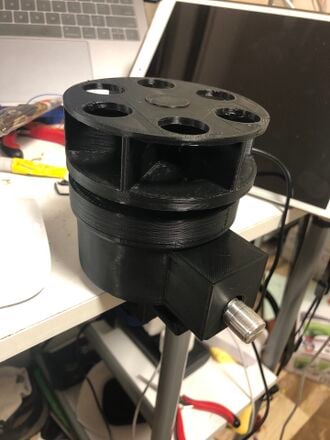

Vortexer Mixer
Vortexer Mixer

Materials Needed[edit | edit source]

  1. PWM controller
  2. 12 V dc motor : 1
  3. 3 level switch
  4. 3D printer
  5. DC female pin

Items to 3D Print[edit | edit source]

All STL and scad files are available here

  1. base
  2. lid
  3. quick remove gear fitting
  4. test tube holder
  5. Bolt

Instructions[edit | edit source]

  1. Print all the parts mentioned above.
  2. fit the quick remove gear into the test tube holder.
  3. For the base, Insert the motor first and draw the wires out from the motor from the designated hole provided at the bottom of the base.
  4. Inset the PWN controller with the knob off and reattach the knob from outside.
  5. Insert the switch into place from outside and clip it into place. It should fit into place snuggly.
  6. connect the switch to the PWM control.
  7. Connect the input from the dc pin and output to the DC motor.
  8. Insert the DC pin from inside fit it so that it is snug.
  9. Thread the lid close and place the test tube holder on.
  10. Switch On and regulate the motor to desired speed.

Cost[edit | edit source]

  1. Filament - Approx $6
  2. PWM controller with switch $8
  3. Motor : $12
  4. Batter or adapter : $6

Total cost : $32

Working Prototype[edit | edit source]


Commercial equivalent[edit | edit source]

The commercial equivalent costs about $300 and can be found here. The 3d printed model has a screw mechanism and is used to tighten itself to a workbench/table. whereas commercial models use a heavy stone to keep them in place while rotating.
