Rain Water Bottler[edit]

Project developed by [jfhicks]
Status
This OSAT has been prototyped.

You can help Appropedia by contributing to the next step in this OSAT's status.

Abstract[edit]

  1. This device collects rain water in a water bottle or any container that has standard bottle threads. It includes a purge container that collects the initial dirty rain water. The reason this water is dirty is due to the sediment that collects on a roof between rain cycles. Once the purge container is filled a ball floats to the top and closes of this container and the clean rain water is diverted into the water bottle.

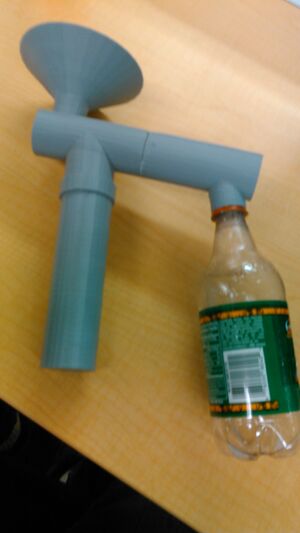

  1. Picture of Rain Water Collector
    Rain water collector.jpg

Bill of Materials[edit]

  1. All compents are 3D printable but glue is needed to secure the purge main to the bottle collector and a container with standard bottle thread is need to collect clean water.
  2. The file used for the bottle neck threads and funnel were designed by laird can be found here [1]
    1. Image of Parts
      Water Bottle Filler parts.jpg
    2. Water Collector Purge scadWater collector purge.scad
    3. Water Collector Purge stlWater Collector Purge .stl
    4. Water Purge Pipe SCADFile:Purge pipe.scad
    5. Water Purge Pipe STL File:Purge pipe.stl
    6. ScrewBall Desigend by JamieLaing and must be scaled to .55. link to source [2]
    7. Water collector filler.scad File:Water collector filler.scad
    8. Water collector filler.stl File:Water collector filler.stl
    9. Water collector funnel.scad File:Water collector funnel.scad
    10. Water collector funnel.stl File:Water collector funnel.stl

Tools needed for fabrication of the OSAT[edit]

  1. MOST Delta RepRap or similar RepRap 3-D printer
  2. Liquid glue ex: Super Glue or 5 Min Epoxy

Skills and Knowledge Necessary to Make the OSAT[edit]

  • Basic 3D printer knowledge

Technical Specifications and Assembly Instructions[edit]

 To construct the rain water collector
    1. Print out the following parts using supports
    1. Then you have to scale the ScrewBall by .55 in your slicer ex. Cura
    1. Insert the Water Collector Purge Part into the Water Collector Filler with a bead of liquid glue on the connector
    2. Screw the ball together
    3. Optional: Add a bead of glue around ball seam to insure ball is water tight
    4. Place the ball inside the purge pipe
    5. Place the purge pipe over the open pipe on the Water Collector Purge part
    6. Insert the Water Collector Funnel in the open hole on the Water Collector Purge part
    7. Screw Water bottle into the final pipe on the Water Collector Filler


  1. 15 Hrs
  2. Under 5 mins


Cost savings[edit]

  • If your solution is not a low cost one then it is not really appropriate.
  1. Estimate your costs
  2. Find a commercial equivalent
  3. Calculate $ savings and % savings

Components[edit]

    1. Water Collector Purge scadWater collector purge.scad
    2. Water Collector Purge stlWater Collector Purge .stl
    3. Water Purge Pipe SCADFile:Purge pipe.scad
    4. Water Purge Pipe STL File:Purge pipe.stl
    5. ScrewBall Desigend by JamieLaing and must be scaled to .55. link to source [4]
    6. Water collector filler.scad File:Water collector filler.scad
    7. Water collector filler.stl File:Water collector filler.stl
    8. Water collector funnel.scad File:Water collector funnel.scad
    9. Water collector funnel.stl File:Water collector funnel.stl
    1. Image of Parts
      Water Bottle Filler parts.jpg
