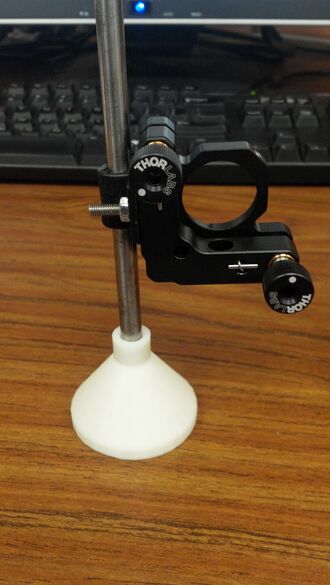

Fig 1: Open Source Mirror Holder
Project data
Authors Zhang C
Anzalone NC
Faria RP
Joshua M. Pearce
Status Designed
Prototyped
Verified
Verified by MOST
Export to Open Know How Manifest
Device data
Page data
Type Project, Device
Keywords osat, open source optics, 3d printing, open source hardware, mirror mount, metal rod, plastic base, mirror holder
SDGs Sustainable Development Goals SDG09 Industry innovation and infrastructure
Authors Xinxu
Joshua M. Pearce
Published 2012
License CC BY-SA 4.0
Affiliations MOST
MTU
Impact Number of views to this page. Views by admins and bots are not counted, and multiple views during the same session are counted as one. 858
Location data
Loading map...
Location Michigan, USA

Sunhusky.png Michigan Tech's Open Sustainability Technology Lab.

Contact Dr. Joshua Pearce now at Free Appropriate Sustainable Technology
MOST: Projects & Publications, Methods, Lit. reviews, People, Sponsors, News
Updates: Twitter, YouTube


This project is part of a collection on open source optics meant to radically reduce the cost of experimental optical equipment. See: Zhang C, Anzalone NC, Faria RP, Pearce JM (2013) Open-Source 3D-Printable Optics Equipment. PLoS ONE 8(3): e59840. doi:10.1371/journal.pone.0059840 open access

The mirror mount consists of three components: the metal rod, the plastic base, and the mirror holder. The mirror holder is not open source and is a commercial kinematic mirror mount from Thor Labs, the KM100. It is attached to the metal rod through an open source piece of hardware which is a piece that has a hole and set screw for the metal rod and a hole for a screw and washer to attach to the mirror holder. The wide plastic base gives the whole setup stability and flexible placement.

This optical component is not designed to be fitted into an optical breadboard or lab bench. The advantage of this is that there is no limit to placement for the lens holder within the optical system. However, the disadvantage is loss of stability associated with an optical lab bench.

The OpenSCAD and STLs can be found here: http://www.thingiverse.com/thing:28112

For stationary mirrors you can also use Open-source simple semiconductor sample holder.

For a completely printable mirror mount see: http://www.thingiverse.com/thing:30727

See Also: Zhang C, Anzalone NC, Faria RP, Pearce JM (2013) Open-Source 3D-Printable Optics Equipment. PLoS ONE 8(3): e59840. doi:10.1371/journal.pone.0059840 open access
