OSAT 3D Printed Hand Pump

From Appropedia
Jump to navigation Jump to search
MOST Delta filament as guide.JPG This page was part of an MTU course MSE4777 OA and MSE4777 OB/MSE5777/EE4777/EE5777: Open-source 3-D printing

Please leave comments using the discussion tab. The course runs in the Fall semester. It is not open edit.

Preliminary Student Design Warning
Note that this page is a preliminary student design and has not been vetted.
Care should be taken to read critically and weigh the evidence.
Remember non-tested and vetted designs should not be relied on, especially in matters of health and safety. Recommendations to improve this project follow:

  • screw thread bottom so it doesnt come off, same with handle
  • 3d print gasket - fit tighter to doesnt come off
  • threads for outlet so you can attach it to hose
  • print valves in flexible filament or gasket for better seals

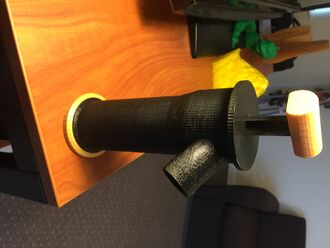

Hand Pump.JPG

3D Printed Hand Pump[edit]

Project developed by Yanibeeker (talk) 11:58, 4 December 2016 (PST)
This OSAT has been designed but not yet tested - use at own risk.
This OSAT has been prototyped.

You can help Appropedia by contributing to the next step in this OSAT's status.


The 3-D Printed Hand Pump is an OSAT that allows liquid to be pumped from a reservoir to a container. Hand pumps are needed in across the globe for the distribution of water, oil, and other liquids. Assembly of this device takes less than one minute with little effort. This design is most effective when used for pumping liquids from a bucket/barrel into a smaller container. However modifications and more components can be added to the design to make the pump applicable to more situations.

Pump Components
Pump Body
Bottom Valve
Piston with o-ring
Pump Handle

Bill of Materials[edit]

  1. PLA 1.75mm filament
  2. Glue stick to aid in bed adhesion
  3. O-ring (42mmID, 48mmOD, 3mm thickness)

Link to files: https://www.youmagine.com/designs/osat-3d-printable-hand-pump

Tools needed for fabrication of the OSAT[edit]

  1. MOST Delta RepRap or similar RepRap 3-D printer

Technical Specifications and Assembly Instructions[edit]

  1. Print the files in the orientation shown in the photograph below (20% infill). The layer height for the check valve components should be 0.1mm(may be increased to decrease printing time but performance will decrease). Other components may be printed with higher layer heights (0.2mm). PLA will suffice but swelling will occur over time. Use PP of PETG for minimal degradation.
  2. The once the parts are removed from the bed, twist the check valve cones to free them from any stringing that may have occurred during printing.
  3. Seat the o-ring on the piston as shown in the photograph below
  4. Feed the piston shaft though the top of the pump body.
  5. Press on the bottom check valve
  6. Press on the handle to the top of the piston shaft.
  7. To pump, submerge the bottom of pump body in liquid and begin to pump (~10 pumps may be necessary to fill the chamber)
Correct printing orientation
Check valve cones after being twisted free
O-ring fitted on piston

Time Estimates[edit]

  • Total Print Time: ~16 hrs
  • Total Assembly Time: ~1min

Common Problems and Solutions[edit]

  • Piston won't slide: Lubricate the pump body with water before attempting to slide piston in body. If this doesn't fix the issue sand some plastic off of the piston to decrease the total diameter.
  • O-ring slides off piston while pumping: Decrease the pumping speed and ensure that the force pumping is directed vertically.

Cost savings[edit]

  • Filament:~$4.00
  • O-ring: $0.48
  • Commercial equivalent hand pumps typically range from $20-$200
  • Assuming a commercial hand pump costs ~$60.00(rough median) the cost savings would be $55.52 or about 92%
