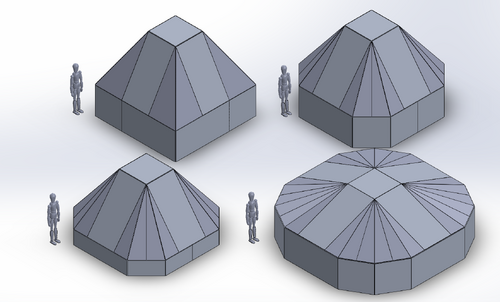

The domes are an extension of the Tent designs. Any Cone that has a number of sides divisible by 4 can be double stretched into a dome. These are unique from the Nearodesic domes since the follow the traditional yurt design characteristics. They can be stretched in both directions indefinitely, and lifted as high as you want same as the Basic Yurt designs.

Hexayurt project/Master List of Designs for more details
Technical Name H Name Sheets Build Score # People Sqft Ø (ft) Walls (ft) Height (ft)
Quadradome H14.5 14.5 7.10 4 144.00 17.17 4.00 10.93
Short Octadome H12.5 12.5 1.37 4 170.51 16.00 2.00 8.38
Octadome H14.5 14.5 1.55 4 170.51 16.00 4.00 10.38
Dodecadome H18.5 18.5 1.30 8 314.56 21.33 4.00 6.88
