Abstract[edit | edit source]

The Carbon Footprint Wheel was designed for Friends of the Dunes and is to be located at the Humboldt Coastal Nature Center. Team Duneheads was posed with the task of designing an interpretive display to enhance the educational and aesthetic value of the Living Learning trail. The Carbon Footprint Wheel became the solution chosen for the Living Learning Trail after research, alternative solutions to the problem were developed, and a process of deciding a final solution was completed. This page also includes a table of material and time costs devoted to the design of the Carbon Footprint Wheel, as well as a table of criteria and specifications upon which the final decision making process was based.

Background[edit | edit source]

The Carbon Footprint Wheel was designed during the Spring 2012 Engr205 Introduction to Design class at Cal Poly Humboldt. The project was intended to be a 12 week design project for Friends of the Dunes (FOTD). Team Duneheads was designated the task of designing an interpretive node for the Living Learning trail at the Humboldt Coastal Nature Center. Through meetings the the director of Friends of the Dunes, Carol Vander Meer, criteria and specifications for the design of the interpretive display were developed. After extensive research into topics related to project was complete, several topics of emphasis were decided upon. Based on these topics, the Duneheads developed several alternative solutions aimed to satisfy the criteria and specifications of the project. Using several methods, the final decision was completed and the Carbon Footprint Wheel was decided to be the most suitable solution for Friends of the Dunes. FOTD's desire for an educational tool related to the environmental impact of transportation modes used to travel to the Humboldt Coastal Nature Center was the inspiration for the development of the Carbon Footprint Wheel. The wheel also strives to pique their interest in the other information provided by the Living Learning Trail.

Problem Statement and Criteria[edit | edit source]

Problem Statement[edit | edit source]

The objective of the Carbon Footprint Wheel is to provoke visitors of the Humboldt Coastal Nature Center to consider the environmental impacts of various modes of transportation that are commonly used to travel to HCNC.

Criteria[edit | edit source]

Criteria Weight Description
Cost 6 Cost of all materials shouldn't exceed 400 dollars.
Longevity 10 The exhibit shall remain in proper working order for a minimum of four months (June-Sept.).
Aesthetics 9 The exhibit shall have a visual appeal to visitors of the Nature Center and follow the color scheme of the existing structure and dune landscape.
Safety 10 The exhibit shall be safe for all users under normal conditions and labeled with all appropriate warnings.
Educational Value 7 The exhibit shall attempt to give the user a better understanding of the values held by FOTD.
Simplicity 9 The exhibit shall convey information in clear and concise manner.
Site Appropriate 10 The exhibit shall only convey information relevant to FOTD.
Durability 10 The exhibit shall maintain structural integrity under normal use.

Description of Final Design[edit | edit source]

Components[edit | edit source]

Driftwood[edit | edit source]

The driftwood used in the project was found on Clam Beach. The curvature and even bend made it a perfect selection for our support post.

Wheel[edit | edit source]

The graphic design disc showing Carbon footprint was mounted on a 22 inch bicycle wheel. Spokes were removed from one side of the hub to make the outer rim and disc flush. The design was created using a combination of Adobe Image ready and Photoshop. The Duneheads designed the wheel to compliment the natural aesthetic of the dunes. Colors were chosen to correspond with the various carbon footprints and with the site's surroundings. The friends of the dunes logo's are printed on the front cover.

Costs[edit | edit source]

Design cost in hours

Design Cost[edit | edit source]

Included is a graph showing the amount of hours put into each individual part of the project.

Implementation Cost[edit | edit source]

Materials cost table
Material Quantity Our Cost Subtotal Retail Cost Subtotal
Bike Wheel 1 Donated $50.00
5' Driftwood 1 Donated $0.00
Wood Stain 1 Donated $12.00
10" Lag bolt 1 $3.59 $3.59
18 " 10-32 All-Thread 1 $2.15 $2.15
Graphic Prints 2 $60.00 $60.00
Misc. Nuts 7 $2.31 $2.31
Misc. Washers 11 $2.75 $2.75
Plexiglass 1 $25.00 $125.00
Sandpaper 3 Donated $1.50
Table Base 1 Donated $10.00
Total: $95.80 $269.30

Maintenance Cost[edit | edit source]

Maintenance of the Carbon Footprint Wheel is illustrated in the table below, in number of hours per month.

Maintenance cost table
Maintenance Task Frequency Time (hours)
Inspect structure of sign to make sure the ground is holding and the signage isn't damaged. Weekly 0.25
Inspect and oil chains and center rotator. Monthly 0.25
Inspect bike tires. Monthly 0.25
Monthly Total: 1.50

Results[edit | edit source]

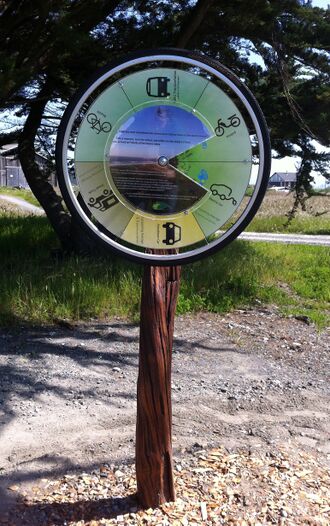

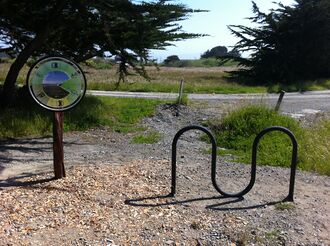

The wheel at FOTD

The final product yielded a sturdy structure that was aesthetically pleasing, of high quality, and attractive to people.

How to Build[edit | edit source]

Instructions on how to build can be found at Carbon Footprint Wheel Instructions

References[edit | edit source]

Carbon Footprint Wheel Final Document
