Cosmos in the Stacks is a particular list of projects from the Cal Poly Humboldt Library given to the students of Engineering 205 at Cal Poly Humboldt. One of the semester long projects was taken up by four mechanical engineering students in Spring 2025. A portable vacuum table to secure maps to a table was needed for the Library's special collections. They needed to digitize all of the maps they had in storage over the summer, and Multimedia Mechanics took the challenge.

The Portable Map Vacuum is a project for Cal Poly Humboldt's Special collections, located on the 3rd floor of the Cal Poly Humboldt Library. The goal of the table is to allow the members of Special Collections and any student volunteers to easily take photos of their map collection by flattening out their maps via suction from the table. They aim to do so in the Summer of 2025, and are requesting our help to do so.

We were motivated to do this assignment because it was more straight forward than the other cosmos in the stacks assignments that were more of educational and very open ended.

The objective of this project is to create a method for the Cal Poly Humboldt Library to effectively and efficiently secure their maps for imaging and digitization.

Unlike many of the other Cosmos in the Stacks projects the Vacuum table isn't meant to be informative piece and is instead meant to be a tool that is easy to use and won't need to be replaced any time soon.

Criteria	Description	Weight (1-10)
Cost	The total price for all materials used, which is not to exceed the maximum budget.	8
Strength	The strength of the suction of the project used to secure the maps in place.	10
Noise	The noise produced from the project while it is and is not in use.	6
Aesthetics	The look and feel of the project.	4
Ease of Use	The ability for students and staff members of Special Collections to use the device without difficulty or misunderstanding.	7
Longevity	The device will be used a lot in the summer so it must be long lasting and parts should be quick and easy to replace if something does go wrong or break.	8
Portability	The ability for the project to be transported around with as little difficulty as possible.	7
Scale Adaptability	The ability for the project to adapt to securing different sizes of maps properly.	7

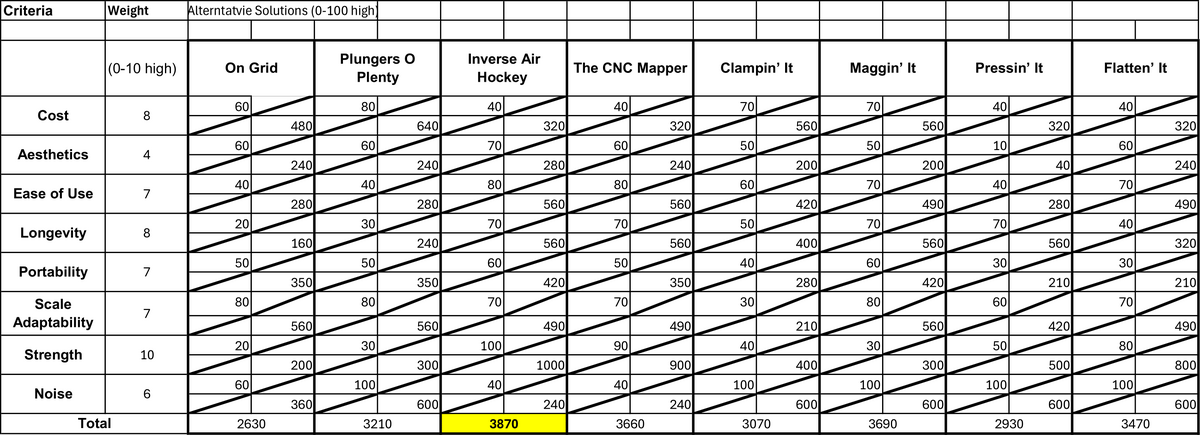

These criteria were used in a Delphi Matrix to help the group come to a conclusion on which design to go with. The chosen solution was the inverse air hockey table.

Our criteria led us to selecting an idea for an inverse air hockey table design for the table. This section will contain multiple parts of our prototyping process for this idea, from drawings, to cardboard, to CAD designs.

• Prototype Gallery
•

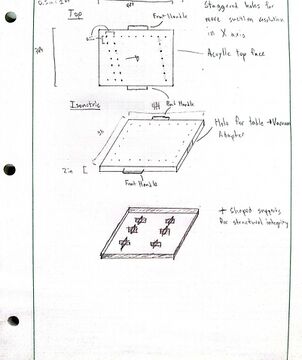

  Early Drawing of a Table Design
•

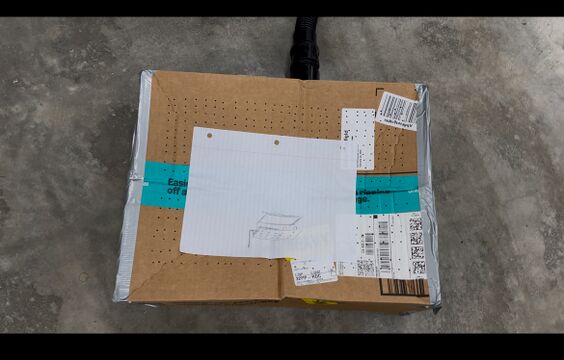

  The first prototype of the vacuum table.
•

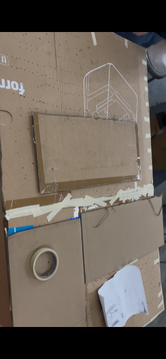

  A Picture of the Second Prototype
•
  A CADD Model of a Prototype for the Project

During our prototyping process, we learned of a couple critical problems we had to solve. One of these was the problem of vacuum pressure escaping the main chamber due to poor sealing. We then decided for the final product we would seal all of the major cracks in the assembly with Caulk, to prevent the leakage of vacuum.

A second issue we discovered when making the large scale prototype was that the larger material would warp in toward the center of the assembly. To solve this problem we needed to put supports in the table to hold up the peg board and prevent permanent bending damage.

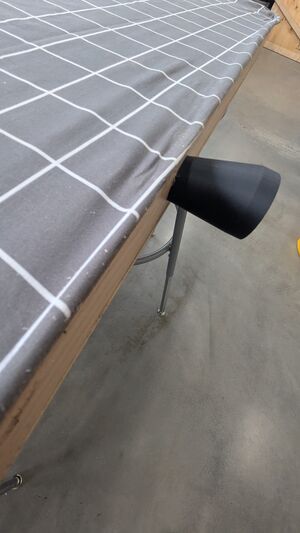

The inverse air hockey design holds the maps flat to the table from the suction through the holes on the top face of the table. The suction is created from a shop vacuum attached to the side of the table through an adapter. The table's face is 4'x4' to accommodate for large maps, and is 2" deep to allow the vacuum to have a chamber to connect to in order to suck the air through the holes. It also features handles on its side to allow for portability.

A very complete description of how the final project is built. This large section should have lots of pictures. Use the Help:Images#Galleries and probably Template:Steps (e.g. Barrel O' Fun Worm Bin Instructions).

Construction began with coating the purchased 4'x4' sheets of pegboard and plywood in a polycrylic finish. This is done to limit Volatile Organic Compounds (VOCs) from emitting from the materials, which can damage the maps. Between each coat, we waited at least 2 hours for the clear coat to set. Then, the pieces were sanded, and the process was repeated. We did this process 3 times. While this was happening, two of the 1" x 6" x 4' oak boards are split into two 1" x 2" x 4' boards to make 4 boards total. These are later used as the sides of the table. Two of these boards are then shortened by 1" on each end to accommodate for the width of the other sides, allowing them to make a perfect 4'x4' box. One board is then engraved with the names of the group, as requested by the client. After this, the side boards are all coated with the polycrylic finish once, in the same process as used before. Another side board then has a hole drilled into in, allowing for the 3D printed vacuum adapter to be fitted into. 9 2" tall pieces are cut from the excess oak and are glued down to the inside face of the plywood for supports inside of the box. Once this is all done, the sides are put together to create the 4'x4' square shape, with the pegboard screwed on top and the plywood screwed on bottom. The excess wood from the other oak board is then cut and fashioned into handles, attached by screws on either side. Finally, all of the cracks are sealed with caulk to limit air leakage. The holes in the pegboard are too big for the vacuum, so they are covered with tape and smaller holes are poked into that tape where the bigger holes used to be. This allows for better suction. A fabric sheet is then placed over top and secured to the table to cover the tape and provide safety for the maps.

Something to add when product is finished.

Item	Amount	Cost per unit	Total
Alexandria Moulding 1 in. X 6 in. W X 4 ft. L Oak Board #2/BTR Premium Grade — Get at [1]	3	USD 28.99	USD 86.97
Alexandria Moulding 4 ft. W X 4 ft. L X 1/4 in. Plywood — [2]	1	USD 39.99	USD 39.99
Alexandria Moulding 3/16 in. X 48 in. W X 4 ft. L Medium Fiberboard (MDF) Peg Board — [3]	1	USD 25.99	USD 25.99
Minwax Polycrylic Satin Crystal Clear Water-Based Polyurethane 1 qt — [4]	1	USD 27.99	USD 27.99
GE Advanced Clear Silicone 2 Kitchen and Bath Caulk Sealant 2.8 oz — [5]	1	USD 9.59	USD 9.59
DEWALT 6 Gallon STEALTHSONIC Wet Dry Shop Vac, Powerful Suction & Portable Shop Vacuum — Vacuum was donated by the library for our use, [6]	1	USD 0.00	USD 0.00
Grand total			USD 190.53EUR 163.86 <br />GBP 139.09 <br />CAD 236.26 <br />MXN 3,972.55 <br />INR 14,261.17 <br />

Operation of the table is simple, and has few steps for use.

The maintenance of the map vacuum table is fairly simple. There is little happening with the table itself, as most of the moving parts are within the connected vacuum. Ensuring the vacuum is clean and properly stored will help with the longevity of the system. Safe handling of the table itself will also assist in keeping it in good conditions.

• Handle the table with care
• Store the vacuum properly

This is the schedule for the map vacuum table.

Daily

• Check vacuum is snug in the adapter
• Move table to the desired location

Weekly

• Ensure vacuum is empty
• a weekly task

Monthly

• Reseal any cracks with caulk

Yearly

• Ensure table has no major air leakage
• Check on tape to ensure it does not need to be changed out

Every 5 or so years

• If clear finish becomes too old, reapply new coat to outside areas, and wait a day before using

The project works as intended and secures maps flat to the table surface for digitization.

The Multimedia Mechanics are satisfied with the results we have gotten so far, and are looking forward to seeing how Special Collections enjoys their new toy for map digitization.

The main lessons learned had to deal with the process of researching. Finding materials that align with antique map safety can be difficult within a smaller price range. Finding a way to get the holes in the table was a problem too, so research leading us to pegboard, a material with holes in it already, really sped up the process.

Because of the tape on the table being able to degrade over time, it may need to be changed out as time passes. In the meantime, the team will be thinking of new, longer lasting ways to choke the holes down on the pegboard.

This is a list of potential problems with ways to fix them.

Problem	Suggestion
Cracked caulk	Reseal with new caulk
Insufficient suction	Cover up unused holes with map safe material
Air leak	Seal with caulk
Tape Degredation	Replace with new tape and poke new holes

Members of the Spring 2025 Semester Group, The Multimedia Mechanics:

• Gil Mossburg
• Everett Krebs
• Devon Beton
• Leonardo Castro
