Cast Iron Mold Pan

From Appropedia
Jump to navigation Jump to search
MOST Delta filament as guide.JPG This page was part of an MTU course MSE4777 OA and MSE4777 OB/MSE5777/EE4777/EE5777: Open-source 3-D printing

Please leave comments using the discussion tab. The course runs in the Fall semester. It is not open edit.


Cast Iron Pan Mold[edit]

Project developed by [Nick Balavich ]

Abstract[edit]

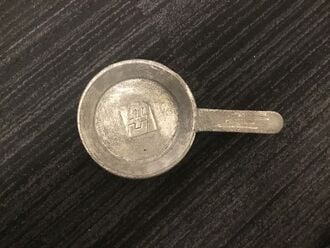

This 3D printed pan is the beginnig of your own cast iron pan at home. Foundries use 3D printed model to begin prototype molds to ensure that molten metal fills and create the specific casts that they desire.


Skills and Knowledge Necessary to Make the Cast Iron Pan[edit]

3D printing Capability, Metal Casting Experience, of Sand Molds and Gray Iron Chemistry, Grinding

Bill of Materials[edit]

All 3D models can be found here (STLs, OpenSource CAD models)

Note: Pieces were printed separately and glued together

Wood Glue - Estimated cost $4

Foundry Access - Sand Molding, Molten Metal (Gray Iron for Cast Iron Pan), Grinder for optimal smooth cooking surface

Some steps are a secret of the foundry! Good Luck molding! Be Safe!.
