Bow and Hand Drill Set
IMG 0409.JPEG
Description 3D printable design for bow and hand drill fire set
Keywords 3D printing, fire starter, bow and hand drill
Uses development, industry, hobbyism
Authors User:Jcvieau
Status prototype
Made? Yes
Replicated? Was this project made independently by someone other than the authors and without their guidance? No
Countries of design United States
Affiliations MTU
MOST
Materials Plastic
Estimated cost USD $ 8.93
Sustainable Development Goals SDG09 Industry innovation and infrastructure
Instructions data
Manufacturing files https://www.youmagine.com/designs/bow-and-hand-drill-set-prototype
Documentation data
Language English
Manifest data
Language English
Updated 2020-06-04
Author Kathy Nativi
Author affiliation Appropedia
Author email info@appropedia.org
  • as printed not practical
  • not clear PLA can handle this application
  • worse than natural materials
  • sub-optimal curves on upper design
  • no ergonomics

Bow and Hand Drill Set[edit | edit source]

Project developed by Joe Vieau [[[User:Jcvieau|Jcvieau]] (talk) 06:58, 6 December 2016 (PST)]


Abstract[edit | edit source]

Fire is a crucial element when surviving in the wilderness. It is a source of light, warmth, protection and give one the ability to prepare food or sanitize water. Most people take for granted these elementary necessities in their average day life. The Bow and hand drill set will provide the ability of a knowledgeable individual to create fire with relative ease. For ages the bow drill has produced fire for the avid rustic outdoors men, the misplace camper and the indigenous. The simple design has withstood the test of time and is now commercially sold. The premise of the success of the bow drill is based the three elements that are needed to create fire; a fuel source, oxygen and heat. The fuel source is the selected wood, accustom to the region of the world the user inhabits, the oxygen is supplied by the atmospheric conditions and the heat is generated by the friction between the two pieces of wood.

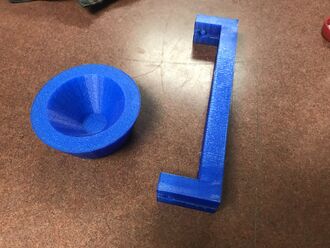

DISCLAIMER:This is a model prototype. The Bow component is undersized due to the capacity of the printer used.

IMG 0409.JPEG

Bill of Materials[edit | edit source]

  • PLA - Price: Varies ($25) - Source: Amazon
  • Paracord - Price: 5.99 - Source: Amazon
    - Alternative: Shoelaces, Rope, Wire
  • Wood - Price: Varies (Free) - Source: Tree


  • CAD/OpenScad File can be found at [1]

Tools needed for fabrication of the OSAT[edit | edit source]

  1. MOST Delta RepRap or similar RepRap 3-D printer
  2. Optional: Knife

Skills and Knowledge Necessary to Make the OSAT[edit | edit source]

  • 3D Modeling
  • Basic Coding
  • 3D Printing

Technical Specifications and Assembly Instructions[edit | edit source]

  1. Generate/Download 3D models
  2. Save STL files
  3. Print STL on 3D printer; BOW ~3.5 hours and Hand Guard ~3 hours
  4. Tie desired string to one end of the Bow
  5. Acquire two pieces of wood; One flat and one cylindercal
  6. Wrap 2-4 loops around cylindercal wood piece and tie string to opposite end of Bow; The string should tight enough to allow the cylinderical piece of wood to rotate
  7. Place cylinderical wood piece onto flat wood piece
  8. Place Hand Guard atop the cylinderical wood piece
  9. Apply downward force with Hand Guard while moving the Bow back and forth in the horizontal direction
  10. Continue untill smoke is produced

Common Problems and Solutions[edit | edit source]

  • Apply healthy amount of adhesive to glass to prevent the print from "curling"
  • Use appropriate setting to eliminate hot end clogging, resulting in poor prints
  • If string snaps, reduce tension

Cost savings[edit | edit source]

  • ~$2.95 (Bow and Hand Guard)
  • $5.99 (Paracord)
  • $0.00 (Wood)
  • Total $8.93
  • $35.21 Primitive Bow Drill Kit [2]
  • $ SAVINGS: $26.28
  • % SAVINGS: 74.64

References[edit | edit source]

Amazon.com [3]
