This project was first designed to upgrade a salt spray chamber on Michigan Technological Universities campus. The project has been expanded to convert all designs of the salt spay chamber to open source design.
Project goals[edit | edit source]
- Plan upgrades
- Execute Upgrades
- Make BOM and instructions for entire chamber
- Profit
Design[edit | edit source]
All design files are hosted on http://3dprint.nih.gov The links for each file are listed below.
-

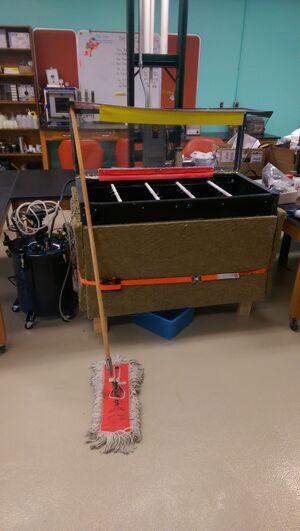

Before
-
After
-
Side View
-
Front View
-
In Use
-
Printed Hood Prop
-
Drain in Chamber
-
Secondary Angle
-
Nozzle with Clamp
-
Holder in Use
Costs[edit | edit source]
This table shows the cost savings for the current modifications to the chamber.
| Nozzle Clamp | Insulation Bracket | Coupon Rack | Hood Props | Chamber Drain | TOTAL | |
|---|---|---|---|---|---|---|
| Original Price | $5 | $30 | $400 for 4 | $60 | $10 | $505 |
| New Price | <<$1 | $16 for 16 | <<$1 each | $11.30 | <<$1 | $33 |
| Savings | $5 | $14 | $100 | $48.70 | $10 | $472 |
Conclusions[edit | edit source]
This salt spray chamber would save approximately $19,000 from our first rough estimates. Our current modifications now save approximately $475 assuming that just 4 sample racks are needed. These modifications can easily be put into most chambers with only small changes needed. This chamber has no loss in quality, and currently complies with all ASTM standards.
Project Members[edit | edit source]
Cleyton Cavallaro, Thomas Korejsza, Eli Gooding, Erik Bain, Mike Holt, Kyle Barie
