Non-electric Megaphone[edit | edit source]

Project developed by User:Alan Freeman

Add a status meter by copying the following templates (inside double curly brackets) into your page as you reach each step: status-design, status-prototype, status-deployed, status-model and status-verified....


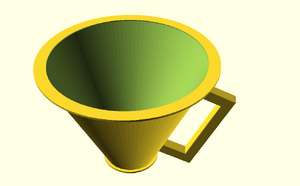

Abstract[edit | edit source]

This megaphone is OSAT appropriate because there are practical uses for such a device in developing countries. A few examples would be alerting others to danger, or speaking to a crowd of people, or cheering during a sports match. Given how much electronic megaphones cost, my megaphone design is a preferrable alternative. The only way electric megaphones could be worth purchasing in developing countries would be if they were as cheap or cheaper to produce and sell than the 3D design I made.


Bill of Materials[edit | edit source]

  1. 60g of filament
  2. Click here to access the SCAD and STL files used in the printer
  3. A Jellybox 3D printer (preferrable)

Tools needed for fabrication of the OSAT[edit | edit source]

  1. Jellybox or similar RepRap 3-D printer
  2. Roughly 60g of filament
  3. A computer or SD card for holding the STL file
  4. And that's it!

Skills and Knowledge Necessary to Make the OSAT[edit | edit source]

  • If you just want to print the megaphone as is from the STL file, you don't really need any skills besides knowing how to make the 3D printer print from an SD card or laptop
  • If you want to modify the STL file a little bit, you will need to know how to use Cura to make any minor modifications like scaling the model up or down
  • To modify the design file, you will need to have experience using OpenSCAD so you fully understand what every line of code is doing. A bit of programming experience would be very helpful for this!

Technical Specifications and Assembly Instructions[edit | edit source]

  1. You will definitely want to customize the STL file in Cura
  2. When you open the megaphone in Cura, go to the "Custom" tab of "Print Setup" to make necessary changes
  3. The print will take roughly 7 hours and 15 minutes
  4. If your printer is too small to print the 100% sized design (like mine was), scale it down in Cura until it fits on the printing bed

Common Problems and Solutions[edit | edit source]

  • A problem I ran into while printing the megaphone was getting the handle to print properly
    • By default, Cura won't print supports for the handle because it is not a low enough overhang angle
    • To fix this, go to the Support section, and look for the box labeled, "Support Overhang Angle" and change this value to 45
  • My most common problem with this print was cracking and gaps between layers of the megaphone and strings in the inside
    • What helped reduce this was slowing down the print speed and going under the Material section and changing the, "Retraction Minimum Travel" distance. Doing this will lower the chance of strings on the inside.

Cost savings[edit | edit source]

  • An electric megaphone can cost £80 ($114.37), as shown here
  • Printing one megaphone of my design requires only 60g of PLA 3D printer filament
  • The average price of 1kg of generic PLA filament is $25.[1]
  • 60g is only 6% of an order of filament; 6% of $25 is $1.50. Not only is this 94% cheaper, but also allows one to print many of these megaphones. Given 1,000g of filament (1kg), this would allow one to 16 megaphones before running low on filament.
