Low force snaps[edit]

Project developed by Jacob Gerdt
Status
This OSAT has been designed but not yet tested - use at own risk.
This OSAT has been prototyped.

You can help Appropedia by contributing to the next step in this OSAT's status.

Abstract[edit]

There is a pretty simple idea behind this OSAT project and concept is straight forward. A simple snap system that can be used in multiple ways. Something like a snap system might not seem like much but think of the idea when you don't have retail outlets close to you. Snaps can be used in a variety of ways; shirts, coats, satchels or bags, or any other system that would be desired to hold together. This simple idea of a snap system and the varities of of uses make this an aopporiate OSAT project. This snap system can be ultered to be size appropriate for the job it is needed for. This design is based off of a sew in style, has holes to be attached by sewing, and has a peg system similar to that of legos. This style is simple b ut effective and doesn't need large forces to manipulate them but strong enough to hold together.

Design recap

  1. Two peice stsyem utilizing male and female mating system
  2. Male peice has the peg system
  3. Female has the hole system
  4. Sew in style installation
  5. Easy to snap but snap holds strong
  6. Simple, clean, effective
Low force snaps

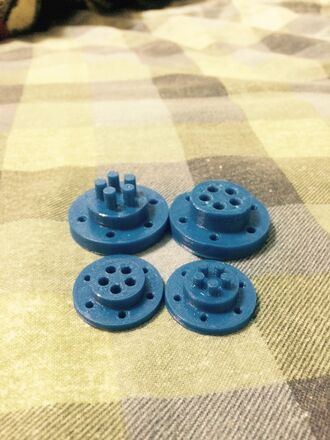

Comparison of two sizes
40mm snap
30mm snap

Bill of Materials[edit]

  1. 3-D printer
  2. OpenScad
  3. PLA filiment

Tools needed for fabrication of the OSAT[edit]

  1. MOST Delta RepRap or similar RepRap 3-D printer
  2. OpenScad or other Cad software http://www.openscad.org/

Skills and Knowledge Necessary to Make the OSAT[edit]

  • Basic knowledge of your 3-D printer and software used to make the model

Technical Specifications and Assembly Instructions[edit]

  1. Download the files listed above
  2. Prep your printer and load the .stl file and slice into a .gcode file
  3. Print snaps, clean, and get ready of installation
  4. Once the snap system is printed, attach to desired surface using any sort of string, yarn,thread, or any other material that can be used in a sewing fashion. Once the snaps are attached to their designated postions, snap together.
  • Print time will vary on size of snaps
   Original file: 21 minutes
   .75 Scale: 5 minutes
  • Assembly time we be the amount of time it takes to sew into place
   Approximatly 2 minutes


Common Problems and Solutions[edit]

Mating together

  • The peg length is important to ensure that the two paices stay mated together
  • The pegs on the male piece and the holes in the female piece need to have the correct allowance to they are easy enough to snap together but able to stay snapped together

Cost savings[edit]

Estimate your costs

  1. 40mm snap set
  • 3117mm of filament approximately 35 minutes
  • $0.28 per set
  1. 30mm snap set (30mm)
  • 1539mm of fillament approximately 18 minutes
  • $0.14 per set

Find a commercial equivalent 4 piece snaps 30mm sew on snaps $3.64/per set http://www.amazon.com/Dritz-Sew-On-Snaps-30-Mm-Black/dp/B0016ZZRYM/ref=pd_sim_ac_5?ie=UTF8&refRID=01DAP2P4NDWQ13XDGYE2

  • 40mm set = 92.31% savings
  • 30mm set = 96.15% savings
