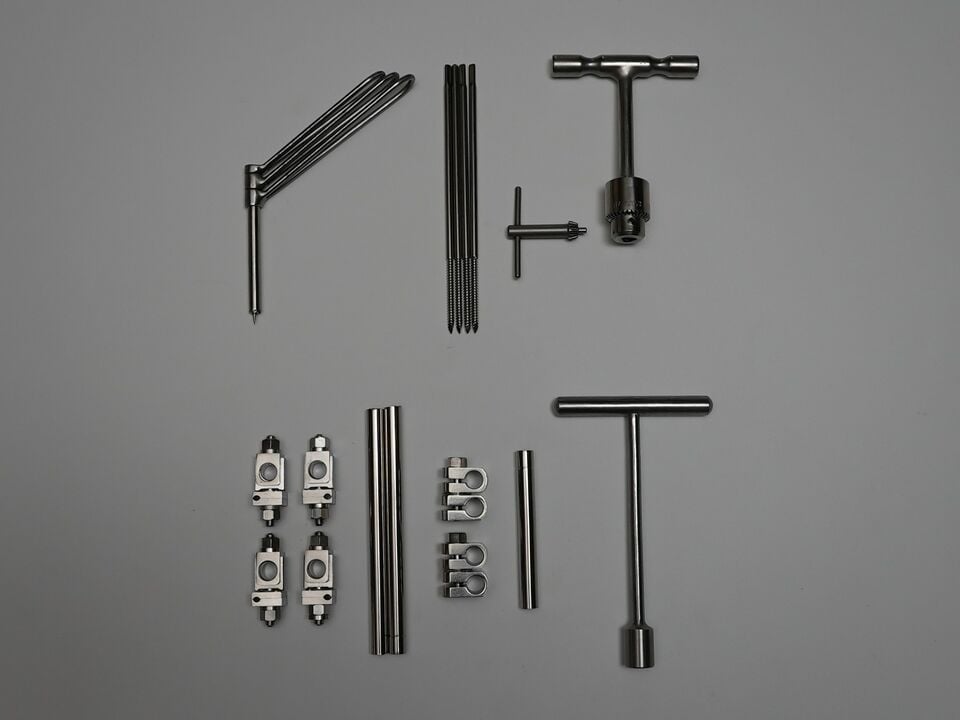

Modular External Fixation Hardware[edit | edit source]

Any locally available 4.0 or 5.0 mm diameter self-drilling Schanz Screws and compatible modular external fixator hardware, instruments, and surgical drill can be used for this skills training module.

Humeral Fracture Modular External Fixation Hardware List
# Item Quantity Reference Photo Function Reusable for Simulation Training
1 Any powered orthopedic surgical drill that is compatible with 4.0 or 5.0 mm diameter self-drilling Schanz screws 1
Orthopedic Surgical Drill.jpg
Drives Schanz Screw into fracture fragment, also referred to as "power drive" Yes
2 Chuck Key for Surgical Drill 1
Chuck Key for Surgical Drill.jpg
Used to tighten or loosen the drill chuck jaws over the Schanz screw Yes
3 Triple Drill Sleeve Assembly, 5.0 mm (consisting of an inner trochar, middle drill sleeve and outer cannula components) 1
Triple Drill Sleeve Assembly, 5.0 mm.jpg
Protects the soft tissue when drilling Schanz Screws; the triple drill sleeve assembly must be inserted before drilling to protect the soft tissue overlying the humerus in the real clinical scenario; the inner trochar is removed before drilling Yes
4 Self-Drilling Schanz Screws, 5.0 mm x 200 mm x 30 mm 4
Self-Drilling Schanz Screws, 5.0 mm x 200 mm x 30 mm.jpg
Inserted into fracture fragments, also referred to as "pins" and "half-pins" No; re-using Schanz Screws may cause mechanical failure of the 3D Printed Adult Humeral Bone Models
5 Jacobs Chuck T-Handle 1
Jacobs Chuck T-Handle.jpg
Allows for manual advancement of the Schanz Screw to the desired depth Yes
6 Chuck Key for Jacobs Chuck T-Handle 1
Chuck Key for Jacobs Chuck T-Handle.jpg
Used to tighten or loosen the Jacobs Chuck T-Handle chuck jaws over the Schanz screw Yes
7 Universal Clamp (Single Pin) 4
Universal Clamps (Single Pin).jpg
Combines pin-to-rod Yes
8 Connecting Rod, 11 mm x 150 mm 2
Connecting Rods, 11 mm x 150 mm.jpg
Links pins with clamps, available in several sizes Yes
9 Rod-to-Rod Connector 2
Rod-to-Rod Connectors.jpg
Combines rod-to-rod Yes
10 Connecting Rod, 11 mm x 100 mm 1
Connecting Rod, 11 mm x 100 mm.jpg
Links pins with clamps, available in several sizes Yes
11 11 mm Spanner with T Handle 1
11 mm Spanner with T Handle.jpg
Assists in final tightening of clamps Yes

4.0 mm diameter Schanz Screws may also be used for open humeral shaft fractures.
