Gloves and safety glasses[edit | edit source]

Dr. Frost requires everyone who is working in her lab wear gloves and safety glasses.

•

Lamps[edit | edit source]

In order to switch the lamps on, you must flip the green switch to on.

• Click start button
• Wait at least ten minutes for the machine to set up before starting program
• There should be a loud cranking noise, which means that the machine is working correctly.

•

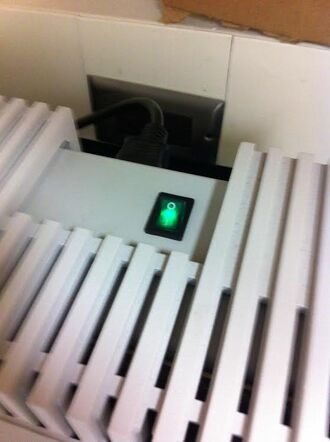

  UV spectroscopy unit switched to on

program details:

• The icon you want is called Scan-Lambda 35

•

  program icon

•

  when the program is first started, it will initialize

Cuvettes[edit | edit source]

•

  Reference is to the right, samples to the left

The reference cuvette is the one that is farthest away from the front of the machine.

• Located near the back of the UV chamber.

A beam of light will be split into two beams

• These beams will shine through your sample and a reference then compare the two wavelengths

The sample cuvette should be placed in the sample cuvette holder

• The sample should be taped as flat as possible against the cuvette's outer layer
  • do not tape sample to the inside of the cuvette

•

  Samples attached with tape to cuvette

Once you have the cuvettes and your samples prepared, autozero and start the machine.

•

  autozero the machine

•

  click "OK" to autozero

•

  click start button to start running samples

•

  click "OK"

Export[edit | edit source]

To export click file->export, then pick a destination file to export.

The most important detail about exporting your data is to switch the Data from "spectrum export file" to "XY Data (raw)"

•

  file->export

•

  browse for destination folder

•

  select which folder you want

•

  switch checked boxes

Finding the spectroscopy beam[edit | edit source]

In order to find out exactly where the UV spectrometer is shining its light, you have to set it to the green wavelength (anywhere from 577-492 nm). First click the change lambda button, then enter your desired wavelength into the input box, and finally use a slip of paper with the UV spectrometer open to find the few-nanometer-wide slit.

•

  click the set lamda button

•

  insert slip of paper with the overhead lights turned off.
