CCAT solar bug out box

From Appropedia
Jump to navigation Jump to search
About this device
Solar 1.jpg
Keywords humanitarian, solar
Uses Humanitarian, Natural disasters, Charging station
Variant of Bug-out bag
Authors Zelaya Ceja
Aspen Stepanek
Caleb
Jacob Gomez
Made? Yes
Published February 2020
Affiliations Campus Center for Appropriate Technology (CCAT)
License data
Hardware CC BY-SA 4.0
Instructions data
Translation data

This project was presented to the group as a learning opportunity for the community through CCAT (Campus Center of Appropriate Technology). The idea for this project was to create a solar-powered box that could charge laptops and phones and other small essential items during times when there is no power or in the event of a disaster. Our group was tasked with creating a reproducible small scale photovoltaic system. Our system was designed to be small enough so that it is easily traveled with and mobile but also large enough to power multiple devices. the system we designed utilized a deep cycle golf cart battery and an 80W repurposed solar panel. In addition to these components, there is the charge controller and inverter which can be found online at a reasonable price. Our team began the construction of this project by first prototyping the box by using a cardboard box and a mock solar panel to get an idea of the dimensions. After this, CCAT ordered the parts, and construction began. Construction was completed on May 3, 2020.

Background[edit | edit source]

The Campus Center for Appropriate Technology (CCAT) located at Humboldt State University in California received a donation of solar panels and requested that an engineering 305 team build a solar charging station that can be used for times when access to electricity becomes restricted and to educate the general public on how to build their own solar charging station. This was in response to the blackouts that swept through California in late 2019, leaving many people with limited access to a steady supply of electricity. In the future it is highly likely that these blackouts will continue to occur and grow progressively worse, therefore it would be beneficial for people to have some means by which to charge their basic necessities, such as their phones and computers. A simple, portable photovoltaic system would be an ideal solution to power outages.

Problem statement[edit | edit source]

People need access to a steady supply of electricity during times such as the blackouts, so the objective of our project is to create a simple solar charging station that will be able to provide a reliable source of electricity during power outages and can also be used to educate the general public on how to build their own solar charging station. Aptly named a solar bug out box, this charging station will be a simple, portable and easily replicable system. This bug out box will harness photovoltaic energy so that the users can charge various devices and possibly run appliances in times when our conventional electrical grid fails.

Literature Review[edit | edit source]

This is a review of the available literature pertinent to the a specific project.

Solar Power Basics[edit | edit source]

A simple photovoltaic(PV) system consists of one or more solar panels(a solar array), a charge controller and a battery or battery bank. While the sun hits the solar panels, those panels turn energy from the sunlight into direct current(DC) electricity which is then stored in the battery. The charge controller regulates the flow of electricity to and from the battery, preventing the electricity from flowing out of the battery back to the solar array as well as preventing overcharging of the battery. An inverter may be required to convert the electricity from DC to AC(Alternating Current) depending on what is being powered.[1] The amount of power produced by a PV system depends on the size, efficiency, and amount of light received by the solar panels.

Solar Power concerns[edit | edit source]

The biggest problem with solar power is the fact that it will not generate any electricity without sunlight. A PV system will produce minimal to no power during nights, cloudy days and in shaded areas. Solar energy may not be the right answer for an individuals energy needs if they are in an area with limited exposure to sunlight. Solar panels have limited efficiency as well, with the most efficient solar panel converting roughly 22% of energy from sunlight into usable energy. Most solar panels fall within a 16-20% efficiency range.[2]

Design efficiencies[edit | edit source]

When talking about solar panels more specifically past and future uses, design efficiencies of the panels themselves is an important factor to consider. It is said that panels today are becoming harder and harder to disassemble which could be bad if you would want to recycle them after their use. But this could also be a good thing if the user wanted to reuse the panels for a different project afterwards. Reusing panels would somewhat force “design implications” in that if more panels are reused, it would generate a response to design panels to last longer and be updated to allow for easy refurbishment or parts replacement.[3]

Partial Shading[edit | edit source]

Partial Shading and mismatch losses are also something to consider when thinking about solar panels. In an analysis it was found that in an area that has slightly higher shade than average area showed a performance reduction of about 22% due to shading. This shading can be from anything such as building all the way to trees. Of that 22%, 70% was from the actual shading while the remaining 30% was power loss because of mismatch of current and voltage. There are suggestions to help alleviate some of the loss but ultimately is going to come down to the system you are working with.[4]

Tilt Angles[edit | edit source]

The tilt angles of the solar panels is also something to consider. The angle of the tilt can affect the overall annual energy yield of the whole system. And has a lot of different parts or elements that influence it. These elements can include but are not limited to the latitude, “clear-ness index”, air conditions, and climate condition. Moreover, the annual optimum tilt angle is almost shifted by 10°with respect to the latitude of the location.[5]

Components of a Photovoltaic System[edit | edit source]

In depth information about the different components of a photovoltaic system and what we will use for our project.[6]

Solar Panels[edit | edit source]

Solar panels are composed of many individual cells called solar cells. Solar cells are composed of semiconductor materials which generate energy when light hits the cell, the sum of which is the total energy produced by the panel.[7] The ability of a solar panel to convert sunlight into usable energy is called its efficiency, which ranges from 15% to nearly 23%. It is also important to consider that sunlight is required to strike the solar cells in order for the solar panels to generate energy so optimal placing of the panels to receive as much sunlight as possible is crucial. Shade can decrease energy output by more than 50%.[8]

Charge Controller[edit | edit source]

Regulates electric current flowing through it. We used one to regulate electron current flowing into the battery from our panel.

Batteries[edit | edit source]

The battery is where all the unused energy generated from the solar panels is stored. Depending on the individuals energy needs, different sizes of batteries will be required. A larger PV system will require a battery with a higher storage capacity, or will require hooking up multiple batteries to the system creating a battery bank. A battery's capacity is the total amount of energy a battery can store, typically measured in kilowatt hours(kWh). Batteries also have a depth of discharge(DoD) which is the amount of energy that should be used so that some is left over, so that the battery is never fully drained.[9]

Battery Types (sourced and paraphrased from energysage.com)[10]

Lead acid

Lead acid batteries are a tested technology that has been used in off-grid energy systems for decades. Lower DoD (depth of discharge). Lower cost. This is the kind we used due to budget constraints in prototyping.

Lithium ion

The majority of new home energy storage technologies use some form of lithium ion chemical composition. Lighter, more compact, higher DoD, longer lifespan, but more expensive than lead acid.

Saltwater

Relatively new technology. No heavy metals; no complicated disposal, relying instead on saltwater electrolytes. Saltwater batteries are relatively untested compared to the other types, one company that makes solar batteries for home use (Aquion) filed for bankruptcy in 2017. A review and the schematics of the Aquion saltwater battery are found here.[11] BlueSky Energy has created their own saltwater battery circa 2019.[12]

Inverter[edit | edit source]

Converts DC voltage to AC voltage.

Load[edit | edit source]

The load for a system is the end use, the appliance or system that uses the power from the battery that was generated by the solar panels. The load determines the amount of energy required from the system and therefore dictates the size of the system needed. For example a 50 watt light bulb will require a significantly smaller PV system than an entire house.[13]

Designing interpretive materials[edit | edit source]

Interpretive materials for a solar powered bug out box should include a placard on how to wire a basic PV system using some sort of box/container as the body of the bug out box. This would include mounting the solar panel on top of the box, cutting or drilling a hole through the lid for the wiring to pass through and making sure that hole is sealed properly, and wiring the battery and charge controller. We want to keep the designs minimal for ease of use and convenience.[14]

Prototyping[edit | edit source]

From this prototype, our team learned that the box was too large to be easily portable, also another learning experience was given to us in the early stages of planning because our team originally thought that we could use car batteries instead of deep cycle batteries. We also learned that a charge controller is necessary to make a fully functioning system.

Cardboard Bugout Box side view
Top View of Our Prototype

Construction[edit | edit source]

When designing this system we wanted to ensure that the construction/build would be easy to replicate if someone wanted to do this on their own. With that said to start make sure you have all the necessary parts and that your parts are compatible with the system you want to build. In our case we designed for a 12 Volt system.

Start by cutting the male/female cigar plug adapters in half so that each part has either a male or female part with some of the wiring. It may look like one wire but it is not. There are actually two wires, one side is positive and the other will be negative. To find out which is which test with a voltmeter, to do this you will need to strip the ends of the cut in half wire (side note: do your best to try and not touch the exposed wire with your fingers when testing to allow for a more accurate reading).

On the back of the panel there should be a black box. You will need to open it to and test (with voltmeter) to find out which terminal is negative and which is positive. Once you have figured out which is which you can attach a female part of a cigar plug to the correct terminals. In our case the negative terminal was to the right and the positive was to the left. In figure 7 of the table below you can see how it should look when the cigar plug adapter is attached to the panel. Side note: It is very important that you connect the battery to the charge controller before you connect the panel to the charge controller. So once you have the cigar plug attached to the panel leave it alone and move on to the charge controller.

On the charge controller there are six terminals. Two (one positive and one negative) are for the panel, two (one positive and one negative) are for the battery, and two (one positive and one negative) are for the load, but for this project we will only be using the terminals for the panel and battery. To be able to connect the charge controller to the panel we are going to use the male part of a cigar plug adapter (see figure 3 in the table below). You will have to cut and strip the wire then test (with voltmeter) to see which is positive and negative. Then to attach to the actual charge controller all you have to do is loosen the screw for that terminal insert the wire and tighten the screw back in. Make sure that the parts of exposed wire cannot touch each other.

For the battery terminals take two wires and do the same. It is important to note that on the positive wire from the charge controller to the battery we have a fuse to protect the battery incase of overcharge you can see this in figure 5 of the table below. For the battery itself we have the negative side to the right and the positive to the left (see in figure 2 of the table below). In our case the red wire indicated positive and the black is negative. There will be four different wires hooked up to the battery, two on the negative and two for the positive. So from the charge controller you will have one wire connecting to the positive side of the battery with a fuse and the negative wire connecting to the negative side of the battery (again you can see this in figure 5). The other two wires come from a female part of a cigar plug adapter (see figure 6). You will have to agin test the wires from the adapter to find out which is positive and which is negative so you can hook them up to the battery.

After this the system will almost be all connected. From the female cigar plug attached to the battery you will be able to connect the inverter which already has a male cigar port attached to it (see figure 4).

So at this point you should have the charge controller connecting to a male cigar plug adapter and to the battery. From the battery there should be the wires from the charge controller with a fuse and the wires from the female cigar plug adapter. The inverter with the male part of a cigar plug will now be able to connect to the female part connecting to the battery. Lastly you can now go back and connect the female part of the solar panel to the male part connected to the charge controller. The system should now all be connected (see figure 8).

1
Front of solar panel engr 305 team bug eye.jpg
Fig 1: Front side of 100 Watt solar panel approximately 4 by 2 feet. This specific panel is currently putting out around 65 Watts.
2
Battery for ENGR 305 team bug eye.jpg
Fig 2: 12 Volt rechargeable sealed lead-acid battery. For our battery the positive side is to the right and the negative is to the left. From the positive side we have a positive red wire from a female adapter connected and the positive red wire with a fuse from the charge controller. On the negative side we have the negative black wires form the charge controller and female adapter.
3
Charge controller for ENGR 305 team bug eye.jpg
fig 3: charge controller designated for 12/24 Volt systems. A male part of a 12 Volt Cigar plug adapter is hooked up to it to allow connections to the panel and negative (black wire)and positive (red wire) to connect to the battery.
4

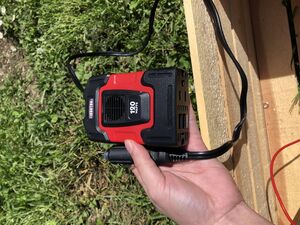

Inverter for ENGR 305 team bug eye.jpg
Fig 4: 120watt charge controller designed for 12v/24v systems. A male part of a 12 Volt Cigar plug adapter is hooked up to it.
5

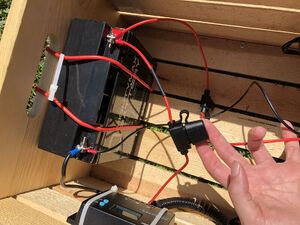

Fuses between battery and charge controller for ENGR305 team bug eye.jpg
Fig 5: fuse between battery and charge controller on the positive red wire.
6
Fuse connection to battery-inverter for ENGR305 team buy eye.jpg
Fig 6: fuse between battery and inverter with female part of a 12 Volt cigar plug adapter.
7
Back of solar panel for ENGR 305 team bug eye.jpg
Fig 7: Back of solar panel showing female cigar plug adapter attached to the panel. The black wire is the negative and is hooked up to the right side and the red wire is positive and is hooked up to the left side. Remember to figure this out you will need to test the terminals with a voltmeter.
8

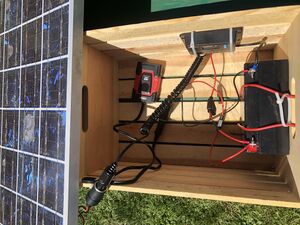

Solar system fully connected for ENGR305 team bug eye.jpg
Fig 8: This is our entire solar system all connected.

Weighted Criteria and Constraints[edit | edit source]

This criterion sets our group to a standard that lines up with the expectations of our client. This also helps us personally quantify our effectiveness and execution for the solar bugout box. The scale (1-10) represents the importance level of meeting the constraint of each listed criteria.

Criteria Constraints Weight (1-10)
Cost Within budget 8
Battery Life ≥2 years 2
Battery Capacity ≥4 hours of charge 7
Voltage ≥110 volts 9
Weather Resistance ≥plywood 8
Daily Usage ≥2 hours/day 5
Weight <100 pounds 3
Aesthetics Must be noticeable and appealing to use 6
Educational Aspect Must include an educational piece on construction. 8
Safety & Placement Must not interfere with traffic, but be convenient to use 6
Reproducibility The structure can be reproduced by following educational aspect. 4

Tentative Time Line[edit | edit source]

Project Started Completion
Plan Budget March 3 March 8
Prototypes March 3 March 8
Get Materials March 10 March 15
Build Wagon March 15 March 30
Wire solar panels April 6 April 21
Attach panels, batteries, controller, inverter to wagon April 20 May 3

Costs[edit | edit source]

CCAT gave us a $300 budget to complete this project. We needed less than half that to complete a base model, but more could be invested to scale up energy output or ease transportation. *Costs given do not include delivery.

Item Quantity Cost/unit ($) Total ($)
Ironton 120W Inverter (1 plug+2 USB) 1 $13.99 $13.99
12v 18amp hour lead acid battery 1 $36.99 $36.99
10A charge controller 1 $14.37 $14.37
12V socket adapters(we cut these in half) 3 $5.99 $17.97
3/4" x 60' industrial electrical tape 1 $1.19 $1.19
10 ft 12 gauge black+red PV wire 1 $11.99 $11.99
60 piece assorted fuses 1 $8.49 $8.49
3 Pack -12V Water-resistant Add-A-Circuit Blade Type Inline Fuse holder 1 $7.99 $7.99
Total Cost $112.98

Operation[edit | edit source]

CONNECT BATTERY TO CHARGE CONTROLLER AND THEN SOLAR PANEL TO CHARGE CONTROLLER.

Or stuff maybe explodes. Fortunately in our system, the battery is wired to the charge controller, so it will always be connected first.

To operate our system, plug the solar panel into the charge controller, the inverter into the battery, and the load into the inverter.

Maintenance[edit | edit source]

Replace blown fuses. When cleaning solar panels, use plain water. Soap leaves a residue dirt sticks to.

Schedule[edit | edit source]

Check connections before first use and after moving system.

Conclusion[edit | edit source]

Testing results[edit | edit source]

Our prototype worked! We can charge laptops, cell phones, and other electronics.

Discussion[edit | edit source]

Highly disappointed could not make toast. All components are realistically small enough to strap to back of panel for increased mobility.

Lessons learned[edit | edit source]

Car batteries are not suitable for pv systems. They're meant to stay near fully charged and give that starting jolt. Fuses are your friend. Connect the battery before the solar panel. Sizing a system to suit a need involves sizing almost every component.

Next steps[edit | edit source]

There's several directions this project could take. CCAT has enough donated solar panels to cover a building or host a workshop. HEIF may be interested in funding a solar powered community space. Multi panel power wagons could be built and used for events on sunny days and/or where outlets are not traditionally available. The city may find use for those power wagons to aid homeless camps.

Troubleshooting[edit | edit source]

If individual parts are damaged, see manufacturer's statement. Be careful with corroded batteries.

Problem Suggestion
Not working Check connections
Does not make toast Wail in agony.
Funny noise/ not working Check fuse

References[edit | edit source]
