Bamboo Joints for house
Bamboo joint 1.jpg
Description This is a Bamboo Joint model that can be used in building bamboo houses, rooms or any sort of suspended pavilions.
Keywords 3D printing, bamboo, joint, construction
Uses development
Authors Aditya Trifaley
Status prototype
Made? Yes
Replicated? Was this project made independently by someone other than the authors and without their guidance? No
Countries of design United States
Affiliations Category:MOST
Category:MTU
Materials Wood
Estimated cost USD $ 4.00
Sustainable Development Goals SDG09 Industry innovation and infrastructure
SDG11 Sustainable cities and communities
Documentation data
Language English
Manifest data
Language English
Updated 2020-06-04
Author Kathy Nativi
Author affiliation Appropedia
Author email info@appropedia.org


Title of the device or system[edit | edit source]

Project developed by Aditya Trifaley

Abstract[edit | edit source]

This is a Bamboo Joint model that can be used in building bamboo houses, rooms or any sort of suspended pavilions. One side of a Bamboo can be fixed in this joint and the other can be fixed to a different bamboo joint. This model can be modified for different sizes of bamboo and different angles and uses. This part is easy to modify, easy to print and costs less and can be used extensively for construction purposes.

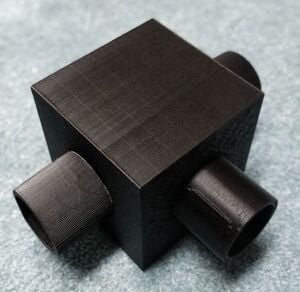

Bamboo joint 1.jpg

Bill of Materials[edit | edit source]

  1. 3-d printed Bamboo Joint
  2. Bamboo for construction.

OpenSCAD and STL files can be found here: Bamboo joint for building houses

Tools needed for fabrication of the OSAT[edit | edit source]

  1. MOST Delta RepRap or similar RepRap 3-D printer
  2. A File, only if needed to file the printed part.

Skills and Knowledge Necessary to Make the OSAT[edit | edit source]

  • Basic Open Source CAD skills
  • 3-D printing skills

Technical Specifications and Assembly Instructions[edit | edit source]

  1. Download the STL file from the link given in the Bill of Materials.
  2. Convert the STL to a gcode file using Cura .
  3. Print the file using Cura or any other related software.
  4. Once the part is printed, remove it from the bed.
  5. The part can directly be used for its purpose without any other finishing.
  6. Put one end of the bamboo in one of the holes of the printed part and the other end of it to a different bamboo joint/connector wherever required during construction.
  7. There are 3 such connections to this piece and so three different bamboos can be connected to the joint.
  8. The CAD and STL files are uploaded and can be easily modified according to the dimensions and angles as required for the construction.
  9. The print time is anywhere between 3-8 hours depending on the size of the joint and the print speed given and the assembly time is at the most 5 minutes.

Common Problems and Solutions[edit | edit source]

  • The only problem is that the hanging cylindrical holes on both sides need to be given support during printing or they may not print correctly.

Cost savings[edit | edit source]

  1. Cost of printing is not more than 4$.
  2. A commercial equivalent is not available.

References[edit | edit source]

  • Concept was inspired from this article. [1]
