TissueDB/Simulators/Bowel Anastomosis Simulator (Habti)
The Bowel Anastomosis Simulator (Habti) is a low-cost trainer for practising hand-sewn small-bowel anastomosis.[1] A 30 cm silicone small-bowel segment with a replicated mucosal surface is cast using a 3D-printed mould and held for suturing in a 3D-printed tabletop clamp called the maxSIMclamp+. A single mould can cast up to four bowel segments.
| Field | Details |
|---|---|
| Features and Basic Operation | A 30 cm silicone bowel segment provides an external wall and replicated mucosal surface for suturing practice. The segment is held between the upper and lower components of the maxSIMclamp+, which attaches to a tabletop or workbench. The development team selected Ecoflex 00-30 after testing silicone formulations of different hardness. Learners reported the simulator as useful for practising hand-sewn bowel anastomosis, while also identifying silicone recoil and tearing as areas for improvement. |
| Current Development Status | Face validity from junior-resident learner assessment (2021); a 2023 randomized trial found skill transfer to an anesthetized porcine bowel model, not validated for human surgery.[2] |
| Estimated Build Time and Cost | CA$35 for the first simulator (includes mould); CA$8 for each additional simulator using the same mould and clamp. Costs are in Canadian dollars (CAD), including local taxes, based on a manufacturing batch of 18 simulators. |
| Specialized Tools and Equipment | FDM 3D printer for fabrication of the reusable mould and maxSIMclamp+; the development team used an Ultimaker S5. The source used Autodesk Fusion 360 during digital model development. Standard suturing instruments are required to use the finished simulator. |
| Version | Version 1 |
| Development Team Contact Information | Co-developed by the maxSIMhealth laboratory at Ontario Tech University and the Department of Surgery / Surgical Oncology Service at Centre Hospitalier de l'Université de Montréal (CHUM), Canada. Lead author: Merieme Habti. Corresponding email reported in the 2023 study: merieme.habti@umontreal.ca. |
Tissues
| Tissue | Qty | Material | Cost | Notes |
|---|---|---|---|---|
| Small Intestine | 1 segment; approximately 30 cm long | Castable silicone | CA$8.00 | Approximately 177 g of Ecoflex 00-30 silicone is used per bowel segment. The mould reproduces a mucosal surface. The development team selected Shore 00-30 after testing different silicone hardnesses. Learners and clinicians considered the representation useful for bowel-anastomosis training, although the silicone had greater recoil than biological bowel and could tear during suturing. |
Structural Parts
| Part Name | Qty | Material | Cost | Notes |
|---|---|---|---|---|
| maxSIMclamp+ | 1 per user/station | PLA | CA$4.80 | 3D-printed tabletop clamp that holds the silicone bowel segment during suturing. It is a reusable station component rather than a bowel-tissue analogue. |
| Bowel mould | 1 | PLA | CA$21.60 | Reusable 3D-printed mould used to cast silicone bowel segments. |
Consumables
| Consumable | Quantity | Material | Approximate Cost | Notes |
|---|---|---|---|---|
| Silicone bowel material | Approximately 177 g per segment | Castable silicone | CA$8.00 | The source uses Ecoflex 00-30. The source identifies the silicone bowel as the consumable component of the simulator. It does not provide a reliable estimate of how many sutures or complete anastomoses one bowel segment can tolerate before replacement. |
Build Instructions
Digital files and provenance
Habti et al. (2021) states that the project digital files were released publicly. The current repository is:
The 10 September 2026 repository inspection found the bowel and clamp/mould STL assets, including the intestine, maxSIMclamp+ and mould components. The repository states that its digital assets are licensed under the Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International licence (CC BY-NC-SA 4.0).
The repository licence applies to the digital assets. The Habti et al. (2021) Cureus article itself is published under CC BY 4.0.
Phase 1: Print the reusable mould and clamp
- Obtain the development team's STL files from the public maxSIMhealth repository.
- Prepare the files for FDM 3D printing. The development team used an Ultimaker S5.
- Print the reusable bowel mould in PLA. The source reports approximately 720 g of PLA for one mould.
- Print the maxSIMclamp+ components in PLA. The source reports approximately 160 g of PLA for one clamp.
3D-printed bowel mold (720 g, reusable — produces up to 4 silicone bowel segments) and maxSIMclamp+ tabletop clamp (160 g). Printed on Ultimaker S5 using 3D-Fuel Pro PLA (white). The PLA is the mould that casts the bowel, not the bowel itself. See the simulator page for build detail and sources. [1]
Phase 2: Cast the silicone bowel
- Prepare Ecoflex 00-30 silicone according to the manufacturer's mixing instructions.
- Use approximately 177 g of silicone for one 30 cm bowel segment.
- Pour the mixed silicone into the 3D-printed bowel mould.
- Allow the silicone to cure at room temperature.
- Demould the silicone bowel segment after curing.
Timing note: Ecoflex 00-30 manufacturer data gives an approximately 4-hour cure time at room temperature. This is a material cure period only and is not used as the total simulator build time.
One reusable mould can produce up to four bowel segments.
Phase 3: Assemble the simulator

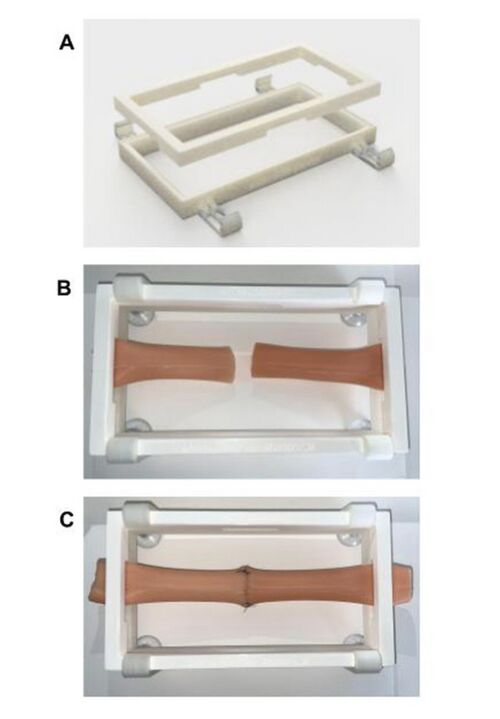

- Place the silicone bowel segment between the upper and lower components of the maxSIMclamp+.
- Secure the clamp assembly using its four latching-style clamps.
- Attach the maxSIMclamp+ to a tabletop or workbench.
- Position the bowel segment for hand-sewn anastomosis practice.
Habti et al. report that learners experienced inconsistent adhesion of the clamp's suction cups on some table surfaces.
Development-stage material variant
Habti et al. (2021) reports that the team was testing a version with power mesh fabric consisting of 80% nylon and 20% spandex embedded during silicone casting to reduce tearing. This was still under development at publication and is not presented as the baseline Version 1 construction.
Known limitations
- The silicone has greater recoil than biological bowel.
- Silicone tearing during suturing was identified as an area for improvement.
- The source did not establish how many sutures or anastomoses one silicone segment can tolerate before replacement.
- Clamp suction cups did not consistently adhere to all table surfaces.
- The 2023 study demonstrated transfer to an anesthetized porcine model; it did not test transfer to human operative performance.
