Buckle (Torus) Fracture of Pediatric Female Left Distal Radius

This module allows traditional bone setters, pre-hospital providers, clinical officers, nurses, nurse practitioners, and medical officers to become confident and competent in performing point-of-care ultrasound diagnostic imaging to rule out the presence of a pediatric distal forearm fracture and distinguish between buckle (torus) fractures and cortical break fractures to make appropriate referrals as part of the management of closed pediatric (< 16 years of age) distal forearm fractures in regions without access to X-ray imaging and orthopedic specialist coverage.[1][2][3][4][5][6][7][8][9]

Anatomy Review[edit | edit source]

Learning Objectives[edit | edit source]

  1. Identify the dorsal, volar (palmar), radial and ulnar surfaces of the forearm
  2. Identify the proximal and distal regions of the forearm
  3. Identify the radius and ulna bones of the forearm
  4. Identify the diaphysis (shaft), metaphysis, physis (growth plate) and epiphysis of the long bones of the juvenile forearm
  5. Identify the tension and compression cortex of the radius and ulna for buckle (torus) and incomplete (greenstick) fractures
  6. Describe the differences between the pediatric distal forearm fracture subtypes, including; buckle (torus), incomplete (greenstick), complete and physeal (Salter-Harris) fractures
  7. Recognize no fracture, buckle (torus) fracture, cortical breach fracture of the pediatric distal forearm, and other fractures of the forearm

Surface Anatomy of the Forearm[edit | edit source]

Surface Anatomy of the Forearm
# Surface Reference Image

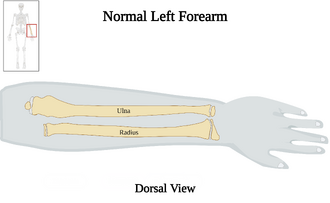

1 Dorsal
Normal Left Forearm of 10 y.o. Female - Dorsal View.png

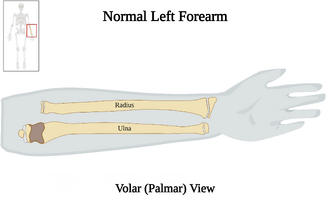

2 Volar (Palmar)
Normal Left Forearm of 10 y.o. Female - Volar View.png

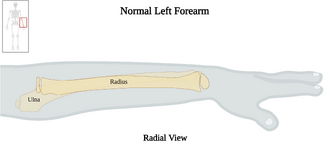

3 Radial
Normal Left Forearm of 10 y.o. Female - Radial View.png

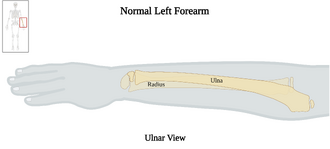

4 Ulnar
Normal Left Forearm of 10 y.o. Female - Ulnar View.png
5 Proximal and Distal
File:Normal Left Forearm of 10 y.o. Female - Proximal Distal v2.0.png

Long Bone Anatomy[edit | edit source]

Long Bone Anatomy
# Anatomic Structure Description Reference Image

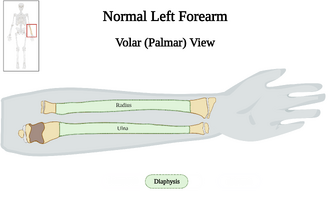

1 Diaphysis Body (shaft) of bone
Normal Left Forearm of 10 y.o. Female - Diaphysis v2.0.png

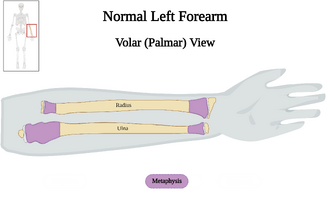

2 Metaphysis Flared part of bone shaft
Normal Left Forearm of 10 y.o. Female - Metaphysis v2.0.png

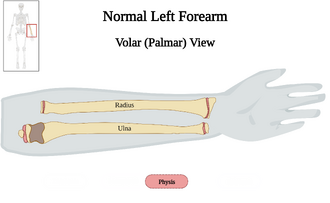

3 Physis Growth plate made of cartilage; also known as epiphyseal plate
Normal Left Forearm of 10 y.o. Female - Physis v2.0.png

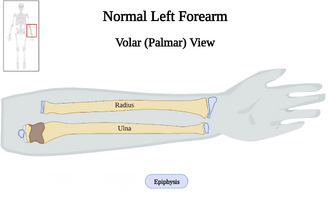

4 Epiphysis End of bone
Normal Left Forearm of 10 y.o. Female - Epiphysis v2.0.png

Classification of Pediatric Distal Forearm Fractures[edit | edit source]

Classification of Children's Fractures
# Fracture Type Description Reference Image Prognosis
1 No Fracture Cortices are unbent and unbroken
Normal Left Forearm of 10 y.o. Female - Radial View.png
 Excellent

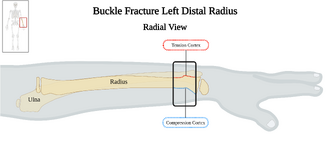

2 Buckle (Torus) Fracture Compression cortex and tension cortex are bent but unbroken[10][11][12]
Buckle Fracture Left Distal Radius - Radial View.png
 Stable[12]

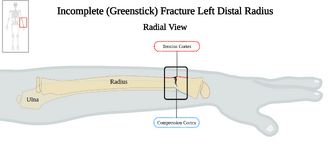

3 Incomplete (Greenstick) Fracture Compression cortex is bent and tension cortex is broken [10][12]
Greenstick Fracture Left Distal Radius - Radial View v3.0.png
 Unstable[12]

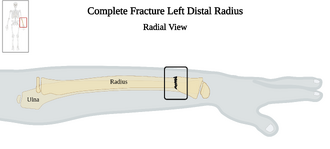

4 Complete Fracture Both cortices are broken[12]
Complete Fracture Left Distal Radius - Radial View.png
 Highly unstable[12]
5 Physeal (Salter-Harris) Fracture Fracture of the growth plate (physis)[12]
Salter-Harris Type II Fracture of Left Forearm of 10 y.o. Female v4.0.png
 Might lead to growth disturbances (rare)[12]

Pediatric Forearm Fracture Subtypes[edit | edit source]

Fracture Subtype Reference Image
1A Buckle (torus) fracture of distal radius
Buckle Fracture Left Distal Radius - Radial View.png

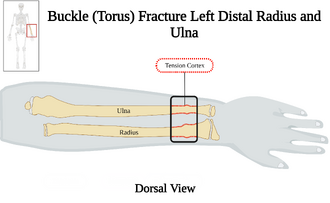

1B Buckle (torus) fracture of the distal radius and ulna
Buckle Fracture Left Distal Radius and Ulna - Dorsal View.png
2 Incomplete (greenstick) fracture of distal radius
Greenstick Fracture Left Distal Radius - Radial View v3.0.png
3A Complete fracture of the distal radius
Complete Fracture Left Distal Radius - Radial View.png

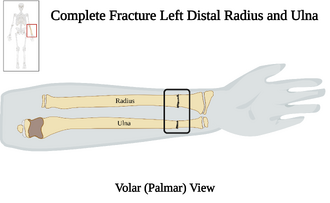

3B Complete fracture of the distal radius and ulna
Complete Fracture Left Distal Radius and Ulna - Volar View.png

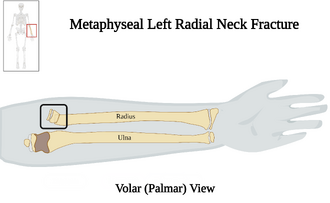

4 Proximal radius fracture[13]
Left Proximal Radius Fracture - Volar View v2.0.png

Physeal (Salter-Harris) Fractures[edit | edit source]

Physeal (Salter-Harris) Fractures
Fracture SubType Fracture Description[14][15] Reference Illustration[16]

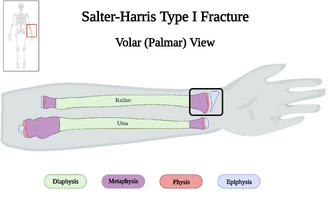

Salter-Harris Type I Fracture across growth plate and does not involve bone
Salter-Harris Type I Fracture of Left Forearm of 10 y.o. Female v4.0.png

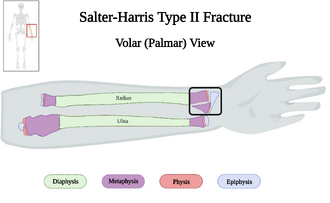

Salter-Harris Type II Fracture across growth plate and through metaphysis
Salter-Harris Type II Fracture of Left Forearm of 10 y.o. Female v4.0.png

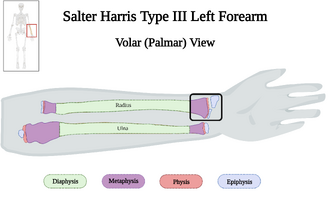

Salter-Harris Type III Fracture across growth plate and through epiphysis
Salter-Harris Type III Fracture of Left Forearm of 10 y.o. Female v4.0.png
Salter-Harris Type IV Fracture through metaphysis, growth plate, and epiphysis
Salter-Harris Type IV Fracture of Left Forearm of 10 y.o. Female v4.0.png

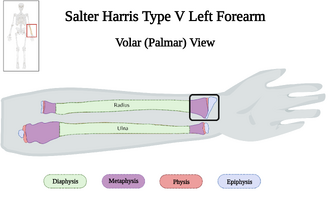

Salter-Harris Type V Compression fracture of growth plate
Salter-Harris Type V Fracture of Left Forearm of 10 y.o. Female v4.0.png

Pediatric Distal Forearm Fracture Categories[edit | edit source]

# Fracture Category Fracture Types
1 No Fracture
  • No Fracture
2 Buckle (Torus) Fracture
  • Buckle Fracture of the Distal Radius
  • Buckle Fracture of the Distal Radius and Ulna
3 Cortical Break Fracture
  • Incomplete (Greenstick) Fracture of the Distal Radius
  • Incomplete (Greenstick) Fracture of the Distal Radius and Ulna
  • Complete Fracture of the Distal Radius
  • Complete Fracture of the Distal Radius and Ulna
  • Salter-Harris Type I
  • Salter-Harris Type II
  • Salter-Harris Type III
  • Salter-Harris Type IV
  • Salter-Harris Type V

Supplemental Learning Topics[edit | edit source]

(Optional) After completion of the module, the learner may wish to learn more about the following topics:

Acknowledgements[edit | edit source]

This work is funded by a grant from the Intuitive Foundation. Any research, findings, conclusions, or recommendations expressed in this work are those of the author(s), and not of the Intuitive Foundation.
