Introduction[edit]

Life Cycle Assessment (LCA) in agriculture can identify areas of current practices that require improvement, such as water resource management, energy use, land use, or greenhouse gas emission. These factors contribute to global warming potential (GWP), soil acidification, and eutrophication. The various environmental impacts related to large-scale livestock production are dependent on the types of farming practices. The types of feed, housing, equipment, and waste management are all factors that contribute to the overall impact associated with livestock production. This page is a review of LCA literature on the subject of livestock production, more specifically, the impacts associated with raising and harvesting pigs.

Energy and Material Use[edit]

This section details the material use as well as the material use associated with pig farming. The section will detail the typical feed used with pigs, the energy use associated with pig farming as well as the impacts of producing the energy, the transportation and impacts of the transportation associated with pig farming, finally the section will detail the impacts to the land used for farming and terrestrial toxicity associated with pig farming.

Feed Composition[edit]

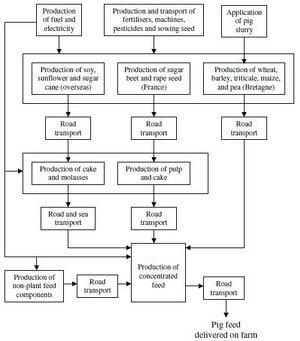

Figure 1: Flowchart of the feed production process (H.M.G. van der Werf et al. 2004[1])
Feed ingredients are often grown and imported from outside the farmlands used for pig production, which means that the transportation of certain ingredients also may have potentially significant impacts as well. This section focuses on the contents of pig feed, the required energy for production, and the potential impacts associated with production.

Pig feed was composed of both animal and crop based ingredients prior to the 2000 banning of animal meal and fat in pig feed. Current pig feed is now composed mostly of crop-based proteins and fats. These crop based ingredients include: wheat, barley, corn, beets, cassava, soy, and sunflower. According to a 1998 study of global cereal, oilseed and tuber production, 40% of these products were used for animal feed production [2]. Figure 1 is a flowchart that describes the process of pig feed production. Table 1 contains information on the amounts of some materials used for feeding pigs at different stages of production.

Table 1: Material use for pig feed production (Adapted from H.M.G. van der Werf et al. 2004[1]).


Piglet Boar Sow
Ingredient <40 days >40 days Growing Finishing Pregnant Lactating
Wheat 263 465 415 247 385 344
Barley 250 51 0 0 150 200
Corn 0 0 0 40 87 70
Peas 0 100 250 150 110 80
Beet Pulp 0 40 0 0 20 10
Rapeseed Cake 0 0 80 130 70 70
Cassava Chips 0 25 0 0 0 0
Cane Molasses 0 20 30 50 30 30
Soy Oil 25 25 10 10 0 20
Soy Cake 250 200 80 50 0 150
Sunflower Cake 0 35 0 0 70 0
Whey Powder 115 0 0 0 0 0
CaHPO4 5 6 3 5 10 5
NaCl 0 5 2 1 1 3
CaCO3 0 5 10 7 10 10
Kg feed per 100 kg live weight 6 30 100 120 42 23


The ingredients listed are not exhaustive; this table has the purpose of demonstrating the amount and variety of materials used in pig feed.
Quantities are in units of g/kg, which is defined as grams of material used in the life of the pig per kilogram of live pig weight.
Note that the last row of the table is listed in kilograms of feed used to produce 100 kilograms of live pig weight. Live pig weight is defined as a pig's weight before slaughter.


Energy Inputs and Impacts[edit]

There are numerous ingredients used in pig feed, and each of these ingredients has its own energy and resource requirements. The crop based ingredients require fertilizers, pesticides, farm equipment, and fuel. Fertilizing agents include: ammonium nitrate, potassium chloride, and calcium oxide. Waste produced by pig production can be used as fertilizer for production of crops for pig feed. Pesticides and diesel are other inputs required for crop production. Pesticides protect crops from harmful insects, while farm machinery requires fuel for operation. Table 2 compares the inputs, yields, and nitrate emissions of several crops: three that use pig waste as fertilizer and three that do not. Certain ingredients, such as amino acids, are chemically synthesized, rather than produced naturally. The energy requirements for these ingredients are much higher than those grown naturally. Table 3 compares the impacts associated with producing some of the ingredients named in Tables 1 and 2. Energy use in Table 3 refers to energy generated via crude oil, natural gas, uranium, coal, or any other sources.

Table 2: Inputs, Yields and Nitrogen Emissions (Adapted from H.M.G. van der Werf, 2004[1]).

Input Wheat Barley Corn Peas Rapeseed Soy
Pig Waste 30000 27000 30000 0 0 0
Ammonium Nitrate 30 30 0 0 110 0
CaO 333 333 333 333 167 150
Pesticide 2.9 2.5 3.5 3.2 2.9 1.5
Diesel 110 109 111 87 81 79
Dry Matter Yield 5914 5124 6439 4111 2968 2008
NO3 Emitted 40 40 40 70 40 40

Quantities are in units of kg/harvest, defined as the mass of an input used for one planting and harvesting cycle of the specified crop.

Table 3: Comparison of environmental impacts per kg of feed ingredient produced (Adapted from Eriksson, 2004[2]).

Energy Global Warming Potential Acidification Eutrophication
Ingredient [MJ/kg] [kg CO2-eq/kg] [g SO2-eq/kg] [kg O2-eq/kg]
Barley 1.9 0.38 1.2 0.13
Peas 1.1 0.31 1.0 0.21
Rapeseed Cake 2.2 0.41 1.3 0.15
Soybean 5.0 0.73 8.3 0.42
Wheat 1.8 0.38 1.2 0.10
Synthetic Amino Acids 86 3.6 41 0.04

Quantities are in units used to describe the potential environmental effects.
Production of synthetic amino acids takes 17 to nearly 80 times the amount of energy required for production of natural ingredients.

Transportation and Other Impacts[edit]

Figure 2: Graph of how each step of the feed production process contributes to impacts (H.M.G. van der Werf et al. 2004[1])
As mentioned in the Feed Composition section above, transportation of imported goods causes environmental impacts due to energy use and emissions. This section will describe the impacts associated with transportation, as well as impacts not mentioned in previous sections: land use and terrestrial toxicity.

Figure 2 describes how each part of the feed production process contributes to certain impacts. Terrestrial toxicity refers to the effects of harmful metals added to the soil due to trace amounts in manure, food, and water. These metals include zinc, copper, nickel, lead, and cadmium. Land use refers to the amount of land used by a certain process. Most of the impacts associated with the feed production process are due to crop ingredients. Transportation impacts have the largest contribution to energy use, acidification and climate change.

Waste Management[edit]

Waste management can be a major issue in pig farming. Major issues include meeting the governmental regulations and illnesses from contamination of ground water. Waste management is any wastes associated with pig farming, including excrete and scraps from slaughter. This section looks at different alternatives of disposing of pig wastes. The section will then look at three methods currently in use for recycling pig waste. The three methods are; bio gas, fertilizer production and fish and livestock feed. The section will then briefly explain the non environmental methods currently in use which can reduce costs associated with waste management but increase the impact to the land and the environment.

The three recycling alternatives very greatly in initial cost, a cost summary is presented below in Table 4. The operation and maintenance costs of each alternative very greatly as well as vary per alternative depending on the use of by products.

Table 4 cost analysis of bio digesters, fertilizer and feed methods (Adapted from Kiratikarnkul 2008)[3])

  Description Fertilizers Feed Bio Gas
Plastic Digester Concrete Digester
    1. Cost per square meter ($/m2) $ 4.67 $ 0.89 $13.93 $40.35

Cost analysis based on case studies of farms in Thailand converted to US dollar


Bio Gas[edit]

The bio gas method uses anaerobic bacteria mixed with the waste in a contained digester to break down the waste in biogas digesters. The off gases from this method are collected for energy production use. The off gases are made up of mostly methane depending on the feed used for the pigs. The methane can be burned for heat or cooking. In most case studies the methane is used locally on site to offset energy use and reduce energy costs. Bio gas digesters are a closed container therefore reducing odors and pollution from the waste.  Bio gas digesters are the most expensive recycling alternative at $13.93 per square meter and $40.32 per square meter for plastic and concrete bio digesters respectively.

Fertilizer[edit]

Fertilizer methods involve spreading out the waste to evaporate off the liquid content. In a humid area evaporation can require an evaporator which would increase the initial cost estimate. This alternative can have serious impacts in the event of rains or flooding. This method can also have strong odor.

Feed[edit]

Pig wastes can be used as feed with many applications. The waste can be used to feed livestock or on smaller scale farms fish ponds. Most pig farms use high protein diets for the pigs and much of the nutrients is passed to the waste. This method uses the high nutrient waste to feed fish for harvest.

Non Environmental Waste Management[edit]

This section outlines two non environmental waste alternatives commonly used in pig farming. These methods are generally used because they reduce costs associated with waste management however these methods generally have increased environmental impacts. Some waste material associated with pig farming cannot be deposed of using the above mentioned methods and must be deposed of using a non environmental method such as bones as well as any materials suspected to be contaminated.

Landfills are a method used for waste products. Landfills are a concentrated waste site susceptible to leak and ground contamination. Landfills commonly fill faster than the waste degrades and therefore build up. For this reason landfills are not a preferred waste disposal alternative.

Deep ponds are a method used on small rural farms where a pond is dug out with a deep center and waste is dumped into the pond. Deep ponds have a high potential for ground water contamination, deep ponds are also odorous. Deep ponds are not a preferred alternative for these reasons.

References[edit]

  1. 1.0 1.1 1.2 1.3  H. M.G. van der Werf, Jean Petit, and Joost Sanders. 2004. The environmental impacts of the production of concentrated feed: the case of pig feed in Bretagne.
  2. 2.0 2.1 Ingrid Strid Eriksson. 2004. Environmental Systems Analysis of Pig Production.
  3.  Kiratikarnkul, Siriporn. 2008. A Cost-Benefit Analysis of Alternative Pig Waste Disposal Methods Used in Thailand.


This page was part of a project for Engr410 Environmental Impact Assessment, which finished on May 15, 2010. It is now open edit.
