Hemostats
Description Hemostats are a medical alternative to clamps. They are especially useful when the user only has one hand available
Keywords 3D printing, hemostats, clamp, medical tools
Uses medical, development, industry
Authors Patrick Gilland
Status prototype
Made? Yes
Replicated? Was this project made independently by someone other than the authors and without their guidance? No
Countries of design United States
Affiliations Category:MTU
Category:MOST
Materials plastic
Estimated cost USD $ 0.86
Sustainable Development Goals SDG03 Good health and well-being
Documentation data
Language English
Manifest data
Language English
Updated 2020-06-04
Author Kathy Nativi
Author affiliation Appropedia
Author email info@appropedia.org

Hemostats[edit | edit source]

Project developed by User:Patrick Gilland


Abstract[edit | edit source]

  1. Hemostats are a medical alternative to clamps. They are especially useful when the user only has one hand available or access to something from one side. This fully customizable 3-D printed option makes hemostats available to doctors in remote locations at a low cost.

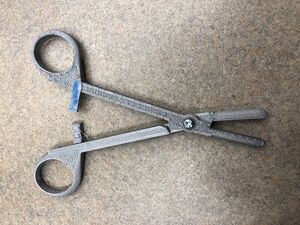

  1. Picture of completed print using your printer

Bill of Materials[edit | edit source]

  • 2 x Printed Hemostat Files
       DOWNLOAD FILES HERE  https://www.thingiverse.com/thing:3280991
  • 1 x 3mm by 10mm long**
  • 1 x 3mm nut**

NUT & BOLT DIMENSIONS MAY CHANGE WITH CUSTOMIZATION OF PRINT

Tools needed for fabrication of the OSAT[edit | edit source]

  1. MOST Delta RepRap or similar RepRap 3-D printer
  2. Phillips head screw driver
  3. 5.5 mm wrench

TOOL REQUIREMENTS MAY VARY BASED ON NUT & BOLT SELECTION

Skills and Knowledge Necessary to Make the OSAT[edit | edit source]

  • 3D Printing Knowledge & Capabilities
  • Understand the needs & application for the most efficient customization

Technical Specifications and Assembly Instructions[edit | edit source]

  1. Customize & Print 2 copies of the Hemostats
  • It is recommended to print around 30 mm/s with a 100% infill
  1. Orient the two printed pieces so that:
    1. The holes align
    2. The finger holes of the prints are on opposite sides
    3. Locking wedges are pointing toward each other for proper engagement
  2. Insert bolt into hole. (Direction does not matter)
  3. Engage the nut onto the bolt.
  4. Tighten with very little force using a screw driver and a wrench. (Over tightening will the limit the ability of the hemostats.

Common Problems and Solutions[edit | edit source]

  • Make sure that the wedges that lock into each other are both wide enough and deep enough so that they do not break when you try and lock the Hemostats down.
  • Make sure the nut & bolt are loose enough to allow free movement of the hemostats.
  • Make sure the all of the pieces are thick enough as to not bend under forces (minimum of 4mm thickness is recommended)

Cost savings[edit | edit source]

  • 25g of PLA ($0.40 USD) + 3mm Nut ($0.13 USD) + 3mm x 12mm bolt ($0.33 USD) = $0.86 USD Total
  • Compared to $4.27 USD Cheapest Hemostats I Could Find
  • Cost savings of $3.41 USD (79.9% cost savings)
  • The biggest benefit is not cost, but availability when Amazon delivery is not an option in a remote or devastated area.

Benefited Internet Communities[edit | edit source]

Name and add links to at least 5 using single brackets around [url name]:

References[edit | edit source]

  • These hemostats were designed based on my own used of them
