Human testing of the stetchbarrow!
FA info icon.svgAngle down icon.svgProject data
Instance of Wheelbarrow
OKH Manifest Download

The Stretchbarrow is a device designed to carry beach grass. It was created for the Friends of the Dunes organization as a method of hauling invasive beach grass after it has been removed. The stretcher-wheelbarrow design was created by a group of students from Cal Poly Humboldt's Engr205 Introduction to Design class.

Background[edit | edit source]

The goal of the Friends of the Dunes is to conserve the natural diversity of coastal environments. In order to effectively do this, volunteers systematically remove the invasive beach grass from the dunes in Arcata, CA. The Stretchbarrow was designed to transport the removed beach grass from the Humboldt Coastal Nature Center to awaiting vehicles for offsite disposal. The stretcher can be used by two or more people, or can be added to the separate wheel and axel to be used by one person.

Problem Statement and Criteria[edit | edit source]

The objective was to supply a means of transporting beach grass from the dunes to loading vehicles at the Humboldt County Nature Center. The volunteers using the device need a way of carrying large amounts of grass a short distance, and also a device that can be used by one person, if the need arose.

Criteria[edit | edit source]

The criteria were distinguished by our group in co ordinance with the client in order to weigh different aspects of our alternative solutions to come up with the best solution possible.

Criteria Description Weight
Dune Impact Minimize impact on the dunes 6
Safety How safe the user is 8
Cost How much it costs to make and maintain the product 4
Ease of Use How easy the product is for the user 7
Durability How durable the product is 5
Maneuverability How maneuverable the product is 8
Environmental Appropriateness How environmentally appropriate the materials are 4

Design Description[edit | edit source]

The stretchbarow design consists of a stretcher with long, wooden handles that can be carried by two or four people. These handles can also be attached to a separate axle with two wheels so that it can be used as a wheelbarrow as well for more convenient use by a single person.

The Stetcher[edit | edit source]

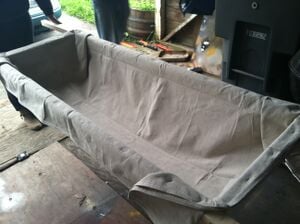

The stretcher is made of four pieces of oak 2 x 2's, making a rectangle. A drop cloth is attached to the center of the rectangle to create an area for the beach grass. The dowels are held together by screws, and the drop cloth is attached to the wooden frame by screws as well. The cloth drops down in the middle by about a foot to maximize the volume.

Wheels and Axle[edit | edit source]

Two wheelbarrow wheels are attached to a metal axle to be added to the stretcher for use as a wheelbarrow. The wheels are six inches apart to spread out the load of the weight so that it will be easier to use on sand.

Axle Attachment[edit | edit source]

On one end of the stretcher, both handles have curved brackets on the bottom side for the ends of the metal axle to slide into. These are placed six inches in from the ends of the handles.

Attachment and Removal Instructions[edit | edit source]

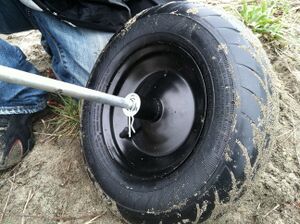

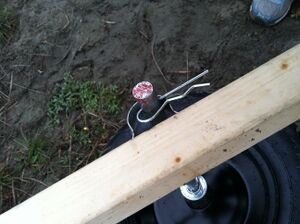

To put the axle onto the stretcher, one end of the axle can be put into the bracket on one of the handles, slid back as far as possible, and then the other end of the axle can be placed into the bracket on the other handle. The pins are then placed into the holes on each end of the axle outside of the handles to prevent any sliding or shifting of the axle.

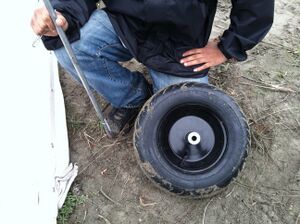

To remove the wheels and axle, remove the pins from the axle and push it all the way to one side. Take out one end, and then pull it the opposite way to completely remove it.

Costs[edit | edit source]

Design Time Input[edit | edit source]

The design cost accounts for the total time the group spent on the project outside of class. The combined times sum up to about 200 hours, most of which can be attributed to Phase 5 of the design process. The figure below shows the distribution of hours allocated to each phase.

Design cost stretchbarrow.jpg

Cost of Materials[edit | edit source]

Item Amount Cost Total
8' Wood 3 $6.00 $18.00
Wood Waterproofer 1 $18.89 $18.89
Metal Rod 1 $30.49 $30.49
Pine Board 1"x4"x12' 1 $5.60 $5.60
Tire 2 $25.00 $50.00
Hardware 45 $.79 $17.30
Dropcloth 1 $17.99 $17.99
Grand Total $152.67

Results[edit | edit source]

The stretcher is able to hold about 1.5 cubic yards of beach grass, and approximately 150 pounds. The materials are so durable and the design is so strong, that can steadily support an average size human being. When attached to the wheel and axle, the device does experience some inevitable resistance with the sand, but it ultimately functions well.


Construction Process Steps[edit | edit source]

Instructions how to build the design and keys on replicating it.

Frame of Stretcher

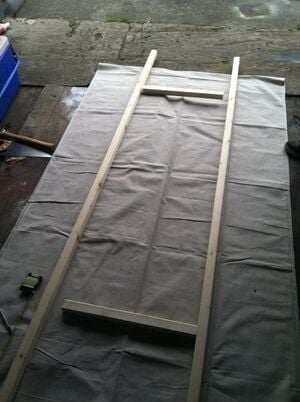

Build the frame using two 8' members and two 19 members. Measure out and mark drill holes. Drill holes for the screws.

Draping Cloth

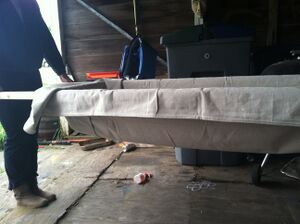

Drape cloth and fold slack in on the corners.

Drilling screws

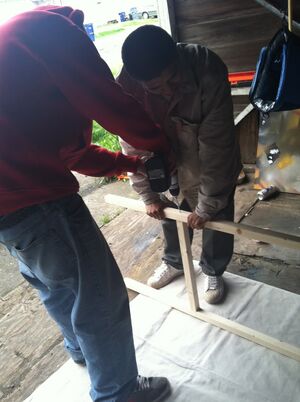

Drill in Screws in previously drilled holes.

Staple edges

Staple loose edges on under side of wood.


Screw brackets.

holes in axle

Cut and Drill Holes in axel.

Pinning in Wheel

Pin down wheel.

Discussion and breakdown[edit | edit source]

The next steps for the Stretchbarrow could be using round wooden dowels instead of square ones so that the user has a more comfortable handles. Another next step could be to make the piece of canvas detachable so it can be replaced if it rips.

Update October 2017[edit | edit source]

Stretch Barrow is still being used by volunteers on restoration days. It was last used during the sand sculpture contest last July. In the picture to the left there is a large pile of grass that was removed and then moved using the stretch-barrow.

FA info icon.svgAngle down icon.svgPage data
Part of Engr205 Introduction to Design
Authors Jordan Ludtke
License CC-BY-SA-3.0
Organizations Friends of the Dunes
Language English (en)
Related 0 subpages, 7 pages link here
Impact 451 page views
Created April 5, 2012 by Jordan Ludtke
Modified January 29, 2024 by Felipe Schenone
