Overview
[edit | edit source]

Evaporative cooling chambers (ECCs), also known as "zero energy cool chambers" (ZECCs), are systems that rely on evaporative cooling that provide simple and inexpensive ways to keep vegetables fresh without the use of electricity. Evaporation of water from a surface removes heat, creating a cooling effect, which can improve vegetable storage shelf life. ECCs are relatively large compared to the more common household clay pot cooler, and are therefore most suitable for farmers with large production quantities, farming groups, or farming cooperatives.

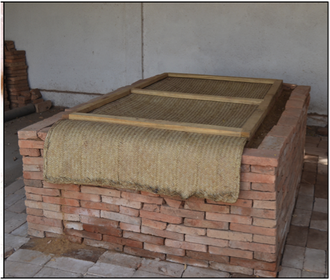

An evaporative cooling chamber (ECC) constructed from bricks with a cover made from dry grass and wood



History
[edit | edit source]

The brick ECC was originally developed in India by Susanta K. Roy and D.S. Khuridiya in the early 1980s to address fruit and vegetable post-harvest losses, especially in rural areas where electricity is non-existent.[1][2] Roy and Khuridiya’s ECC design is composed of a double brick wall structure, supported by a base layer of brick, and covered with a straw mat.

Suitability
[edit | edit source]

ECCs provide the most benefits when they are used in low humidity climates (less than 40% relative humidity), the temperature is relatively hot (maximum daily temperature greater than 25 °C), water is available to add to the device between one and three times per day, and the device can be located in a shady and well-ventilated area.

Additionally, storage conditions must meet users’ needs for scale of storage needed and optimal conditions for different vegetables throughout the year. The cost of the ECC must be affordable and justified by the benefits be realized due to its improved storage.[3][4]

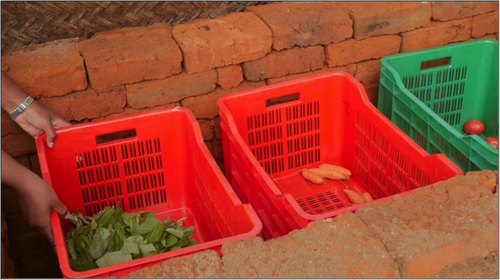

Vegetables stored in an evaporative cooling chamber



Construction
[edit | edit source]

The size of an ECC can be chosen to meet a range of user storage needs; however, the cost can vary significantly based on desired size and local cost of materials. Because ECCs can be constructed over a range of sizes, it is important to select an appropriate size according to the need, to avoid over-building and spending more money than is needed.

Evaporative cooling chambers (ECCs) can be made from locally available materials including bricks, sand, wood, dry grass, gunny/burlap sack, and twine. The space in between the two brick walls is filled with sand, which retains the water that is added. If the evaporative cooling chamber is not build in an area that is well shaded, a shed must be constructed to provide shade. Inside the ECC, food is placed in unsealed plastic containers, which keep the vegetables off the ECC’s floor and allows them to breathe and be exposed to the cool, humid air inside the device.

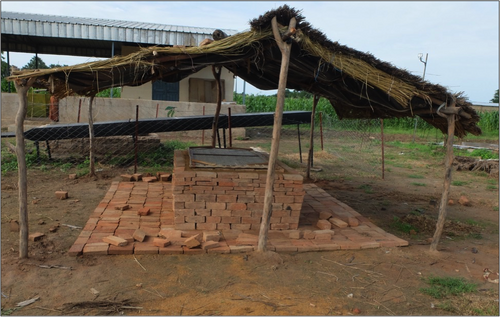

An evaporative cooling chamber (ECC) under a shade cover made from wood, straw, and plastic


Below is a detailed step-by-step process for building an ECC:[5]

Making ECC 1.png



1) Make a foundation of approximately 165 cm x 115 cm with bricks. The dimensions can vary according to the storage volume needed



Making ECC 2.png



2) Mount the double wall at approximately a height of 67.5 cm leaving a cavity of 7.5 cm wide between the walls



Making ECC 3.png



3) Wet the walls of the chamber with water

Making ECC 4.png




4) Fill the cavity between the two walls with wet sand. It is better to use the sand from a nearby river if possible.





Making ECC 5.png



5) Make a frame from wood the same size as the foundation (165 cm 5) x 115 cm). Cover the wood frame with straw, dry grass, or burlap sack and secure with rope or twine.




Making ECC 6.png



6)The cover goes over the evaporative cooling chamber to keep the cool air inside the chamber




Making ECC 7.png



7) Store your products in plastic crates or baskets in the chamber. Plastic crates containing products must be arranged on top of each other




Making ECC 8.png



8) Place a clear plastic sheet over the plastic baskets containing the fruits and vegetable ECC in operation to extend the shelf life of fruits and vegetables.




Making ECC 9.png



9) If the evaporative cooling chamber is not build in an area that is well shaded, a shed must be constructed to provide shade.




Additionally, videos on construction are available.[6][7][8]




Best Practices for Use
[edit | edit source]

It is important that ECCs are correctly used to ensure maximum cooling performance benefit for the user. Improper use decreases the potential benefits and results in a lower cost-benefit ratio. Before starting to build an ECC, a location should be chosen that is close to water, exposed to wind/breeze, and if possible where there is shade to avoid the need of a cover. ECCs should be reinstalled every 3 years with new bricks. The cover of the ECC should be opened as infrequently as possible to keep the cool air in. The sand between the bricks must be kept wet, installing an irrigation system can make this process simpler. Additionally water should be sprinkled on the cover 1-3 times per day.

The vegetables that need storage should be carefully considered, since not all produce can be stored together because some release ethylene, which can accelerate ripening or reduce postharvest quality. Like any device for storing food, the ECCs should be kept clean. The surface of the interior cooling space should be sponged off regularly.
