Custom Built 3D Printable Motor
Description People looking to purchase motors similar to the ones in the market
Keywords 3D printing, micro motor, arduino, breadboard
Uses development, industry, education
Authors Jordan Null
Status Prototype
Made? Yes
Replicated? Was this project made independently by someone other than the authors and without their guidance? No
Countries of design United States
Affiliations Category:MTU
Category:MOST
Materials Plastic
Metal
Breadboard
Magnets
Sustainable Development Goals SDG09 Industry innovation and infrastructure
Documentation data
Language English
Manifest data
Language English
Updated 2020-06-04
Author Kathy Nativi
Author affiliation Appropedia
Author email info@appropedia.org

Understanding the market[edit | edit source]


A Market Equivalent Motor by DC Micro Motors People looking to purchase motors similar to the ones produce here would be our target audience.

Things lacking from this design that are to be improved upon:

  • There is a lot of expensive composite materials in this design. This can be cut down to improve cost savings.
  • Being able to build your own at home can cut down on downtime and failures
    • Product is designed for future applications to insert printed magnets.
  • The design is parametric for different pole combinations.

The first prototype of the motor had clearance issues, and we are hoping to have this issue resolved through design iterations and slower print speeds. This has not been tested for comparison metrics, but once we get the magnets and ESC we will begin to track data.

Project goals[edit | edit source]

  1. Create a repeatable and cost effective motor design
  2. Design magnetic slots for future applications
  3. Updating design for coil winding ease
  4. Track data to compare to market motors


Design[edit | edit source]

Hardware[edit | edit source]

  1. Roller Skate Bearings for collar shaft
  2. Magnetic PLA
  3. Shaft for rotational output
  4. RC ESC
  5. Breadboard for electronic wiring
  6. Potentiometer for motor control
  7. Magnets for inserts

Software[edit | edit source]

Arduino Code

With assistance provided from [Arduino Brushless Motor Controllers]

3-D Printable Parts[edit | edit source]

Version 1:[edit | edit source]

  1. File:Rotor test.scad
  2. File:6N Stator Short.scad
  3. File:Rotor PrintedAx.scad
  4. File:8P Rotor Short V2.scad
  5. File:9N Stator Long.scad
  6. File:9N Stator Short.scad
  7. File:12N Stator Short.scad
  8. File:12P Rotor Short.scad
  9. File:Mount Bot V1.scad
  10. File:Mount Top V1.scad

Version 2:[edit | edit source]

  1. File:StatorNoTooth.scad
  2. File:WindingPole Single.scad

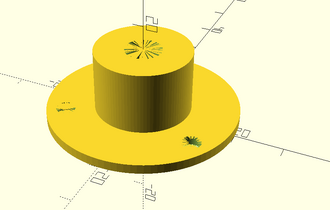

  3. File:Mount PrintedTooth.scad

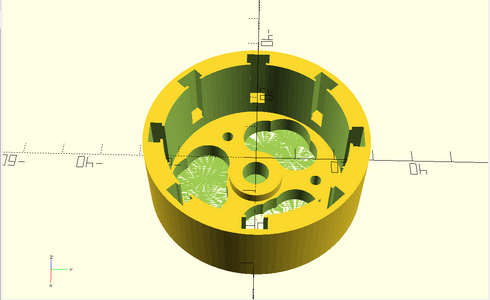

  4. File:Rotor PrintedTooth.scad
  5. File:BearingRetainer PrintedAx.scad

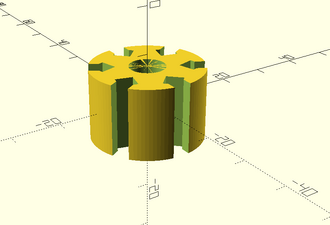

  6. File:Stator PrintedTooth.scad
  7. File:Mount PrintedAx.scad
  8. File:Stator PrintedAx.scad
  9. File:Rotor PrintedAx.scad

Running Motor[edit | edit source]

Just a sample video of our motor running using a basic RC ESC, breadboard, and potentiometer.

The next steps[edit | edit source]

Our teams next steps are to finish gathering materials, running tests and collecting data for comparison. We could fine tune our designs for tighter tolerances to get better efficiency.


References[edit | edit source]


Contact details[edit | edit source]

This Motor was designed by Andy Sledder, John Stough, and Jordan Null. Please reach out via our Appropedia pages for more custom designs. John Stough Jordan Null (talk) Aesleder (talk)
