Caliper
Description 3D printable caliper. Calipers are a useful tool because they provide a bit more accuracy than a standard ruler.
Intended use development, education, industry
Keywords 3D printing, caliper
Documentation language eng
Appropedia user User:Amherbst
Project status prototype
Project was made Yes
Date of publication
Countries of design
Project affiliation
Main materials Plastic
Estimated cost 0.15
SDG Sustainable Development Goal 4, Sustainable Development Goal 9

Caliper[edit]

Project developed by User:Amherbst

Status
This OSAT has been designed but not yet tested - use at own risk.
This OSAT has been prototyped.

You can help Appropedia by contributing to the next step in this OSAT's status.

Abstract[edit]

Calipers are a useful tool because they provide a bit more accuracy than a standard ruler. This design is 3D printable, and can be modified to change the length, and increment size. It is nowhere as accurate as a digital caliper. But it helps to get rough measurements

Bill of Materials[edit]

  1. PLA
  2. Superglue

Tools needed for fabrication of the OSAT[edit]

  1. MOST Delta RepRap or similar RepRap 3-D printer

Skills and Knowledge Necessary to Make the OSAT[edit]

  • Knowledge of how use openSCAD to modify the length and increment size of the caliper

Technical Specifications and Assembly Instructions[edit]

  1. Parts are on on this YouMagine link https://www.youmagine.com/designs/caliper#documents
  2. Print the ruler model either flat on its back or on its side opposite of the increment marks.
  3. Print the caliper pieces on either of their sides
  4. Print both left and right caliper pieces and end cap together to prevent warping.
  5. Glue left caliper to the left end of the ruler
  6. Insert right caliper
  7. Glue end cap to the right end of the ruler to prevent right caliper from falling off.
  8. 20 minute print time
  9. 1 minute assembly time

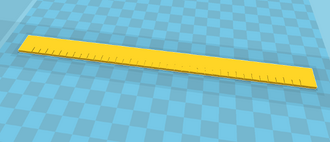

  • Ruler:

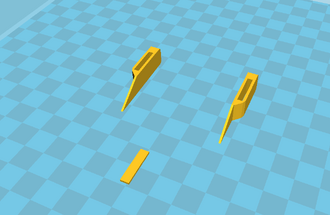

  • Caliper Parts:









  • Assembled Caliper:






Common Problems and Solutions[edit]

  • when the ruler is printed on its back it becomes slightly warped, however this does not effect the functionality of the caliper. Printing the ruler on its side solves this problem.
  • make sure to calibrate your caliper with a standard before use

Cost savings[edit]

  1. 3D printed non-digital Caliper 0.15$
  2. Digital Caliper 15$-100$
  3. Minimum savings 14.85$ (99%)

References[edit]

  • No references were used for this project.
