Baby Crib

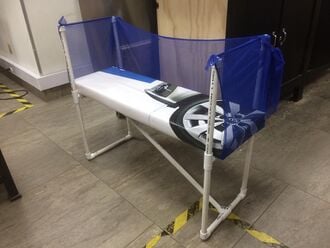

This baby crib is a low-cost, field-fabricated design intended for use in disaster response and emergency shelter settings, as well as low-resource clinics and maternity wards. It is built primarily from PVC pipe, mesh, and plastic sheeting or cloth, materials that are widely available, inexpensive, and easy to source even in constrained supply environments.

The frame is constructed from PVC pipes, cut to size and joined by hand. A saw and a drill are the only tools required for fabrication; assembly is otherwise done manually, without specialized equipment. The frame can be left unglued and assembled with press-fit joints for transport, allowing it to be disassembled and carried to a hospital or

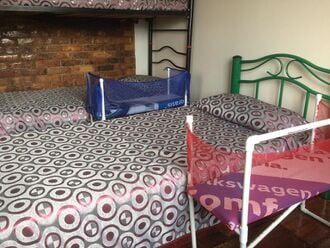

clinic in a compact, portable form. Once installed at its point of use, the joints can be solvent-welded (glued) to permanently secure the structure for safety.

Mesh panels form the sides of the crib, providing ventilation and visibility while containing the infant safely within the frame. Plastic sheeting or cloth is used to complete the enclosure or line the sleeping surface, depending on the materials on hand.

This design supports rapid deployment in humanitarian settings where conventional cribs are unavailable, damaged, or too costly to source, while still allowing for durable, permanent setup once a location is confirmed.

Product development encompasses a number of concerns that are not always easily captured in saying that something is “ready.” Four separate readiness scales are listed for each item in this story along with a consideration of risk. The five categories are explained below along with the readiness scales on the following pages to provide users of this story with a clear understanding of how the system works.

Field readiness level:

• This measures the degree in which an item is suitable for life-saving situations. It is a key quality that sets items apart in humanitarian contexts.

Maker readiness level:

• This is an indication of the relative ease in making the item as it relates to the complication and skill involved.

User readiness level:

• This is a measure of the end-users acceptability of the item considering issues such as whether it is already commonly used if the item is in an existing catalog and when there are established standards for its use.

Technology readiness level:

• This is an indication of the development process that the item is in (e.g., whether it is at a conceptual stage or available for replication and widespread use). Risk level: This is a measure of severity and likelihood of the risk involved for the maker and end-user of the item. The mitigation and control measures are documented by Field Ready in separate risk assessments for each item it makes.

How the levels are identified is based on this reference: Field Ready Readiness Levels

Risk Assessment

A risk assessment identifies the potential hazards associated with a product's materials,

construction, and intended use, and evaluates the likelihood and severity of harm each hazard could cause. For open-source hardware designed for humanitarian and field contexts, this document is essential because it gives makers, implementers, and end users a clear understanding of what could go wrong (structural failure, choking hazards, sharp edges, chemical exposure, and so on) and what steps have been taken to mitigate those risks. It supports safer replication of the design in the field and helps ensure that products are appropriate for vulnerable users, such as infants or patients in low-resource settings.

See the reference file of this project below.

File:CP002 Risk Assessment.pdf

Test Plan

A test plan outlines the specific procedures used to verify that a product meets its intended performance, durability, and safety requirements before it is deployed or recommended for use. It typically describes what will be tested (e.g. load capacity, stability, material integrity), how the testing will be conducted, and the criteria for pass or fail. This document is essential because it provides evidence, rather than assumption, that a design performs as intended under realistic conditions. For open-source hardware shared for replication, a documented test plan also gives other makers a reference for validating their own builds.

See the reference file of this project below.

File:CP002 Test Plan.pdf

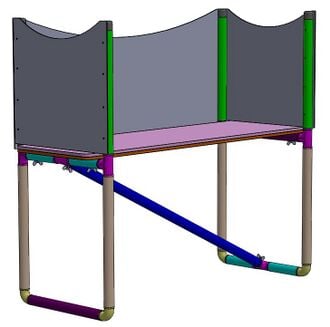

This section contains the engineering drawings and CAD data for this product, including dimensioned drawings, part files, and assembly references needed to fabricate or replicate the design. These files are provided to support accurate reproduction of the product by makers and organizations in the field.

You can download the files of this project below.

File:CP002 Eng Dwg.zip

File:CP002 CAD Files.zip

Field Ready develops manuals to support both the fabrication and safe use of its products. A maker manual provides step-by-step instructions for replicating the design, including materials, tools, and assembly guidance, so that makers in different locations can build the product accurately and consistently. A user manual, where applicable, explains how to properly set up, use, and maintain the product once it is built, helping ensure it performs safely and as intended for the end user. Together, these manuals make the design accessible to both fabricators and the people who ultimately rely on the product.

Maker Manual Reference: File:CP002 Maker Manual.zip
