The Weather Station Connector is a 3D printed spare part designed to replace a damaged or missing connector on a weather station. The connector is 3D printed using ABS plastic filament, chosen for its strength and durability in an outdoor-use component that may be exposed to weather conditions over time.
Open the file using slicing software and prepare for 3D printing. Use the printing settings below (settings may need adjustment depending on the specific 3D printer brand and filament manufacturer used).

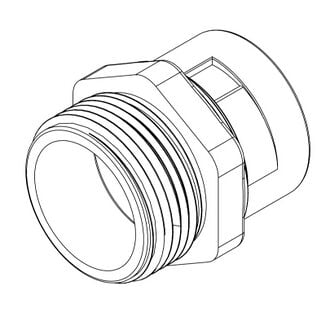

Drawing of the Weather Station Connector
Setting
Value
Layer Height
0.20 mm
Line Width
0.35 mm
Wall Thickness
1.05 mm
Top/Bottom Thickness
1.0 mm
Infill Density
99%
Infill Pattern
Strong 3D
Printing Temperature
240 °C
Build Plate Temperature
80 °C
Flow
100%
Retraction
Enabled, 6.5 mm distance, 25 mm/s speed
Print Speed
60 mm/s
Print Cooling
Enabled, 5% fan speed
Support
Yes — touching buildplate, 60° overhang angle
Build Plate Adhesion
Brim
About the manuals
Field Ready develops manuals to support both the fabrication and safe use of its products. A maker manual provides step-by-step instructions for replicating the design, including materials, tools, and assembly guidance, so that makers in different locations can build the product accurately and consistently. A user manual, where applicable, explains how to properly set up, use, and maintain the product once it is built, helping ensure it performs safely and as intended for the end user. Together, these manuals make the design accessible to both fabricators and the people who ultimately rely on the product.
