The sign outside of the Honest Engine repair shop in Eureka



The Redwood Coast Energy Authority and Honest Engine
[edit]

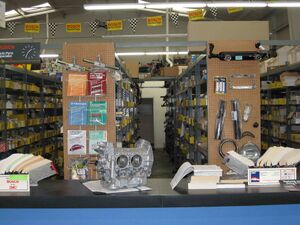

The Honest Engine parts store. Notice only 50% of the lights are being utilized (FIG. 1)

The Redwood Coast Energy Authority[edit]

The Redwood Coast Energy Authority (RCEA) is an organization that improves energy efficiency and reduces the use of energy at businesses in Humboldt County, CA. One of the businesses that RCEA has worked with is Honest Engine in Eureka, California. RCEA a not for profit company and is funded through government grants and a 2-year contract with Pacific Gas and Electric Company.

Honest Engine[edit]

Honest Engine is an automobile service shop in California and has been operating since 1976. Honest Engine is unique in that it is both a repair shop and a parts store. Honest Engine supplies a variety of parts (FIG. 1) and services to all automobiles, however they specialize in foreign manufactured vehicles. Bob Neely owns and operates the Honest Engine branch in Eureka. The Eureka Honest Engine location consists of an approximately 15 by 24 meter parts store and the 12 by 30 meter garage (FIG. 2). Honest Engine also has a warehouse on their property which is included on the energy bill. The warehouse was leased out to and used by the DHL shipping company until 2008. All of this area totals 4,267 square meters and all energy use is compiled on one bill (including the warehouse).


The energy audit by Redwood Coast Energy Authority includes all of the buildings' energy consumption. The energy audit by RCEA is an inspection of energy use and efficiency at Honest Engine. After the original energy audit, RCEA then implemented new technology to increase the buildings' energy efficiency based on the information from the energy audit. The new technology added are retrofits which are added to older systems as augmentations.

Motives for Retrofit[edit]

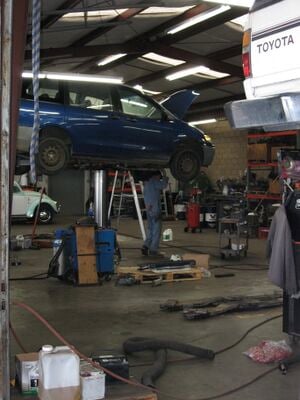

The Honest Engine mechanic shop. Notice the skylight in the background as well as the RCEA retrofitted T 10 Flourescent Lighting (FIG. 2)


Honest Engine's motivation for the lighting upgrade was driven by the desire to utilize a more energy efficient and therefore environmentally sustainable system. In addition, the extra money saved as a direct result of the efficiency is also a helpful incentive from a business perspective. Honest Engine understands that there is an environmental impact that the company has by the nature of their business. Due to their combined effort with RCEA, Honest Engine is able to reduce its carbon footprint while also saving money. Electricity is the biggest bill Honest Engine has month to month mainly because of the lifts, drills, lights and air compressor used to keep a service shop running. Honest Engine's largest single consumer of electricity is their industrial air compressor, which is essential to the nature of running an automobile repair shop. The compressor is expensive from an electricity standpoint and retrofitting something small like the fluorescent lights in FIG. 3, makes their electricity bill much more affordable.

Retrofits Implemented[edit]

RCEA retrofitted the following items on site at Honest Engine:

  1. Replaced every lighting Unit with more durable fixtures
  2. Replaced 8 ft. bulbs with 4 ft. T 10 Florescent bulbs which have approximately 25% more light output than a standard fluorescent bulb while delivering a better color rendition as well.[1]
  3. Reflectors were added to all lighting units to improve the projection of the lights


4 ft. Flurecent Lighting Fixtures Installed by RCEA (FIG. 3)
Example of Honest Engine keeping every other Light off to conserve energy (FIG. 4)

Project Details

Cost

Subtotal Cost: $5,081.41
Instant Rebate: $1,457.75
RCEA's Estimated Savings: $3,623.66 per year


RCEA's Estimated Energy Savings (See FIG. 5)

Per Year: 6,431 kWh/yr
Power Reduction: 2.450 kW


RCEA's Estimated Savings (See FIG. 6)

Per Month: $89.37
Per Year: $1,072.42

(FIG. 5)
(FIG. 6)
(FIG. 7)

Results of The Retrofit[edit]

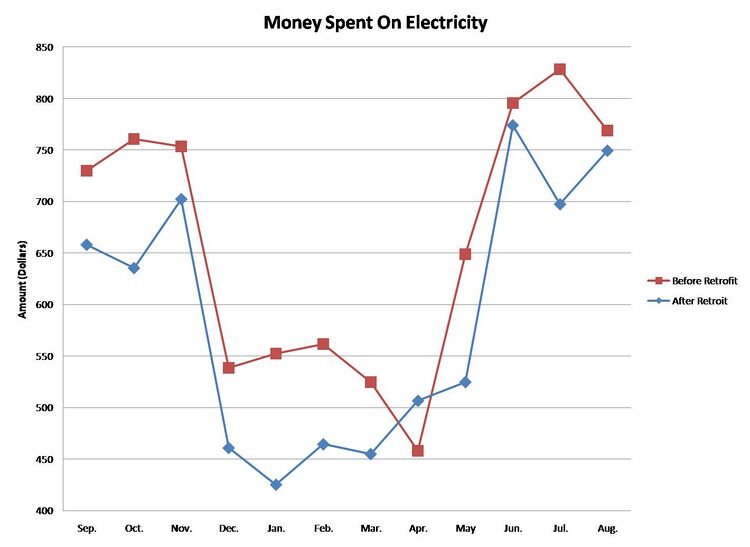

The retrofit was successful in the goals of conserving energy and saving money, but did not meet the estimated dollar savings originally set by RCEA at the completion of the Retrofit. The estimated savings was $1,072.42 per year. In the first full year (Aug. 2008- Aug.2009) the actual savings was $866.96. That is a difference of $205.46 in the first year. The actual energy savings did however exceed the estimated energy savings of 6,431 kwH/year. In the first full year (Aug. 2008-Aug. 2009) the actual savings was 9,960 kwH/year. This data shows that the price of electricity was most likely higher when RCEA was making estimations than it is currently because there was more energy saved then estimated but less money saved. All of the results are expressed in Table 1.

Table 1: Bottom Line Results After One Year
RCEA Estimated Results Actual Results Difference
Energy Usage (kWh) 6,431 kWh per year 9,960 kWh per year 3,521 kWh per year
Expenditures on Electricity $1,072.42 per year $866.96 per year -$205.46 per year

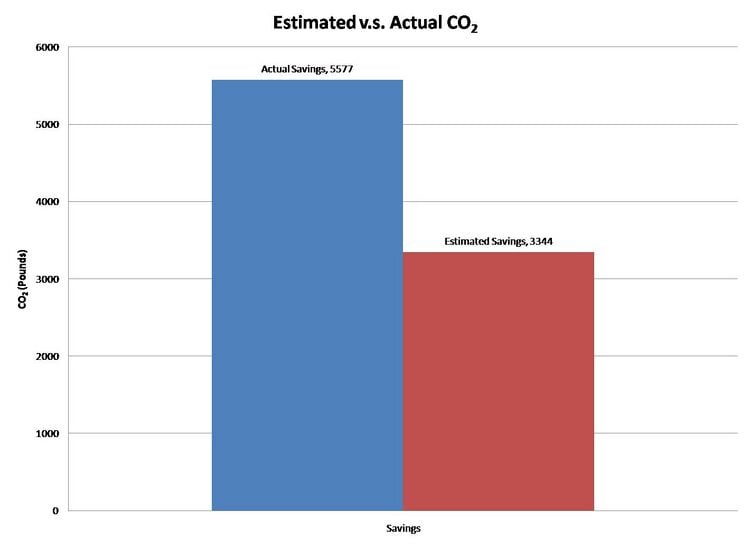

CO2 Emissions (pounds per year) 3,344 lbs CO2 per year 5,577 lbs CO2 per year 2,233 lbs CO2 per year



(FIG. 8)
(FIG. 9)
(FIG. 10)

Habit Changes After Retrofit[edit]

Working with RCEA motivated Honest Engine to continue build habits which make efforts to save energy. The RCEA retrofits revealed to them how large of an effect the efficiency changes can make. Honest Engine also now understands that the way one uses electricity can have a greater effect than the efficiency of the systems in question. These are some of the changes that Honest Engine has made to augment their energy efficiency:

  • Taking advantage of the sky lights in the ceiling. Using the sunlight that comes in through the ceiling's skylights is a better alternative to installing or turning on more lights.
  • Only half of the banks of lights are used in the parts store section like in FIG. 3 and FIG. 4. Using only the light that the employees require rather than all of the light available cuts down on the lighting costs at Honest Engine by half. This is a basic energy saving technique that can be applied to many energy uses.
  • DHL stopped using their warehouse in 2008. Now nothing is operating there to be using any electricity to be added onto Honest Engine's bill
  • Installing reflective hoods over the fluorescent lights in the garage. This was installed independently of RCEA and it projects light downwards where the light is needed rather than wasting light by illuminating the ceiling.
  • Insulating the ceiling of the garage and parts store. The insulation of the ceiling will have a positive effect on the amount of money spent on natural gas at Honest Engine.

Future Ideas[edit]

The collaboration between RCEA and Honest Engine had a positive effect toward Honest Engine which caused Honest Engine to think of future improvements to the efficiency. If Honest Engine were to implement more retrofits, it was mentioned that they would attempt to replace their natural gas powered heaters with an undecided more efficient system. This would most likely have a sizable effect on the saving earned per month on their gas bills. Honest Engine had also expressed an aspiration to implement a photovoltaic system on future Honest Engine locations. The installment of a photovoltaic system would inarguably have an effect on the savings made due to the fact that they would be generating some if not all their own electricity and would be less dependent on the resources provided by the Pacific Gas and Electric Company.

Satisfaction[edit]

Based off of an interview with Bob Neely, The Eureka Honest Engine location has been satisfied with the work that RCEA has done for them. Mr. Neely mentioned that RCEA "got in, did their job, and got out"[2] and that they were "very efficient" in how they proceeded to complete their task. When Honest Engine was questioned as to whether or not they would have completed the lighting upgrade without the assistance of RCEA, they said "maybe eventually," but definitely not in the time period that RCEA accomplished it in. Honest Engine's satisfaction is revealed by the energy saved and the money saved from the retrofit. As mentioned above, 9,960 kwH/year kilowatt hours per year and $866.96 per year have been saved, which is accommodating to Honest Engine's business needs. RCEA's work put Honest Engine in a good situation where they could save money which they are grateful for.
(FIG. 11)

References
[edit]


  1. http://www.servicelighting.com/library/panasonic_t10_fluorescent_light_bulbs_from_service_lighting.cfm
  2. (Interview) Bob Neely Oct. 28, 2009
