Project data
Authors Leah Marsan
Location Incline Village-Crystal Bay, nevada
Status Prototyped
Completed 2012
Cost USD 44
Instance of Greenhouse
OKH Manifest Open Know-How Manifest Download
Upload your project too!

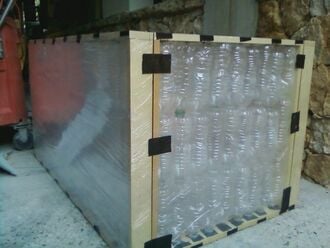

4 x 2 ft greenhouse structure using recycled 500 mL bottles that I collected from a local recycling center.

Materials[edit | edit source]

  • 500 mL plastic bottles
  • Wood
  • 2 inch wood screws
  • Saran wrap
  • Duct tape
  • Soldering iron
  • String
  • Drill

Procedure[edit | edit source]

  1. Construct each side of the green house individually
  2. Use a soldering iron to melt a hole at the bottom of the bottle
  3. Put string through bottles and tape ends on the wood, continue this step until rows completely fill each side (on the 4x2 sides there should be 54 bottles aligned, on the 2x2 side there should be 27 bottles)
  4. Saran wrap a few layers on each side, make sure there are no openings
  5. Screw the structure all together

Understanding the market[edit | edit source]

I researched some plastic bottle greenhouses and many people used 2 liter bottles, cut the bottom of the bottles and stack them. Or they would put wood rods through the bottles and line them up.

Project goals[edit | edit source]

  • Have a door hinge for the top part of my greenhouse creating easy access to plants.
  • Grow fruits and vegetables!

Design[edit | edit source]

Costs[edit | edit source]

Materials Cost
48 ft of pine wood (11/16 X 2 1/2 in) $40.00
2 inch wood screws (1 pound) $4.00

Next steps[edit | edit source]

I want to test if my design is efficient for growing fruits and vegetables, even in the cold winter months.
