The objective of this project was to develop a cost-effective composting system that is durable, educational, and safe for children gardeners to use at Catherine L. Zane Middle School in Eureka, CA. As of spring 2017, teachers at Zane had tried to adopt a couple of different composting systems for the garden, but they had to be removed for a variety of reasons. The school requested a compost system that would be educational, safe, and able to accommodate garden waste, woody debris, and organic waste from the cafeteria. The new composter at Zane Middle School is a 2-bin system. The left-side bin is used for depositing fresh organic matter, while the right-side bin houses maturing compost. The structure is painted with weather-resistant paint, which prevents the wood from warping and postpones its decomposition. It is equipped with educational posters, and is lined with hardware cloth to detour rats. Each bin has a front door to encourage ease of access, although the corrugated steel roof is too heavy. In the future, a plastic or wood roof should be used.
Background[edit | edit source]
Catherine L. Zane Middle School in Eureka, CA focuses their curriculum around science, technology, engineering, art, and math (STEAM), and caters to a diverse group of children. Zane and the Environmental Resources Engineering department at Humboldt State University have a rich history of partnership around the STEM programs. As of spring 2017, the school had tried a couple of composting systems in the past, but were faced with a variety of problems including rats, the need for excessive maintenance, and destructive children, so they removed the compost altogether.
Problem statement and criteria[edit | edit source]
The objective of this project is to develop a cost-effective composting system that will be strong and safe for the children gardeners to use. This composter will be low-maintenance, simple to use, and will accommodate a variety of garden waste, woody debris, and the occasional organic waste from the cafeteria. The design will ensure the compost is free of pests such as rats and raccoons, and will be sturdy enough to stand up to the test of rowdy middle-schoolers.
|Criteria||Constraints||Weight (0-10 high)|
|Pet Resistance||Must be rat-proof||8|
|Maintenance||Maximum of five hours of maintenance each week||5|
|Durability||Must not be easily altered by middle-schoolers||6|
|Safety||Must not be sharp or splintery||10|
|Educational Value||Includes an appropriate display for middle-schoolers||9|
|Simplicity||The compost must be accessible to the middle-schoolers||7|
|Cost||Maximum cost is not to exceed $425||4|
|Aesthetics||The aesthetics must agree with those of the garden and the school||3|
Description of final project[edit | edit source]

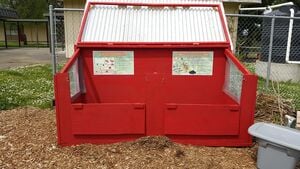

The new composter at Zane Middle School is a 2-bin system. The left-side bin is a receptacle for fresh organic matter, while the right-side bin houses maturing compost. Each bin has an attached poster that contains information for users about how to maintain the compost, and also a little bit about decomposition.

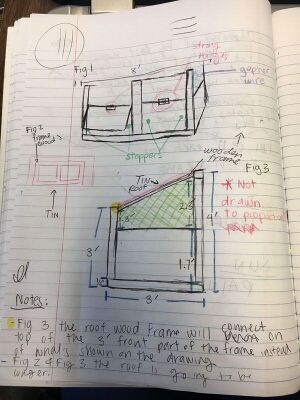

The structure is 8 feet long, 3 feet deep, and 4 feet high at its highest point. The compost is easy to access through the fold-down doors, and the slanted roof directs rain away from the compost. Together, the bins can reasonably accommodate about 18 cubic feet of compost at any given time. This leaves plenty of room for garden waste, as the only school produces about 12 cubic feet of food waste each year. The bottom is open, which will encourage exchange of decomposer organisms with the environment (like worms). The bottom is lined with 1/4" hardware cloth to keep rats from entering the compost.
Costs[edit | edit source]
The capital costs for the project stayed within the budget of $425. In total, the number of labor hours spent on the design process, from conceptualization to implementation, was 204.
|Quantity||Material||Source||Cost ($)||Total ($)|
|1||Corrugated metal, 73 sq. ft.||Arcata Scrap and Salvage||17||17|
|2||Weather-Resistant Paint (quart)||Ace Hardware||14.37||28.74|
|1||Wood Glue||Ace Hardware||3.99||3.99|
|2||Hinge (small)||Ace Hardware||4.59||9.18|
|1||Hinge (large)||Ace Hardware||5.99||5.99|
|1||Corner Brace||Ace Hardware||5.99||5.99|
|1||Mending Brace||Ace Hardware||7.99||7.99|
|2||Hook & Eye Closures (2-pack)||Ace Hardware||2.59||5.18|
|4||2 x 6 (Doug Fir)||Pierson's||6.00||24.00|
|2||4 x 8 (Cedar)||Pierson's||38.89||77.78|
|7||2 x 2 (Cedar)||Pierson's||2.00||14.00|
|6||2 x 4 (cedar)||Pierson's||3.84||23.04|
|1||2 x 2 (pine)||Pierson's||6.98||6.98|
|1||Galvanized Mesh, 2'x50' 1/4"||Ron's Home and Hardware||42.37||42.37|
|1||Staples for staple gun||Ace Hardware||4.49||4.49|
|1||5/32" Drill bit||Ace Hardware||2.59||2.59|
|1||1/4" Nut driver||Ace Hardware||4.59||4.59|
|1||Gasketed screws||Ace Hardware||9.29||9.29|
|1||Mending brace||Ace Hardware||8.59||8.59|
|1||Plasti Dip||Ace Hardware||10.08||10.08|
|1||Poster lamination||Ace Hardware||19.98||19.98|
|1||1/2" Hardware cloth||Ace Hardware||18.98||18.98|
Testing Results[edit | edit source]

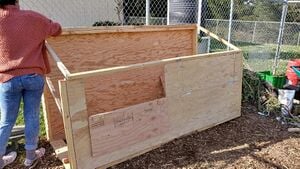

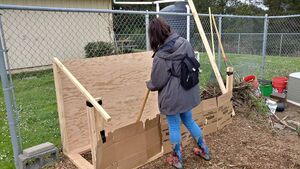

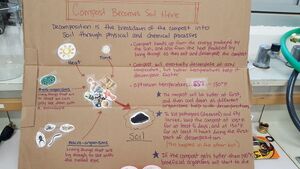

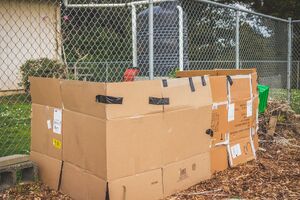

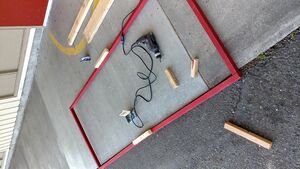

This table describes the prototyping of different components of the composing system.
How to build[edit | edit source]
How to Do Something:
Video[edit | edit source]
Maintenance[edit | edit source]
The following maintenance tasks should be completed as often as specified to ensure the ongoing success of the composting system. Neglect of any of these tasks could result in the failure of the system to produce desirable soil.
Schedule[edit | edit source]
Complete the following tasks, as often as specified.
- Add fresh compost to the bin on the left
- Add water to the compost if moisture levels are low.
- Make sure the lid and doors remain closed except when working with the compost
- Keep an eye on the temperature of both piles, relate to information found on the informational posters attached to the bins
- Turn the compost thoroughly on a weekly or bi-weekly basis, depending on temperature and moisture levels
- When the soil in the right side bin appears relatively homogeneous in texture, it can be added to the garden
- Move compost from the left-side bin to the right-side bin after the thermoplastic phase
- Make sure the hardware cloth remains securely attached to the wood
Every few years, as necessary
- Replace hinges and hooks
- Repaint/touch up with weather-resistant paint
- Replace metal wire mesh and staple as needed.
- Re-apply plastic dip to the edges of the lid
- Replace the compost thermometer
|Add compost to left-side bin||Daily||Students and teachers|
|Move left-side compost to right-side bin||Every few months||Students and teachers|
|Turn compost in each bin||Every two weeks||Students and teachers|
|Monitor for structural degradation, upkeep as necessary||Ongoing||Teachers|
|Add soil from right-side bin to the garden||As available and necessary||Students and teachers|
Instructions[edit | edit source]

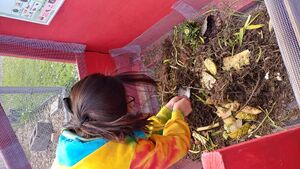

Adding Material to the Compost:
Troubleshooting[edit | edit source]
This is a list of possible problems one may encounter during regular use, and steps to resolve those problems.
|The compost is dripping wet||Add dry browns (like sawdust) and mix thoroughly|
|The compost smells like methane||Mix thoroughly, and increase the normal frequency the pile is turned|
|The compost is too hot||Turn the pile and moisten if it's dry|
|The compost is too cold||Add greens, make sure it's moist but not dripping wet, and increase the size if the pile is small.|
|The gopher wire came undone from the wood||Staple the two back together with an industrial stapler (~14 mm staples)|

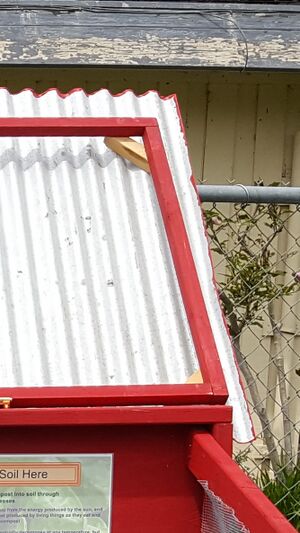

|The Plastic Dip is peeling off||Peel all of the loose ends off, and apply more with a sponge brush.|
Discussion and next steps[edit | edit source]
The client was very happy with the professional aesthetics and educational value of the final product. Although the roof is functional, it is a little on the heavy side. Hooks were installed on both sides of the roof and is designed secure it to the fence when opened. If the roof is not secured, it can act as a sail and the wind will easily blow the roof closed.
Suggestions for future changes[edit | edit source]
Although functional and sized well, the large corrugated metal roof was not ideal for this project. The roof requires too much effort to lift, both because it is so long and because it is heavy. In the future, the lid should be made from two shorter sections (one over each bin), and should be made of a relatively light material. Instead of using corrugated metal, a corrugated plastic roof would make it a lot lighter although may be more expensive to buy brand new. The wire mesh edges proved to be really sharp so if replaced, it is recommended to fold the sharp edges toward the inner walling of the compost. This is to ensure that the sharp edges are pointed inwards to prevent potential harm.
September 2019 Update[edit | edit source]
Overall the compost was well put together and stable.. The compost bin is filled with soil on one side and carbon material plus some plastic on the other side. It seems that the compost bin and the garden are not being used heavily, though this could be because of the summer break. The top lid was found to be rather heavy, stated by a teacher, this makes it difficult to use around kids. But the hooks in the fence work well. One of the posters is falling off the inside lid and the two fold-down doors were open when we found it, making it easy for pests to get in. However, no food scraps were seen inside. The school does not use too much compost, explained by a teacher who keeps it and teachers children. They also have in fava beans, kale, and squash in some beds where they use the compost. The garden is coming together as the school year starts. It seems the compost is in good use with some minor improvements necessary.
References[edit | edit source]
- Trautman, Nancy (1996). "Compost Physics - Cornell Composting." Compost Physics - Cornell Composting. N.p., Web. 01 Apr. 2017.
- University of .Illinois Extenstion (n.d.). "The Composting Process." Composting in the Home Garden - Common Questions. N.p., n.d. Web. 05 Apr. 2017.
