Coffee

Coffee (Coffea Spp.), refers to the coffee plants Arabica Coffea arabica, Robusta Coffea canephora and Liberica (Coffea liberica). Originally a plant growing wild in the forests of the Ethiopian massif,^[1] coffee has become the source of a favourite worldwide beverage.

While monkeys have been enjoying coffee beans for centuries, the use of coffee beans and leaves as a pain reliever was discovered in the fifteenth century.^[1] It was found that chewing on the leaves or beans could relieve hunger, fatigue and pain.^[1] Coffee was originally (and still is) enjoyed as a fermented alcoholic drink in East Africa.^[1] It became popular as a hot drink when taken to Europe and by 1675 there were around 3,000 coffee houses in London alone.^[1]

Around four thousand beans are required per one pound of roasted coffee.^[2] Thus, it is a heavily labour-intensive crop.

Wild coffee is under threat from habitat loss, due to forest destruction in Ethiopia.^[1] Wild coffees are a vital link to strengthening crop coffees should disease weaken the cultivated varieties.

Description[edit | edit source]

The coffee plant is a glossy leafed evergreen shrub or small tree. The leaves are relatively small and the flowers are fragrant (jasmine scented^[2]) and white in colour. Red coffee fruit, known as cherries or berries, develops from the highly scented flowers; each cherry or berry contains two seeds that are known as beans, or coffee beans.^[1]

The following image gallery shows various aspects of the coffee plant and its components. Click on any image to enlarge and see details.

•

  Coffee trees (Hawaii)

•

  Coffee flowers

•

  Coffee flowers in coffee plantation

•

  Coffee fruits (cherries or berries)

•

  Yellow coffee fruits

•

  Coffee bean structure

Coffee varieties[edit | edit source]

Coffee plants grow well in tropical and subtropical environments.^[2] For many Latin American countries, coffee is the most important crop.^[1]

Arabica coffee usually receives a premium for its superior flavour and aroma. Arabica is more suited to higher, cooler climates––for example, 600-2000m above sea level and temperatures around 15 to 20ºC.

There are many different Robusta varieties. In general, they can thrive in hotter lowland areas, namely below 900m above sea level and over 20ºC. Robusta coffee is preferred for instant coffee production due to higher soluble solid extraction.

Liberica (Coffea liberica) is a larger tree with large leaves and berries. It can tolerate hot and wet conditions. The coffee produced is bitter. This coffee variety is preferred in Malaysia and West Asia.

Growing coffee[edit | edit source]

This section needs to be added or created as a distinct page, then referred back to this section.

Harvesting[edit | edit source]

By definition, 'processing' does not involve harvesting. However, one cannot produce a good product from badly harvested materials. Correct harvesting techniques could be said to be the most important factor in the production of a high quality final product. Correct harvesting is essential. A good coffee cannot be made from poorly harvested coffee cherries.

Immature harvesting: This is the most serious problem with coffee harvesting. Under-ripe coffee cherries are very difficult to process and a low quality product is produced. One of the main causes of immature harvesting is the fear of theft. If the farmer picks it in an immature state, it reduces the possibility of theft.

Overripe coffee: With overripe coffee there is a possibility that the cherry will start fermenting, which causes deterioration in flavour.

Correct harvesting: The coffee cherries should be picked when they are bright red all over. At this stage, the bean can be squeezed out from the pulp by applying light pressure between finger and thumb.

Small scale coffee processing[edit | edit source]

Processing[edit | edit source]

There are two ways coffee can be processed - dry ('natural') processing and wet ('fermented and washed') processing. In most cases, wet processing is regarded as capable of producing a higher quality product. However, some areas prefer dry processed coffee for its 'fuller' flavour.

Dry processing: This is the simpler of the two methods and is popular in Brazil to process Robusta coffee and in Sri Lanka to process Arabica coffee.

The coffee cherries are dried immediately after harvest. This is usually sun drying on a clean dry floor or on mats.

Sun drying: The bed depth should be less than 40mm and the cherries should be raked frequently to prevent fermentation or discoloration. However, there are problems associated with this method. The most serious problem is dust and dirt blown onto the produce. Another problem is rainstorms often appear (even in the dry season) with very little warning, this can soak the produce very quickly. Finally, labour has to be employed to prevent damage or theft. Sun drying is therefore not recommended.

Solar drying: Figures 1 and 2 are designs for two solar dryers - the solar cabinet drier and the Exell solar dryer. The coffee should be placed in the trays in the solar dryer. The layer of the crop should be no deeper than one inch (3cm) and it is better if the whole tray area is covered. The dryer should be ready as early in the day as possible so that all possible sunlight hours are used. The coffee should be stirred regularly so that a uniform colouration is formed. At night, the crop should be placed in a cool dry room.

Artificial dryers: In the wet season, solar drying of produce is difficult. Rain is very unpredictable and frequent. Solar dryers will prevent the coffee getting wet. However, due to the low level of sunlight, solar drying can take a long time. This can lead to mould growth. An alternative dryer is needed.

Hulling: The dried cherry is then hulled to remove the pericarp. This can be done by hand using a pestle and mortar or in a mechanical huller. The mechanical hullers usually consist of a steel screw, the pitch of which increases as it approaches the outlet so removing the pericarp.

Cleaning: The hulled coffee is cleaned by winnowing.

Figure 1: The solar cabinet drier Figure 2: The exell solar drier - [Ed.: these need to be found/added or references removed.]

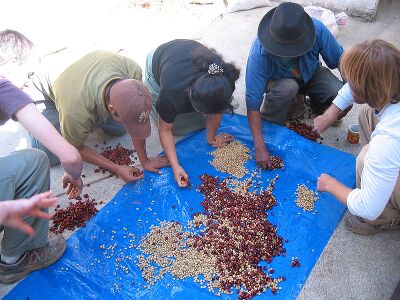

Wet processing: In this method, the coffee cherry is squeezed in a pulping machine or pestle and mortar to removes the outer fleshy material (mesocarp and exocarp). This leaves a bean covered in mucilage. This mucilage is fermented and dispersed. The bean is washed and dried.

Pulping[edit | edit source]

Pulping involves the removal of the outer red skin (exocarp) and the white fleshy pulp (mesocarp) and the separation of the pulp and beans. Immature cherries are hard and green and very difficult to pulp. If the coffee is to be wet processed, correct harvesting is essential.

For small-scale units, the cherries can be pulped in a pestle and mortar; however, this is very labour intensive. The two most common pulpers and most suitable for small-scale units are the drum and the disc pulpers.

Drum pulpers: This involves a rotating drum with a punched sheet surface and adjustable breast plate between which the coffee berries are pulped, the pulp and the beans separated, see Figure 3. [Ed: The figure needs to be placed here.] The distance between the drum and the breast plate has to be adjusted so that the pulp is removed without the beans being damaged. These can be manually operated or attached to a treadle or bicycle.

For larger scale units, motorised drum pulpers are available.

Disc pulpers: The same concept is involved with the disc pulper. The only difference is that rather than the cherries being squeezed between a breast plate and a drum, a disc with a roughened surface is used. Mucilage removal The amorphous gel of mucilage around the bean consists of hemicelluloses, pectic substances and sugars and is insoluble in water. This can be removed by chemical methods, warm water or by an 'agua pulper'.

Fermentation: However, for small-scale units, often the only feasible method is fermentation. Fermentation involves the beans being placed in plastic buckets or tanks and left until the mucilage has been broken down. Natural enzymes in the mucilage and feasts; bacteria in the environment work together to break down the mucilage. The coffee should be stirred occasionally and every so often a handful of beans should be tested by washing them in water. If the mucilage can be washed off and the beans feel gritty rather than slippery, the beans are ready. The beans should then be washed immediately as 'off' flavours develop quickly.

Drying: To prevent cracking, the coffee beans should be dried slowly to 10% moisture content (wet basis). Drying should take place immediately after, to prevent 'off' flavours developing. The same drying methods can be used for this as for the dry processed coffee.

Hulling: After drying, the coffee should be rested for 8 hours in a well ventilated place. The thin parchment around the coffee is removed either by hand, in a pestle and mortar or in a small huller.

Cleaning: The hulled coffee is cleaned by winnowing. Figure 3: Separation of pulp and beans [Ed: The figure needs to be provided.]

Roasting[edit | edit source]

The final flavour of the coffee is heavily dependent on how the beans are roasted. Roasting is a time temperature dependent process. The roasting temperature needs to be about 200ºC. The degree of roast is usually assessed visually. One method is to watch the thin white line between the two sides of the bean, when this starts to go brown the coffee is ready. As preferences vary considerably from region to region, a lot of research will need to be done to find the locally acceptable degree of roast.

Roasting methods:

• Coffee beans can be roasted in a saucepan as long as they are continually stirred.
• A small improvement is made by roasting the coffee in sand, as this provides a more even heat.
• A roaster will produce a higher quality product. The simplest roaster is basically a tin can with a handle so that it can be rotated slowly over a fire.

There are various other roasters suitable for larger scale units.

Grading[edit | edit source]

In some cases the crop needs to be graded, for example, high quality packaged products for export. Coffee is graded by size, shape, odour, density and colour.

For small-scale units, this is best done by hand.

Grinding[edit | edit source]

Grinding is a means of adding value to a product. However, it is fraught with difficulties. With a whole product it is easy to assess its quality, whereas with a ground product, it is very hard. The fear of adulteration and the use of low quality produce is justified. Because of this, there is a great deal of market resistance to ground coffee. This market resistance can only be overcome by consistently producing a good product.

There are basically two types of grinders - manual grinders and motorized grinders.

Manual grinding mills: There are many manual grinders that could be used to grind coffee. An experienced operator can grind about 20kg in an eight hour day. However, this is hard and boring work. A treadle or bicycle could easily be attached to the grinder, which will make the work easier. With this system, one person could grind about 30kg in one day. For small-scale production (up to 100kg/day) a series of these grinders is all that is needed.

Work needs to be done to find out the degree of fineness the consumer wants. The grinding mills then need to be set so that they produce the desired ground product.

For larger scale production units, a motorised grinder would be required.

Motorised grinding mills: Horizontal plate, vertical plate or hammer mills are suitable for grinding coffee. A grinding mill has to be placed in a separate and well-ventilated room because of the dust. As above, the grinding mill needs to be adjusted so that it grinds the coffee to the desired fineness.

Instant coffee[edit | edit source]

The production of instant coffee is unsuitable for small-scale enterprises as it requires very expensive machinery, for example, an extractor and a freeze or spray dryer. A report by the Natural Resource Institute (NRI) states that the smallest economically viable instant coffee factory is 1000 tons/year in India. Various people are trying to design machinery suitable for small-scale production of instant coffee which may be able to reduce the throughput necessary for economic viability. To produce an instant coffee, the soluble coffee solid and volatile compounds have to be extracted and then dried into a powder or granules.

Prestripping: Sometimes the volatile compounds (of which there are over 700) are removed before the extraction of soluble coffee solids. This is usually done by passing steam through a bed of ground and roast coffee. The initial steam pressure has to be high enough for the steam to pass through a static bed of coffee. The extracts and steam are condensed to give a mixture of water and volatile compounds. These compounds can be condensed using a tubular condenser with chilled water flowing through it.

Extraction of soluble coffee solids: The extraction of soluble coffee solids is usually done using water as the solvent. Extraction is continued until the solution obtained is 15-25% w/w. The extraction is usually done at 175ºC since at 100ºC the extracted solids are difficult to dry. There are three ways the solids can be extracted:

• Percolation batteries: This is the most common method. The roast and ground coffee is held in a series of 5-8 vessels. Hot water is passed through the vessels and, when the soluble coffee solids have been fully extracted from each vessel, it is isolated from the battery and spent coffee discharged. A new vessel replaces this exhausted vessel, see Figure 4. (Ed: The figure needs to be added.) As the extraction takes place at 175ºC, the system needs to be under pressure. A solution of 15-25% w/w solubles is produced which can then be dried.
• Countercurrent system: Coffee is fed continuously into the bottom of an inclined cylindrical vessel and moved upwards by two helicoidal screws rotating at 10-22 revolutions per hour. Hot water enters the top and the extracted solids in, solution comes out the bottom. The vessel is pressurised and kept at 180ºC by the use of temperature jackets. This is even less suitable for small-scale production as it is 40% more expensive than the percolation battery system.
• Slurry extraction: Coffee and water are agitated together in a tank and separated using a centrifuge. The machinery for this is also very expensive.

Drying: The extracts can be dried in a spray drier, freeze drier or a drum drier.

Spray drying: Spray drying requires that the concentrated coffee solutions extracted are 'atomised' to form droplets (10-200 micrometers in diameter) and then sprayed into a current of heated air (150-300ºC) in a large drying chamber, this is usually a concurrent air flow. Complete and uniform atomisation is required.

For coffee drying, a centrifugal atomiser is usually used. The liquid is fed to the middle of a rotating bowl (peripheral velocity of 90-200m/s). This produces droplets with diameters of 50-60 micrometers in a uniform spray. The droplets are dried very rapidly (1-10 seconds) due to the very large surface areas. The dry powder is removed from the base by a screw conveyor or a pneumatic system. Spray driers are very expensive and can have high energy costs.

Freeze drying: Freeze drying takes place by sublimation (ie liquid turning to vapour). The liquid is slowly frozen in conventional freezing equipment. The frozen material is put under pressure (610pa) and heated. As long as the pressure in the freeze drier is below the vapour pressure at the surface of the material, it will sublime directly to vapour without melting. The vapour needs to be removed by a vacuum pump and condensed on refrigeration coils. The final drying stage involves evaporative drying (desorption). This is achieved by raising the temperature to near ambient whilst retaining the low pressure. Coffee needs to be frozen as a foam (by gas inclusion) to prevent formation of a glassy vitreous frozen material. All the equipment available for freeze drying (for example, contact freeze dryers, accelerated freeze driers and microwave freeze dryers) is very expensive.

Drum drying: This is rare nowadays. It involves the extracts being dried by coming into contact with a heated cylindrical surface.

Packaging[edit | edit source]

Packaging of coffee, especially if it is ground, requires polypropylene. Polythene cannot be used as the flavour components diffuse through it. The use of laminates is popular but more expensive.

Simple sealing: The bags can be sealed simply by folding the polypropylene over a hacksaw blade and drawing it slowly over the flame of a candle. However, this is extremely uncomfortable as the hacksaw blade heats up and burns the hands of the operator.

Sealing machines: A sealing machine will speed up this operation considerably and produce a much tidier finish (which is very important). The cheapest sealing machines have no timing mechanisms to show when the bag is sealed and they have a tendency to overheat. Sealing machines with timers are desirable. The machines come in many sizes. For most work an eight inch (20cm) sealer is sufficient.

Eye catching labels should be sealed above the product in a separate compartment and holed so that the package can be hung up in the shop.

Storage[edit | edit source]

A well designed and secure store is essential. The optimal conditions for a store are a low temperature, low humidity and free from pests. The store should be located in a shaded, dry place. To keep humidity as low as possible only fully dried products should be stored in it. The produce should be checked regularly and,if it has absorbed too much moisture, it should be dried again.

To prevent pests entering, the roof should be completely sealed. Mosquito netting should be placed over the windows, and the doors should be close fitting.

Waste products[edit | edit source]

Coffee processing waste (coffee pulp): If not treated, this will give rise to unpleasant odours and attract flies and insects. It can be converted into animal feed, soil conditioner, or used for caffeine extraction and biogas production.

Waste water: Care needs to be taken to prevent water from the processing, polluting local rivers or lakes.

Equipment suppliers[edit | edit source]

Note: This is a selective list of suppliers and does not imply [ITDG] endorsement:

• Hand operated drum coffee pulpers: Tropic Coffee Pulper Tropic BP 706 Douala Cameroon; Anguh Coffee Pulper BA Anguh Agric Tools Industry BP 43 Samenda Cameroon; McKinnon's Atom Coffee Pulper W M McKinnon and Company Limited Spring Garden Iron Works Aberdeen UK; Bentall Super Nova Denlab International (UK) Limited Friary Lane 40 White Horse Lane Maldon UK Hand operated disc coffee pulpers; McKinnon's Disc Coffee Pulper W M McKinnon and Company Limited Spring Garden Iron Works Aberdeen UK; Gordons's 'Irima 67' Disc Coffee Pulper John Gordon & Company (Engineers) Limited 198a High Street Epping Essex UK; K Kay Coffee Pulper K Kay Engineering Box 18464 Nairobi Kenya
• Powdered coffee pulpers: Multi Disc Coffee Pulper W M McKinnon & Company Limited Spring Garden Iron Works Aberdeen UK; Coffee Pulper Penagos Hermanos & CIA LTDA Calle 28 No 20-80 Apartado Carreos 689 Bucaramanga Colombia
• Coffee hullers: AHO - AH1 - AH4 Denlab International (UK) Limited Friary Lane 40 White Horse Lane Maldon UK; Coffee Hullers - Bukaba - Africa No 2 - Africa No 5 - Africa No 10 John Gordon & Company (Engineers) Limited 198a High Street Epping Essex UK Africa' Coffee Huller W M McKinnon & Company Limited Spring Garden Iron Works Aberdeen UK Coffee driers Sterling Coffee Drier W M McKinnon & Company Limited Spring Garden Iron Works Aberdeen UK Coffee roasters
• Horizontal drum coffee roasters: Technonet Asia Model Technonet Asia U P Institute for Small Scale Industries Phillipines Probat-Werke Emmerich Germany (BDR) Burns Thermals Jabez Burns Blaw Knox USA Barth Tornado G W Barth Ludwigsberg Germany (BDR)
• Vertical drum coffee roasters: Gothot Rapido Nova Gothot Company Emmerich-Ruhr Germany
• Rotary bowl coffee roasters: Radical Turbo Roaster Probat-Werke Emmerich Germany Prestrippers APV Co Alfa Laval
• Percolation batteries: Niro atomizer A/S Kopenhavn Denmark Countercurrent screw extractor Niro atomizer A/S Kopenhavn Denmark
• Spray dryers: Niro atomizer A/S Kopnhavn Denmark

Sources and citations[edit | edit source]

• Catherine Atkinson, Mary Banks, Christine France and Christine McFadden. (2009) The Chocolate and Coffee Bible. ISBN 978-1-84477-385-5
• Anthony Huxley. (1991) Green Inheritance. The WWF Book of Plants. ISBN 1-85675-000-0
