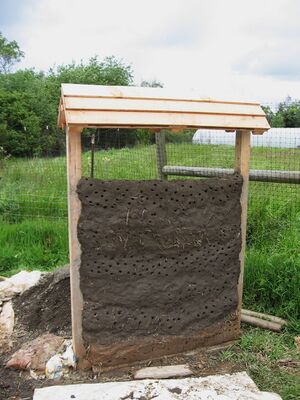

Our project as of May 10, 2010.
FA info icon.svg Angle down icon.svg Project data
Type Cobb construction
Authors Luke Pedersen
Location Arcata, California
Status Deployed
Made Yes
Cost USD 161.55
OKH Manifest Download

The Arcata Educational Farm has been operating as a CSA (Community-Supported Agriculture establishment) in Arcata, California since 1993. This farm allows students, residents, and local farmers to work side-by-side in their efforts to accomplish goals such as sustainable agriculture and valuable work experience. The farm also allows fresh organic produce to be sold as shares to stockholders and members of the organization. As students enrolled in the ENGR305 class, we decided to build an earthen informational kiosk at the entrance of the farm. The earthen wall will be constructed with a cobb base, and will then be coated with an earthen plaster finish. The kiosk will serve not only as an entrance piece to the farm but also as a place to learn about current and past projects constructed at this site. Projects such as the AEF solar water heater, or the AEF spiral herb garden.

Opportunity Definition[edit | edit source]

mqdefault.jpgYouTube_icon.svg
Who
Luke Pedersen and Andrew Spickerman are working with the Arcata Educational Farm.
What
The project is to build an earthen kiosk at the entrance of the garden.
When
The informational kiosk will take approximately fifteen weeks to complete and will be finished by May 15th, 2010.
Where
930 Old Arcata Road
Arcata, CA 95521
Why
The practical purposes of this wall would be to serve as an entrance piece and as a place to obtain information about the farm. Most importantly it would serve as an educational tool based at the farm.

Literature Review[edit | edit source]

Gathering Materials[edit | edit source]

It is a good idea to use as many on-site or nearby materials as possible when working with cobb. Cobb requires a vast amount of materials that are very labor and time-intensive to acquire. Here is a list of the materials you will need:

  • Water and a way to transport it to the construction site
  • Clay, Sand, and Straw which are the key building materials used for cobb
  • Foundation: Cement, Stone, and Mortar are examples of what can be used
  • A reliable Vehicle to transport materials
  • Roofing to protect the wall from the elements: A variety of different types of roofing can be used
  • Tarps to mix your cob
  • Multipurpose buckets: The more the better
  • Carpentry tools such as hammers, nails, screws, levels, measuring tape, etc.
  • Earth moving tools such as shovels and wheel barrels
  • Plastering tools and materials: horse or cow manure, clays with pigment, trowels, and smoothing tools such as paintbrushes
  • Lots of friends to help build[1]

Testing[edit | edit source]

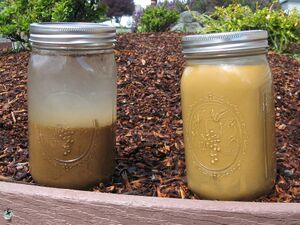

The jar on the left has settled out, and the jar on the right was recently shaken.

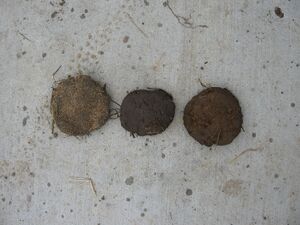

We chose the middle brick for 2:3 sand to clay. All the bricks had the same amount of straw.

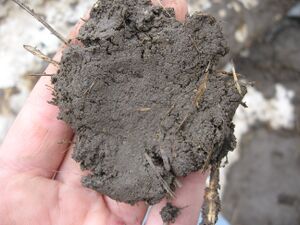

A closeup of what our bricks looked like prior to putting them up on the wall.

Testing Clay Content:

The soil shake test is used to determine how much clay is in the makeup of the soil. This simple process involves filling a glass jar with water and soil which is then shaken vigorously for up to a minute. The jar should be left undisturbed for roughly 24 hours, or until the contents of the jar have completely settled. The sand will settle first at the bottom, with the silt settling second on top of the sand. The clay will take the longest to settle on top of the silt, and the organic materials will float to the top of the water.

Test Bricks:

Test bricks are constructed to find the best ratio of sand to clay to straw. After the soil shake test has determined the makeup of the soil, the builder will then be able to decide whether to add excess sand or clay to the mixture. One effective method is to make test bricks with more and more sand until the brick no longer holds together, which is a clear indicator of too much sand in the mixture. The builder should make at least three different samples of clay/sand mixtures, which will allow for different amounts of straw to be added accordingly to each brick.

Once The Bricks Have Dried

There is too much sand in the mixture if sand can easily be rubbed off of the finished bricks. There is too much clay in the mixture if the finished bricks have numerous cracks when dried. The strength of the bricks can also be tested by holding them at various distances to the ground and allowing them to drop. The mixtures that yield the strongest bricks should be considered.

Building a foundation[edit | edit source]

The first thing that needs to be considered when laying a foundation is to have a loose aggregate added directly underneath and around the actual cob wall. We laid crushed gravel under are the foundation to serve as a stopgap, which will keep the immediate area free from becoming muddy during the winter season. After we laid our crushed gravel, we decided to go with a poured cement slab as our foundation. We first needed to build and align a form that served as retaining walls for our poured cement. Once we built the form, we evened out the gravel area using a level and hammered numerous 18-inch stakes around the perimeter. We than poured approximately six inches of cement into our securely held form, and allowed it to dry for 72 hours. Once the slab had dried, we removed the form by hammering each board away from the slab which left us with a rectangular slab of cement that was 5 feet long, 15 inches wide, and 6 inches deep.[2]

Making Cob[edit | edit source]

Cob is created by using a combination of compression and mixing. The way we decided to do this was we piled a mixture of two parts sand and one part clay onto a tarp. We than repeatedly stomped the mixture together with our feet, and rolled the tarp upon itself, making cigar shaped piles of clay and sand. Once the mixture was similar to coarse clay, we added straw to the mix and continued to roll and stomp. Once the consistency had changed from a dough like texture to that with much more plasticity, we added the straw and began forming bricks to add to our wall. If the mix is too dry and the straw does not take, this is the builders cue to add more water. If the mix is too wet, than the bricks will begin to sag to one side of the wall after they have been applied. This is the problem we repeatedly faced during this project because we live in such a wet community..[3]

Plastering[edit | edit source]

In order to protect the wall from the elements, and to enhance its visual appeal, we decided to use a lime plaster. Lime is used because it allows moisture to transpire across, but does not get soft itself. It is also extremely weather durable and resistant to cracking. Lime plaster is made from a lime morter, sand, and water.[4] In order to give the lime a better color, we mixed in an iron oxide (red) pigment.

Criteria[edit | edit source]

These are the most heavily weighted criteria. We weighted each criteria on a 1-10 scale, based on importantance, with 10 being the highest.

Criteria, Constraints, and Weights for the Arcata Educational Farm Earthen Oven Criteria Constraint Weight
Cost We would like this project to cost no more than $200 dollars 5
Aesthetics We want this to be a symbol of pride for the farm since it is at the immediate entrance 4
Educational Value It must have enough space to post as many informational documents as possible 10
Maintainability The wall must be strong and require very little maintenance (<1 hour) on an yearly basis 7
Sustainability The use of common, local, and low impact materials 5
Durability We want this wall to stand for at least ten to fifteen years 10

Additional Considerations[edit | edit source]

  • Color
  • Glass enclosurement to protect information pamphlets
  • Simple frame and roof design
  • Six-foot frame with five feet of earthen wall

Costs[edit | edit source]

There are a multitude of ways to construct an earthen kiosk. The wall itself will use a cob building technique which is primarily made of earthen materials. Much of this earthen material was acquired at the Arcata Educational Farm instead of purchasing them from a store. Gathering on-site materials will greatly reduce the price of constructing an earthen wall. A large portion of the overall cost will be associated with building the support frame, roof, and foundation. Donated or salvaged goods are a good way to reduce the total overall spending.

Quantity Material Source Cost ($) Total ($)
1 2" C-clamp Arcata Lumber 2.29 2.29
1 Rice Straw Bale Three G's Hay & Grain 6.75 7.34
9 cubic feet Crushed Rock Eureka Ready Mix Donated 0
About 6 Gallons Gasoline (transportation) Shell Gas 3.25 20.00
6 80-lb. Concrete Ready Mix Bags Arcata Lumber 4.99 29.94
1 2x4 Fir Post Arcata Lumber 2.24 2.24
Lots Clay On-Site 0 0
Lots Sand On-Site 0 0
1 4x8 Plywood Board Arcata Lumber 11.99 11.99
1 Claw Hammer Ace Hardware 8.99 8.99
1 Measuring Tape Ace Hardware 5.49 5.49
1 9" Level Ace Hardware 4.29 4.29
6 1x6x6 Cedar Panels Arcata Lumber 1.99 11.94
3 4x4 Fir Post Arcata Lumber 8.32 24.96
Lots Nails Arcata Lumber Various Prices For Various Sizes 11.18
.5 lbs Screws Arcata Lumber 2.59/pound 1.35
2 Post-Base Attachments Arcata Lumber 5.29 10.58
3 50-lb Fence Post Mix Arcata Lumber 2.99 8.97
Total Cost $161.55

Project Timeline[edit | edit source]

This timeline was designed during the early stages of this project to keep us on a timeline that would allow us to finish the kiosk on time

ITEM PROPOSED DATE DATE MET?
Obtain all materials 4/09/10 Completed
Lay Gravel 4/09/10 Completed
Construct foundation 4/12/10 Completed
Begin cob construction 4/16/10 Completed
Begin roof construction 4/16/10 Completed
Finish all construction 5/10/10 Not Yet

Update October 2013[edit | edit source]

Myself [Drew[1]] and project partner [Annika[2]] visited the Bayside Park Farm during the second week of October. During this visit, we evaluated the current condition of this project. Unfortunately, the info kiosk described in this project posting no longer exists at the farm. After talking with current Co-Farmers Jayme and Leandra, we were able to gather some information about the unsuccessful project. What we now know is that this project was never fully executed and it is believed that the leaders ran into proposal issues with the city. We are still unsure if the wall was ever finished because Jayme told us that before the wall was removed it had become very moist/soft and began to collapse. This absorption of moisture may suggest that either a) the wall was never finished or b) the lime plaster that is mentioned above may not have been the best protective shell for this wall constructed of natural material. In short, the natural material info kiosk is gone and has been replaced by a wooden information kiosk. Please refer to the photo below to see the current kiosk. This new kiosk is primarily used to inform the public and farmers about the community garden side of the farm.

Related projects[edit | edit source]

References[edit | edit source]

  1. Bee, Becky. The Cob Builders Handbook. Grove City, PA: Jenkins Publishing, 1997. 13-14. Print.
  2. How To Build Walks, Walls, & Patio Floors. 2nd ed.. Menlo Park, CA: Sunset Books, 1963. 29-31. Print.
  3. Bee, Becky. The Cob Builders Handbook. Grove City, PA: Jenkins Publishing, 1997. 20-24. Print.
  4. Hagsten, Ellen. Traditional & Sustainable Building. 2007. Print.
