Title: Modular Regenerative Urban Infrastructure (MRUI): The "SRI" Standard

License Declaration:

Commercial License: CC0 1.0 Universal (Public Domain Dedication) / MIT License Equivalent. Statement of Rights: The design files, specifications, and methodologies contained herein are released into the public domain. All intellectual property rights are waived. Municipalities, private contractors, and civil engineering firms are granted immediate, royalty-free permission to manufacture, modify, rebrand, and deploy this system without legal encumbrance. No attribution is required, though reference to the open-source standard is encouraged to ensure component interoperability.

Sustainable Road Infrastructure (SRI) represents a paradigm shift from linear, high-maintenance pavement systems to a modular, circular-economy asset class. Designed to address the increasing fiscal burdens of urban heat island mitigation, stormwater management (SUDS), and utility maintenance, the SRI system replaces impervious asphalt with a permeable, interlocking modular grid.

By utilizing 100% Recycled Construction & Demolition (C&D) waste and post-consumer polymers, the SRI system transforms municipal waste streams into load-bearing infrastructure. The system features a non-destructive maintenance protocol, allowing utility access via "lift-and-replace" methodology, eliminating the repetitive capital costs associated with trenching, resurfacing, and pothole repair. This document outlines the technical specifications for a zero-waste, flood-resilient urban surface designed for rapid, low-skill deployment and high-margin waste valorization.

Section 2: Operational Liabilities of Conventional Infrastructure

2.1 The Utility Access Paradox (The "Pothole Cycle")

Traditional bituminous surfacing (asphalt) creates a monolithic seal over essential subterranean utilities (water, gas, electric, fiber). Accessing these utilities requires destructive trenching, which degrades the structural integrity of the road surface by up to 40% per intervention. This creates a perpetual cycle of patching, pothole formation, and resurfacing, representing a significant unrecoverable cost (OPEX) for municipal budgets.

2.2 Hydrological Failure (Flood Risk)

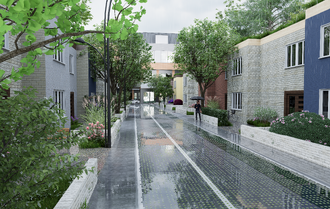

Impermeable surfaces contribute directly to pluvial flash flooding by preventing infiltration. This forces municipalities to invest in expensive, high-maintenance storm drain systems (gray infrastructure) which frequently reach capacity during extreme weather events, resulting in high insurance liabilities and contamination of local water bodies.

2.3 Thermal Inefficiency (Urban Heat Island)

Conventional dark aggregate surfaces absorb solar radiation, retaining heat and increasing ambient urban temperatures. This "Urban Heat Island" effect increases the energy load on adjacent buildings (AC costs) and accelerates the degradation of the pavement binder itself.

Section 3: The SRI Technical Specification

3.1 System Architecture

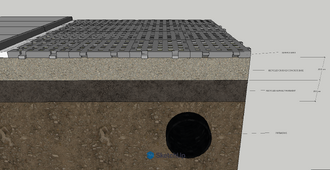

The SRI is a modular, gravity-stabilized pavement system designed for Category 4 Urban Environments (Residential, Light Commercial, and Pedestrian/Cycle Zones). The assembly consists of three integrated strata:

Layer A: The Bio-Polymer Grid (Surface)

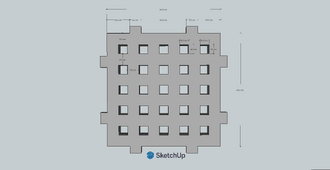

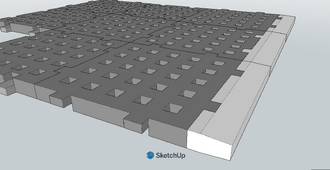

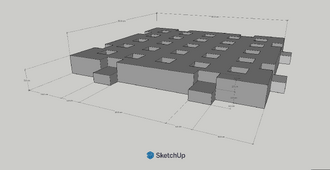

A 50cm x 50cm interlocking unit manufactured from 100% Recycled HDPE/PP. The grid provides structural load transfer while housing the biological infill. Features a rotational interlocking mechanism for rapid deployment.

Layer B: The Biological Infill (Active Layer)

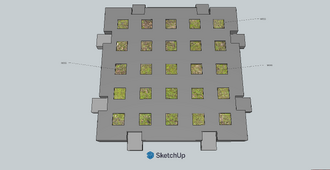

A Moss/Substrate matrix engineered for CO2 sequestration, particulate matter capture, and evaporative cooling. This layer acts as a permeable membrane, allowing 100% water infiltration.

Layer C: The Recycled Aggregate Reservoir (Base)

A sub-surface layer of Recycled Crushed Concrete (RCC) and Recycled Asphalt Pavement (RAP). This layer functions as a structural foundation and an on-site stormwater retention tank, releasing water slowly back into the groundwater table (groundwater recharge).

3.2 Non-Destructive Maintenance Protocol

Unlike asphalt, the SRI system allows for Non-Destructive Utility Access. Individual modules can be unlocked, lifted, and stored during pipe repair, then re-installed with zero material waste and zero cure time. This effectively eliminates the "patching cost" from the municipal budget.

3.3 Integral Traffic Signaling

The SRI system eliminates the need for surface-applied road paints (thermoplastics/epoxy), which are prone to abrasion, fading, and microplastic shedding.

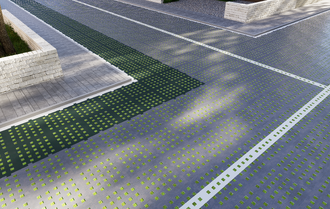

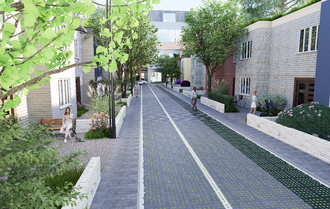

• Full-Depth Pigmentation: Traffic signaling (Lane Dividers, Zebra Crossings, Parking Bays) is achieved by installing pre-colored modules (White, Yellow, Blue, Red) manufactured with UV-stabilized pigments during the molding process.
• Permanent Contrast: Because the color is integral to the 50mm depth of the block, the marking cannot "fade" or wear off. The visual contrast remains constant for the lifespan of the road (50+ years).
• Modular Reconfiguration: Traffic flow changes (e.g., converting a vehicle lane to a cycle lane) are executed by physically swapping the colored blocks, rather than expensive hydro-blasting of old paint and re-application.

Section 4: Economic Valorization Model

4.1 Waste Stream Valorization (Circular Economy Input)

The SRI production model decouples infrastructure costs from volatile global oil prices (bitumen). Instead, it utilizes negative-value waste streams.

• Input Material: Municipal mixed plastics (HDPE/PP) and Construction & Demolition (C&D) rubble.
• Economic Advantage: By acting as a "sink" for local waste, the manufacturer can negotiate tipping fees (getting paid to take the raw material) or acquire feedstock at near-zero cost. This creates a raw material cost advantage of -15% to -40% compared to virgin asphalt production.

4.2 OPEX Reduction

While the initial Capital Expenditure (CapEx) for modular installation is comparable to high-quality paving, the Operating Expenditure (OpEx) offers a projected 60-80% reduction over a 20-year lifecycle.

• Elimination of Resurfacing: Modules are durable (>50 years) and do not suffer from thermal cracking or potholes.
• Elimination of Line Marking Budget: The integral pigmentation removes the requirement for annual road marking maintenance contracts, reducing the Total Cost of Ownership (TCO) by an estimated 15-20% over the asset lifespan.
• Targeted Repair: Damage is isolated to single 50cm units, allowing for micro-repairs rather than lane-wide resurfacing.
• Reduced Insurance Premiums: The flood mitigation properties (SUDS compliance) significantly lower liability for municipal insurers regarding property flood damage.

Section 5: Manufacturing & Deployment Protocol

5.1 Fabrication Methodology

The surface modules are designed for High-Volume Low-Pressure (HVLP) Injection Molding or Compression Molding using recycled polymer flakes.

• Standardization: The geometry is optimized for stackability to minimize logistics costs.
• Regional Manufacturing: The molds are designed to be deployed to regional waste processing centers, allowing cities to print their own roads using their own waste, eliminating long-haul transport emissions and costs.

5.2 Installation Workflow

Installation requires no heavy rolling machinery or hot-mix plants.

1. Excavation: Standard trenching to 400mm.
2. Reservoir Placement: Compacting the Recycled Crushed Concrete (RCC) base.
3. Grid Assembly: Hand-placed interlocking of the Polymer Grid units (approx. 150m² per worker/day).
4. Infill: Mechanical spreading of the biological substrate.

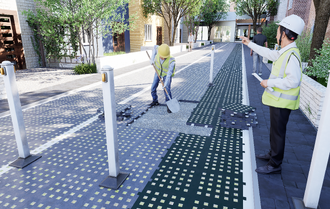

5. Utility Access: Future access is achieved by un-clicking the requisite modules, performing the repair, and re-clicking the modules. Zero curing time. Traffic can resume immediately.

Section 6: Limitations & Operational Parameters

6.1 Load Classification

The Standard SRI Module is rated for Class 2 and Class 3 roadways (Residential Access, Parking Facilities, and Municipal High Streets).

• Max Axle Load: 8,000 kg (Standard Municipal Service Vehicles / Fire Apparatus).
• Speed Limit: <50 km/h (Urban Zones).
• Exclusion Zone: Not certified for Class 1 Motorways or Heavy Industrial Transport routes without specific reinforcement upgrades.

6.2 Winter Maintenance Protocol

Prohibited: Sodium Chloride (Rock Salt) usage is discouraged as it affects the biological infill. Approved: Grit/Sand spreading or Potassium Formate de-icers. The permeable nature of the surface naturally prevents "Black Ice" formation by eliminating standing water, significantly reducing the need for chemical de-icing intervention.

Section 7: Resources and Assets

Open Source Repository:The following files are provided under CC0 / MIT License for immediate fabrication.

File:Schemes.zip
