TissueDB/Materials/Bamboo
CC BY-SA 4.0 by Jules Verne Times Two

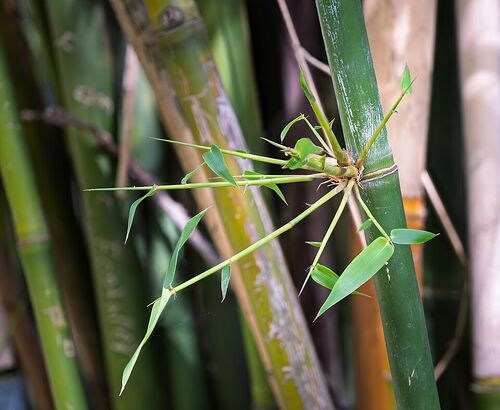

Bamboo is a lightweight, rigid, natural material with hollow structure and high strength-to-weight ratio, well-suited for simulating long bones, structural supports, and fixation frames. Global availability and ease of cutting make it suitable for orthopedic training in resource-constrained settings.
Tissues
| Tissue | Visual | Tactile | Simulator | Notes |
|---|---|---|---|---|
| Bone (long bone) | Yes | Yes | Long Bone Drilling Simulator | Cut 20–25 mm diameter segments to 15–20 cm lengths. Hollow core allows pin placement and drilling resistance. Thin bamboo rods (3–5 mm skewers) also serve as probe and frame elements in external fixation trainers. |
Troubleshooting
- Procedures requiring uniform density — Bamboo has nodes and variable wall thickness that create unpredictable drilling resistance.
- Intramedullary nailing simulation — The hollow interior provides no resistance to reamers or nails.
- Standardized assessment — Natural variability prevents consistent evaluation between trainees.
Alternatives
| Alternative | Best For | Trade-offs |
|---|---|---|
| PVC pipe | Uniform diameter; consistent drilling | Lacks natural bone appearance |
References
[edit source]
Overview
[edit source]Bamboo is a natural plant fiber material (grass family) used for low-cost orthopedic simulation. Key properties include lightweight rigidity, hollow structure, and high strength-to-weight ratio. Widely available from garden centres, craft suppliers, and local groves. Shelf life is indefinite when kept dry. Cost is very low. Reusable for 20–50 sessions before material fatigue.
Synonyms
[edit source]Common names: Bamboo rod, Bamboo pole, Bamboo stake, Bamboo skewer, Natural bamboo
Forms: Bamboo stick, Bamboo dowel, Bamboo tube, Solid bamboo rod, Hollow bamboo
Diameter variations: Thin bamboo (3–5 mm), Medium bamboo (8–15 mm), Thick bamboo (20–30 mm)
Regional terms: Bambu (Spanish), Bambou (French), Bambus (German), Bambu (Italian)
Shelf Life & Storage
| Temp Range | Humidity | Surface Reuse | Shelf Life | Spoilage |
|---|---|---|---|---|
| Ambient (15–25 °C) | Low preferred (<50%) | 20–50 sessions | Indefinite (dry storage) | Splits with moisture absorption; splinters develop with repeated use |
Clinical Context for Simulation
[edit source]Bamboo provides an accessible substitute for long bone structures in orthopedic simulation, particularly in resource-limited settings where synthetic alternatives may be unavailable or cost-prohibitive. The natural hollow structure mimics cortical bone geometry for drilling and pin placement practice. Its global availability makes it a practical choice for sustainable, low-cost simulation infrastructure.
Training applications include drilling technique basics (hollow core provides realistic drilling resistance for entry and depth control), pin placement and fixation (hollow interior accepts pins and fixation hardware), and frame construction (thin bamboo rods serve as probe equivalents and frame elements).
Processing & Preparation
[edit source]Source bamboo from garden centres, craft suppliers, or bamboo groves local to the training site. Select 20–30 mm diameter for long bone simulation; verify structural integrity before use. Test-drill several pieces to assess resistance variation before training deployment.
Cut to appropriate length (typically 15–20 cm segments for drilling practice) using hacksaw or hand saw. Smooth cut edges with sandpaper to prevent splinters. For fixation frame applications, use thinner bamboo rods (3–5 mm diameter) as probe equivalents.
Allow freshly cut bamboo to dry for 24–48 hours before use to reach stable moisture content. Drilling resistance may vary between pieces; select pieces with consistent feel for standardised training.
Store in dry conditions at ambient temperature. Maintain low humidity (<50%) to prevent splitting and moisture-induced swelling. Discard bamboo with deep cracks, heavy splinter formation, or compromised structural integrity.
Safety Considerations
[edit source]- Splinters — Sand cut edges and ends thoroughly to prevent splinter injuries. Inspect regularly for splinter development during use.
- Moisture sensitivity — Bamboo splits with prolonged humidity exposure. Store in dry environment; discard pieces showing cracks.
- Variable properties — Natural nodes create inconsistent drilling resistance. Select pieces with minimal node variation for standardised training.
- Dust inhalation — Cutting and sanding produces bamboo particles; use dust mask and adequate ventilation.
Related Materials
[edit source]- PVC — Uniform synthetic alternative for standardised drilling assessment
- Animal bone — Natural option with realistic cortical/cancellous differentiation
