Micro flow meter

A micro flow meter (also written microflow meter) is an instrument designed to measure very small rates of fluid flow, particularly in microfluidic and miniaturized fluid-handling systems.^[1] Depending on its operating principle, it may measure volumetric flow, mass flow, local fluid velocity, or a physical quantity from which the flow rate is inferred. Micromachining makes it possible to integrate heaters, temperature detectors, mechanical structures, electrical elements and signal-processing components within or immediately adjacent to a microchannel, allowing flow sensing to be performed with substantially smaller device dimensions and internal fluid volumes than are typical of conventional industrial flowmeters.^[2]

Micro flow meters are used in fields including lab-on-a-chip systems, analytical chemistry, biomedical instrumentation, infusion monitoring and precision fluid control.^[3] In many designs the sensing element forms an integral part of the microfluidic device itself rather than being connected as a separate instrument; conductive flexible membranes, for example, have been demonstrated as integrated pressure and flow-sensing structures fabricated directly within microfluidic systems.^[4] The term therefore describes a class of instruments rather than a single measurement technology.

Micro flow meters can be classified according to the physical interaction used to convert fluid motion into a measurable signal.^[5] Important approaches include thermal, mechanical, piezoresistive, Coriolis, optical, electromagnetic, pressure-based and, more recently, piezoelectric sensing. Their performance depends not only on the transduction mechanism but also on channel geometry, fluid properties, thermal boundary conditions and the method by which the sensor is calibrated.

Thermal micro flow meters exploit the transport of heat by a moving fluid.^[6] A miniature resistive element is heated and the resulting temperature field, electrical resistance or required heating power is monitored. Micromachined thermal sensors are commonly divided into hot-wire or hot-film, calorimetric and thermal time-of-flight configurations,^[7] with each mode emphasizing a different relationship between convection, temperature and flow.

In a calorimetric sensor, a heater is normally positioned between upstream and downstream temperature-sensitive elements. At zero flow the temperature field is approximately symmetric, whereas fluid motion transports heat downstream and produces a measurable temperature difference. Constant-power operation measures the resulting heater temperature, while constant-temperature operation varies electrical power to maintain a prescribed temperature. A miniaturized platinum-heater device developed for drug-injection monitoring, for example, reported an uncertainty of approximately 2.36 ± 0.80% over a tested flow range of 0.5–2.5 g/h.^[8] Such systems are attractive because the sensing structure can contain no mechanically moving components.

Thermal time-of-flight sensing uses a transient rather than a purely steady temperature field.^[9] A brief thermal disturbance is generated and detected farther along the flow path; its transit characteristics depend on fluid velocity. The technique can provide information about velocity and fluid properties in addition to conventional flow output,^[10] although thermal diffusion becomes increasingly important as velocity decreases. Sensor spacing, pulse duration, heater dimensions and thermal isolation therefore affect the usable measurement range.

Integration can also alter the trade-off between sensitivity and robustness. A membrane-free silicon-on-glass thermal sensor has been demonstrated with its thermoresistive elements isolated from the microchannel, reducing direct contact between the sensing structures and potentially corrosive liquids. Experimental testing of that architecture reported less than 5% relative flow error from 2 to 30 μL/min and a sub-second response.^[11]

Mechanical micro flow meters determine flow from the force or pressure produced by the moving fluid. A compliant cantilever, diaphragm or beam may bend under hydrodynamic loading, after which the displacement is detected optically, capacitively or electrically. One early MEMS implementation used a free-standing microcantilever carrying a platinum piezoresistor; changes in airflow deflected the cantilever and altered its electrical resistance.^[12]

A related approach allows the liquid to travel inside a suspended structure. Mohammadamini and colleagues fabricated a curved PDMS cantilever containing an internal microchannel and measured its vertical displacement as liquid passed through it.^[13] The device operated experimentally between 100 and 1000 μL/min, with reported full-scale accuracy of approximately ±1.39%.^[14] Mechanical flow sensors avoid deliberately heating the sample, which can be advantageous when temperature-sensitive liquids or biological materials are involved.

Cantilever geometry can also be engineered to increase sensitivity to small transient changes rather than only average flow. Microfabricated cantilever structures containing apertures have been demonstrated for in-line monitoring of fluctuations in microfluidic channels, with the cantilever response following variations in the imposed liquid flow.^[15]

A piezoresistive micro flow sensor converts mechanically induced stress into a resistance change. Flow may act directly on a compliant sensing element or generate a pressure difference across a deformable membrane. Because electrical resistance can also vary with temperature, practical designs may require compensation for temperature-induced drift.

Conductive elastomeric membranes provide one implementation in which a pressure-induced deformation changes the resistance of the membrane itself. Such structures can be fabricated from conductive polymer composites and integrated into relatively simple microfluidic geometries, allowing pressure information to be converted into flow information when the hydraulic characteristics of the channel are known.^[16]

A micro-Coriolis flow meter measures mass flow by detecting Coriolis forces generated in an oscillating fluid-carrying structure.^[17] Instead of deriving mass flow from measured volume and an assumed density, the sensing response is associated directly with transported mass. Miniaturization typically requires a suspended microchannel or tube that is driven into vibration while the flow-dependent motion is detected at different positions.

A compact MEMS-based Coriolis instrument reported a full-scale flow of 1 g/h for water, zero stability of 2 mg/h and an accuracy of approximately 0.5% of reading for both liquid and gas measurements.^[18] At such small scales, however, the dynamics of the vibrating structure become an important component of the measurement system. Air surrounding the resonating microchannel introduces damping; experimental and theoretical investigation has shown that reducing environmental pressure can substantially increase the resonator quality factor.^[19]

Different readout techniques can be coupled to the vibrating flow tube. Capacitive detection is common in micromachined devices, whereas a later nickel-plated micro-Coriolis meter used LEDs and phototransistors to observe tube motion optically.^[20] This demonstrates that the Coriolis principle and the displacement-readout mechanism can be engineered relatively independently.

Channel fabrication constrains both hydraulic resistance and measurement range. Increasing microchannel cross-section can reduce pressure drop but changes the mechanical properties of the resonator. A wet-etched silicon Coriolis sensor reported a substantially enlarged suspended channel and a water-flow range extending to approximately 50 g/h at a 1 bar pressure drop, illustrating one route toward extending MEMS Coriolis technology beyond ultra-low-flow operation.^[21]

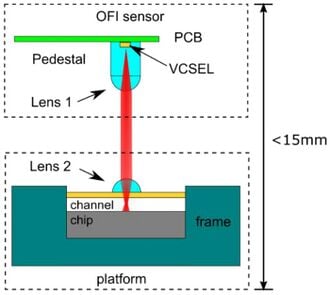

Optical micro flow meters convert a flow-dependent physical change into an optical signal.^[22] Possible observables include interference fringes, fluorescence distributions, resonant wavelength, refractive index and the displacement of an optically interrogated mechanical element. Because the optical components need not always make electrical contact with the liquid, such techniques can be attractive for electrically sensitive or chemically isolated systems.

One optofluidic configuration combines a micro-Venturi structure with Fabry–Pérot interferometers. Pressure changes generated by the flow deform optical sensing structures and shift the interference pattern; an experimental device based on this principle demonstrated detection of flow changes on the order of nanolitres per minute.^[23]

At considerably lower flow rates, fluorescence transport can be used as a metrological signal. An optofluidic method developed by researchers including the U.S. National Institute of Standards and Technology measured flows in the sub-nanolitre-per-minute regime and was applied to calibration of low-flow controllers.^[24] At these scales, diffusion and photophysical processes can form part of the measurement model rather than merely acting as secondary effects.

Optical resonance provides another sensing route. A nested capillary containing nematic liquid crystal has been operated as a whispering-gallery-mode flowmeter: airflow through the inner capillary cools the resonator, altering the liquid-crystal refractive index and consequently shifting its optical resonances.^[25] The reported device therefore converts a thermally induced refractive-index change into a spectrally resolved flow signal.

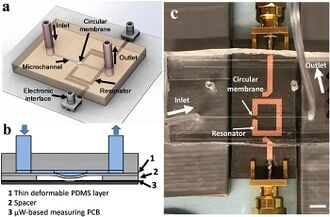

Electromagnetic sensing can separate the electronic readout system from the flowing material.^[26] In one non-contact microwave microfluidic flow sensor, pressure generated within a microchannel deformed a thin polymer layer positioned above a microwave resonator. The deformation changed the electromagnetic environment of the resonator, allowing flow to be inferred without placing conventional electrodes directly in the liquid path.^[27]

This type of architecture can be useful where contamination, electrical interaction with the sample, or direct exposure of the readout electronics to the fluid is undesirable.^[28] Its measurement response nevertheless depends on the mechanical properties and geometry of the deformable layer as well as on the electromagnetic resonator.

Pressure drop and flow are related through the hydraulic resistance of a channel, provided that the fluidic regime and channel properties are sufficiently well characterized.^[29] Consequently, measuring pressure at one or more locations can provide an indirect measurement of flow.

An optofluidic membrane interferometer has been demonstrated for simultaneous measurement of microchannel pressure and flow. In that system, pressure deforms a flexible membrane and the deformation is measured interferometrically, providing spatial pressure information from which the corresponding fluid behavior can be evaluated.^[30]

Piezoelectric micro flow sensors use deformation or vibration produced by fluid motion to generate an electrical response.^[31] Unlike resistive or optical sensors, certain piezoelectric architectures can produce their own sensing signal from mechanical excitation and therefore need little or no external electrical power at the sensing element.

A self-powered microfluidic piezoelectric sensor reported in 2026 used a flexible piezoelectric structure for monitoring low-flow metal-ion solutions and demonstrated detection beginning at approximately 3 μL/min.^[32] Such devices represent an emerging category rather than an established universal replacement for thermal or Coriolis systems, and their applicability depends strongly on the fluid, channel and mechanical excitation conditions.

The performance of a micro flow meter is normally described by several quantities rather than by flow range alone.^[33] These include sensitivity, resolution, accuracy, repeatability, zero stability, response time, pressure drop and dynamic range. The relative importance of these parameters depends on the application; a sensor for detecting rapid pump pulsations, for example, may prioritize temporal response, whereas an instrument intended for metrological transfer may place greater emphasis on uncertainty and long-term zero stability.

Miniaturization does not automatically improve every performance characteristic. Very small channels increase hydraulic resistance, surface interactions become increasingly important, and trapped bubbles can produce signals that are disproportionately large relative to the total fluid volume. Thermal instruments additionally depend on properties such as thermal conductivity and heat capacity, whereas mechanical sensors can be affected by modulus changes, creep and structural drift.

Micro flow meters require calibration against a reference flow or mass-flow standard.^[34] At low liquid flow rates, gravimetric calibration can be performed by measuring accumulated mass over a defined period and correcting for effects such as evaporation, fluid density and environmental disturbances. In clinical infusion applications, the preparation required for precise gravimetric measurements is one reason miniaturized flow sensors have been investigated as portable calibration tools.^[35]

Calibration becomes increasingly demanding as the flow approaches the nanolitre-per-minute regime because the accumulated liquid quantity is extremely small.^[36] Long averaging intervals improve mass resolution but reduce temporal information, while short measurements become more sensitive to pump pulsation, evaporation and detector noise. Consequently, a stated flow-meter accuracy is meaningful only together with the calibrated range, fluid, environmental conditions and uncertainty model.

No single micro flow-meter technology provides optimal performance for all microscale flows.^[37] Thermal sensors are compact and sensitive but may depend on fluid thermal properties and can introduce local heating. Mechanical and piezoresistive devices avoid active heating but can exhibit material drift and require careful mechanical calibration. Coriolis meters provide direct mass-flow information but require controlled vibration and highly engineered suspended structures. Optical methods can reach very low measurement ranges but may require lasers, detectors or alignment-sensitive components.^[38]

Pressure drop is another practical limitation. As channel dimensions decrease, the hydraulic resistance required to pass a given volumetric flow can rise sharply. Increasing channel dimensions reduces this resistance but may reduce sensor sensitivity or increase the overall device size. Selection of a micro flow meter is therefore generally an optimization among measurable range, accuracy, response time, pressure loss, sample compatibility, fabrication complexity and cost.
