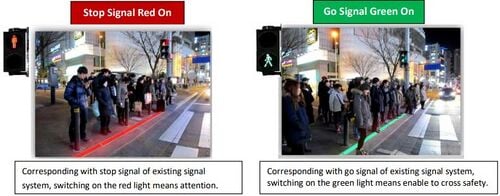

Expected Effect – Comparing Before or After with Luminous Zebra Crossing
Increasing 35% of visible range at night. Taking a role of psychological line that will not let people step on the LED Pavement Light.
Luminous Zebra Crossing, Intelligent Zebra Crossing. for Reduce pedestrian traffic accidents
1．Application background:
With the development of social economy and the migration of population to cities, cars have gradually entered thousands of households, and the number of families with cars has increased. With the popularity of smart phones, Twitter, Whatsapp, Skype, Youtube, Facebook, Webchat, Weibo, and Android & iphone Software. are becoming more and more. More and more people like to play mobile phones at any time, any place, more and more " phubber ". Therefore, the traffic accidents of pedestrians and vehicles on zebra crossing are more and more frequent.
The existing pedestrian traffic light installed on the pole has very limited function of prompting, which can no longer meet the current needs:
a. Pedestrian traffic lights are hung on the side above the opposite side of the road. Pedestrians need to look up to see clearly the color displayed by the traffic lights. When there are large vehicles passing by, or when there is a lot of traffic (due to height difference), they often cannot see the color displayed by the traffic lights on the opposite side of the road;
b. The number of mobile phone bow heads is increasing;
c. In case of heavy fog, rainy day and severe ice and snow weather;
d. At the same time, Pavement Traffic Light can also provide warning function for motor vehicle drivers at night to slow down the vehicle in advance.
e. Make people easily get traffic signals at traffic lights and cross the road safely.
Traffic accident prevention facility is needed urgently for pedestrians and the vulnerable.
I Need to improve the visibility and discernment of pedestrians signal at night;
II Need to have the secondary information provider that lets the pedestrians on crossing
know the current status of pedestrian signal;
III Need to have pedestrian safety facility that clearly shows the boundary line between the road &the sidewalk, which pedestrians comply to the signal better for safety reinforcement.

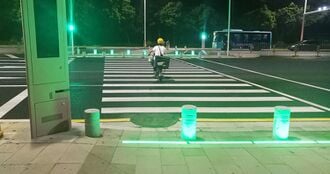

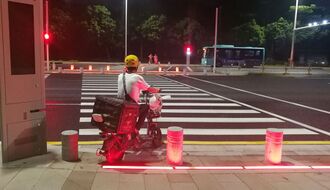

Luminous Zebra Crossing, Intelligent Zebra Crossing, LED Brick Light for Zebra Crossing.[edit | edit source]
LED Safety Pavement Traffic Light : For the prevention of road accidents to pedestriansTri-waterproof-IP 67, Anti High Strength Compression and Vibration, Auto Dimming
Feature Products:
1 Special Design for Zebra Crossing Pedestrian, Our products with high brightness, can also play an eye-catching role in the daytime, with 510nm Green and 625nm Red light, good color uniformity, soft, not dazzling . The Light with the maximum brightness at daytime. automatically dimming to 30% at night by photosensitive.
2 Unique circuit design, when One LED chip is damaged, it affects only one single LED, and will not cause dark area .
3 Anti high strength compression and vibration: use 10mm frosted tempered glass, the surface is designed to prevent slippery; Design of rubber spring for buffer the pressure when car running over the Product.
4 The embedded parts easy for maintenance , designed by self-locking. When the product is replaced for repaired, Just slide the lamp bar and take it out. The bottom of embedded parts is designed Hollow out, so the requirement for flatness of groove bottom is not high.

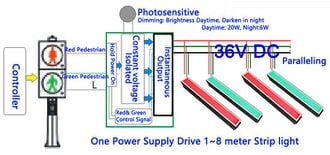

5 IP66 Power Supply, response time<100ms, without delay, synchronized with pedestrian traffic lights;
6 Best heat sink with unique buried ventilation holes; Warranty> 2 years.
7 Novelty design with beautiful appearance, covered by 304 stainless steel surface. Friction can make it glossy.
8 Tri-Waterproof treatment: PU Glue filling + DOW CORNING(USA) + silicone waterproof ring, IP Grade: IP67.
9 Working Voltage:DC36V, Isolated Power Supply to ensure safety.
10 Power:6W~20W, Red: 20W, Luminous Flux>800lm, Green: 20W, Luminous Flux>1000lm.
Status of Pedestrian Safety Facility
Various facilities for vehicles Facility for pedestrians: Only one place=> Truly lacking  |
File:Af05a2bb95c8b8fa8dbfdceafe0d893a.mp4 File:Shenzhen Luminous Zebra Crossing.mp4
