Much of the post-harvest loss of fruits and vegetables in developing countries is due to the lack of proper storage facilities. While refrigerated cool stores are the best method of preserving fruits and vegetables they are expensive to buy and run. Consequently, in developing countries there is an interest in simple low-cost alternatives, many of which depend on evaporative cooling which is simple and does not require any external power supply.

The basic principle relies on cooling by evaporation. When water evaporates it draws energy from its surroundings which produces a considerable cooling effect. Evaporative cooling occurs when air, that is not too humid, passes over a wet surface; the faster the rate of evaporation the greater the cooling. The efficiency of an evaporative cooler depends on the humidity of the surrounding air. Very dry air can absorb a lot of moisture so greater cooling occurs. In the extreme case of air that is totally saturated with water, no evaporation can take place and no cooling occurs. For these reasons, there are general operating conditions in which evaporative cooling can provide the most benefits, low humidity climates (less than 40% relative humidity), relatively hot temperature (maximum daily temperature greater than 25 °C), available water to add to the device between one and three times per day, and location in a shady and well-ventilated area.

Generally, an evaporative cooler is made of a porous material that is fed with water. Hot dry air is drawn over the material. The water evaporates into the air raising its humidity and at the same time reducing the temperature of the air. There are many different styles of evaporative coolers. The design will depend on the materials available and the users requirements. Some examples of evaporative cooling designs are described below.

Pot designs[edit | edit source]

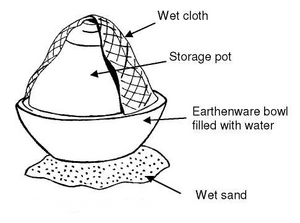

Figure 1: A Janata Cooler

These are simple designs of evaporative coolers that can be used in the home. The basic design consists of a storage pot placed inside a bigger pot that holds water. The inner pot stores food that is kept cool.

One adaptation on the basic double pot design is the Janata cooler, developed by the Food & Nutrition Board of India. A storage pot is placed in an earthenware bowl containing water. The pot is then covered with a damp cloth that is dipped into the reservoir of water. Water drawn up the cloth evaporates keeping the storage pot cool. The bowl is also placed on wet sand, to isolate the pot from the hot ground.

Mohammed Bah Abba a teacher in Nigeria, developed a small-scale storage "pot-in-pot" system that uses two pots of slightly different size. The smaller pot is placed inside the larger pot and the gap between the two pots is filled with sand. Mohammed won the Rolex 200 Award for Enterprise for his design. Further details are in Number 4 Volume 27 Oct/ Dec 2000 of Appropriate Technology, and an additional construction guide can be found in the Best Practices Guide based on studies in Mali done by MIT D-Lab, The World Vegetable Center and Movement e.V..[1]

In Sudan, Practical Action and the Woman's Association for Earthenware Manufacturing have been experimenting with the storage design of Mohammed Bah Abba. The aim of the experimentation was to discover how effective and economical the Zeer storage is in conserving foods. Zeer is the Arabic name for the large pots used. The results are shown in the following table.

Table 1: Vegetable shelf-life
Produce Shelf-life of produce without using the Zeer Shelf-life of produce using the Zeer
Tomatoes 2 days 20 days
Guavas 2 days 20 days
Rocket 1 day 5 days
Okra 4 days 17 days
Carrots 4 days 20 days

As a result of the tests, the Woman's Association for Earthenware Manufacturing started to produce and market the pots specifically for food preservation.

A bamboo cooler[edit | edit source]

The base of the cooler is made from a large diameter tray that contains water. Bricks are placed within this tray and an open weave cylinder of bamboo or similar material is placed on top of the bricks. Hessian cloth is wrapped around the bamboo frame, ensuring that the cloth is dipping into the water to allow water to be drawn up the cylinder's wall. Food is kept in the cylinder with a lid placed on the top.

An Almirah cooler[edit | edit source]

The Almirah is a more sophisticated cooler that has a wooden frame covered in cloth. There is a water tray at the base and on top of the frame into which the cloth dips, thus keeping it wet. A hinged door and internal shelves allow easy access to the stored produce.

A charcoal cooler[edit | edit source]

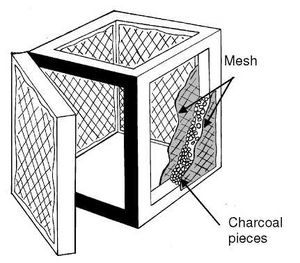

Figure 2: A charcoal cooler

The charcoal cooler is made from an open timber frame of approximately 50mm x 25mm (2" x 1") in section. The door is made by simply hinging one side of the frame. The wooden frame is covered in mesh, inside and out, leaving a 25mm (1") cavity which is filled with pieces of charcoal. The charcoal is sprayed with water, and when wet provides evaporative cooling. The framework is mounted outside the house on a pole with a metal cone to deter rats and a good coating of grease to prevent ants getting to the food.

The top is usually solid and thatched, with an overhang to deter flying insects (Not shown in Figure 2).

All cooling chambers should be placed in a shady position, and exposure to the wind will help the cooling effect. Airflows can be artificially created through the use of a chimney. For example using a mini electric fan or an oil lamp to create airflows through the chimney - the resulting draft draws cooler air into the cabinet situated below the chimney. The Bhartya cool cabinet uses this principle to keep its contents cool. Wire mesh shelves and holes in the bottom of the raised cabinet ensure the free movement of air passing over the stored food.

Static cooling chambers[edit | edit source]

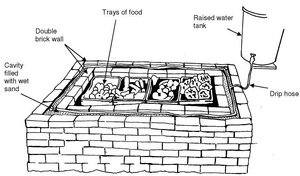

Figure 3: A static cooling system

The Indian Agricultural Research Institute has developed a cooling system that can be built in any part of the country using locally available materials.

The basic structure of the cooling chamber, often called Evaporative Cooling Chambers (or ECCs), can be built from bricks and river sand, with a cover made from cane or other plant material and sacks or cloth. There must also be a nearby source of water. Construction is fairly simple. First the floor is built from a single layer of bricks, then a cavity wall is constructed of brick around the outer edge of the floor with a gap of about 75mm (3") between the inner wall and outer wall. This cavity is then filled with sand. About 400 bricks are needed to build a chamber of the size shown in Figure 3 which has a capacity of about 100kg. A covering for the chamber is made with canes covered in sacking all mounted in a bamboo frame. The whole structure should be protected from the sun by making a roof to provide shade.

After construction the walls, floor, sand in the cavity and cover are thoroughly saturated with water. Once the chamber is completely wet, a twice-daily sprinkling of water is enough to maintain the moisture and temperature of the chamber. A simple automated drip watering system can also be added as shown in Figure 3.

Another detailed outline for construction can be found in the Best Practices Guide based on studies in Mali done by MIT D-Lab, The World Vegetable Center and Movement e.V..[2]

Naya cellar storage[edit | edit source]

Practical Action Nepal has been successful in transferring cooler technology, similar to the Indian Agricultural Research Institute design, especially to rural areas. It is called the Naya Cellar Storage and was originally designed by Dr. Gyan Shresthra from the Green Energy Mission and Mr. Joshi. It is comparatively easy to adapt the design to the users requirements and the construction is made from locally available materials. The results have been encouraging for rural food processors who have little or no income and have been unable to acquire costly refrigerators.

The following basic materials are required to construct the Naya Cellar Storage:

  1. Bricks-1200-1500
  2. Sand - 400-500 Kilograms (880 lb - 110 lb)
  3. Polythene hose - 6 meters (26')
  4. Water tank/bucket - 100 litre capacity (22 gal)
  5. Bamboo/wood - 1.82 meters (6') two pieces and 2.15 meters (7') two pieces
  6. Straw - 2 bundles
  7. Sacks

Construction details[edit | edit source]

Choose a small piece of land about 1.52 meters square (5'x 5') facing away from the sun or in shaded part of the plot or where the sun does not shine so many hours per day. The ground should slope a little so that ground water drains away from your construction and does not seep into the chamber.

The size of the cellar storage can be varied to suit the user. The greater the volume to be stored, the bigger the size of the chamber. Normally a 1.22.x 0.92 meters (3'x 4') rectangular mortarless stone or brick structure is built.

Wall filling material: Clean sand. It should be free from soil to ensure against contamination from organic impurities.

First lay a ground layer of sand, at least 25mm (1") thick is needed, spread and compact it thouroghly on the ground over the area where the chamber is to be built and a layer of bricks or stones is laid onto the sand. As flat and level as possible. Use a long piece of straight wood to measure and fill in with extra sand under those bricks or stones that need adjusting. (it is also possible to first lay a layer of bricks to get more even ground, if you can afford that extra cost)

A double walled chamber is constructed with the bricks. See figure 3, above. The gap between the outer and inner wall of the chamber can be made about 125mm (5"). The cavity between these two walls are filled with clean sand. If you want to put shelves or hooks to hang your produce from on the interior walls, now you can prepare fasteners where those should be placed. By incorporating metal fasteners between different layers of bricks (that form your internal chamber wall) you can make the shelves more steady. But make the fasteners and the shelves solid and sturdy enough, depending on how much weight you will store on those shelves in the future. Do not make large gaps in the brick layers as the sand or water from the middle layer can seap into your chamber.

Build to a height of around 1.22 meters (3'), or build it as high as you can afford, and later in the future add some extra layers of bricks, to increase wall height and storage space. But remember that you must be able to stand on the ground outside the chamber and be able to reach your stored goods on the floor inside the chamber.

Irrigation system: A high-density polythene hose with many small pinholes made along its whole length is laid on top of the sand layer between the two walls, near the top of the construction. The hose is blocked at the end so that water released from a tank spreads through these holes and keeps the sand moist inside all walls. Pack sand around the hose so it lies firmly, but not too compactly or permanently embedded. You might later need to be able to lift it up and repair or unclog the holes in the hose if you notices that it perhaps is blocked.

Construct a sturdy thatched or flat roof out of wood, board, planks or bamboo. It must not become too heavy as you will need to remove it manually to gain access to the storage chamber. Place several short bamboo poles (at least 4-6) of the same length, stick it down equally deep in the sand layer, evenly spread out around the rim (most importantly is the corners). The poles should stick up just a centimeter (half an inch) above the top layer of bricks. In that way the roof is supported and held a little distance above the cool chamber. The roof can be covered with any types of material that can be fastened securely, woven textile sheets, fine meshed net, large sacks. Fasten it well so that it does not risk getting loose (from strong winds or animals). You could also fasten hinges on one external brick wall, so it is possible to open and close quickly and conveniently. This can provide option for you to be able to put a lock on your roof too. If you choose a flat roof on top of your chamber you can place bricks or other weights on top of it, and make sure that rain water does not leak into your chamber.

To keep the chamber cool, the sand must be moist at all times and circulation of air around the chamber must be unhindered. The air inside the chamber is cooled by the effect of the humidity evaporating from the water in the sand, and it is emitted through the porous bricks towards the external dry air and thus prolonging the shelf-life of the food stored within it.

Operation[edit | edit source]

To prevent damage to the fruit and vegetables they should all be carefully stored in bamboo or plastic mesh trays/baskets. The trays/baskets can have four legs so that their contents are raised up from off the floor of the chamber. You can also hang textile bags on the interior walls if you mounted hooks or other fasteners during the construction.

The flow of water through the hose needs to be regulated in response to changes in the outside temperature to allow conditions within the chamber to remain constant.

In one of the villages where Practical Action Nepal has been installing 'Satso' solar dryers, one young mother also had a Naya cool chamber and was successfully storing cabbage and ginger for up to 2 weeks longer than she had done without the chamber. She used locally available stones from rivers to construct the walls, and covered the chamber with a piece of sack mounted on a criss-cross of bamboo.
