Calibrating an ESC

From Appropedia

Materials

[edit | edit source]
  • ESC
  • Breadboard
  • Push button
  • 12 volt source
  • Fuse above 18 amps and Fuse holder
  • Brushless Motor
  • Arduino
  • Arduino wires
  • Wires to connect to fuse and battery

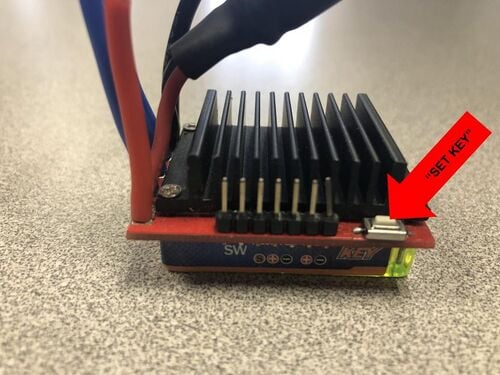

    This is where the "SET KEY" is.

Calibrating The ESC

[edit | edit source]
  1. Switch off the ESC
  2. Switch on transmitter
  3. Hold down the "SET KEY" on the ESC
  4. Switch on ESC
  5. Press button once within two seconds of turning on the ESC
  6. ESC will send a beep- beep- sound telling that it has read the maximum value
  7. Press button again
  8. ESC will read minimum value sending a beep- beep- sound letting you know it got it
  9. Release the "SET KEY" setting will be finished

Code

[edit | edit source]

ESC Calibration Code [1]

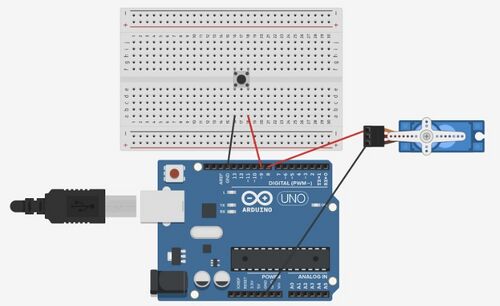

This is what it will look like to wire the ESC. There is a servo in place of the ESC because the Servo is wired the same way as the ESC.

Wiring The ESC

[edit | edit source]
  1. Plug in the ESC to a battery using a fuse on the positive side
  2. Use a three pin wire to plug the ESC into the arduino
