Current Projects[edit | edit source]

OpenSourceHardware[edit | edit source]

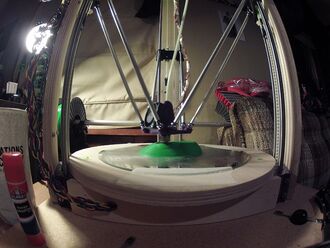

RockWall Project[edit | edit source]




Rock Wall Hold - Thingiverse




Celtic Coaster[edit | edit source]

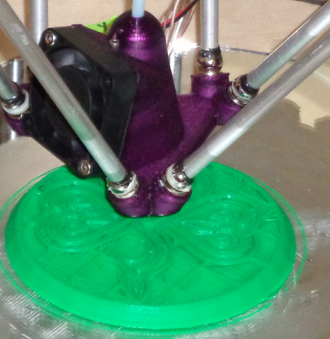

CloverCoaster 02.png


Celtic Coaster - Thingiverse



Remix: Celtic Clover - Thingiverse






BoardSport Technologies[edit | edit source]

DAQ Housing[edit | edit source]

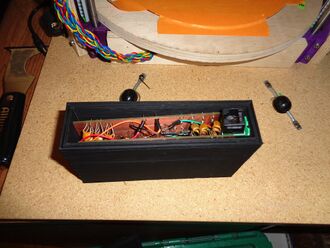

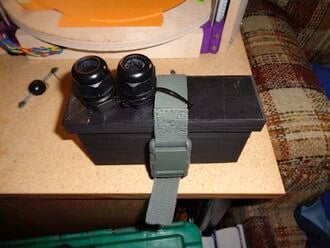

Complete Housing
Circuit board size check


DAQ Housing with circuit boards printed at the IEEE Lab at Michigan Tech. Circuit Boards are made to support use of 5 strain gauges and an accelerometer, that are attached to the top of a snowboard made by BST. The purpose is to record the strain and vibration data with simultaneous video recording to view situations in which the data occurs. The data will also be compared with results from Altair FEA simulations.













Tow-In Winch[edit | edit source]

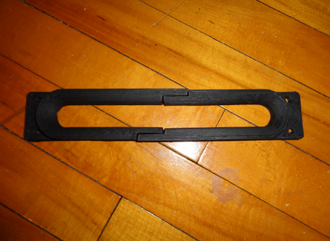

RTG Hawse Fairlead.PNG

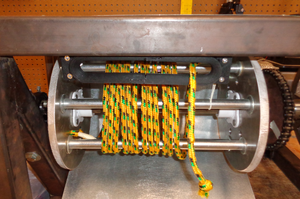

Mounted on BST winch


Hawse Fairlead - Thingiverse

Fairlead Libre3d Page

Hawse Fair lead for BST snowboard winch

BST "Tow-In" winch







Random Projects[edit | edit source]

Rear Mask Piece[edit | edit source]

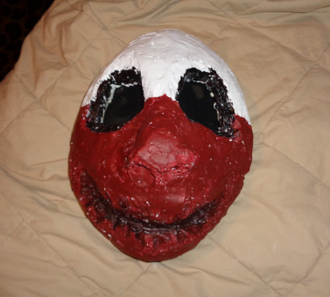

Payday Wolf Mask

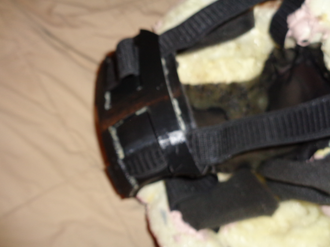

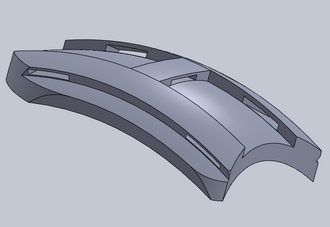

"Catcher mask style" back piece for PAYDAY Halloween Masks
