File:Electronics assembly diagram.png
Size of this preview: 800 × 422 pixels. Other resolution: 3,368 × 1,775 pixels.
Original file (3,368 × 1,775 pixels, file size: 130 KB, MIME type: image/png)

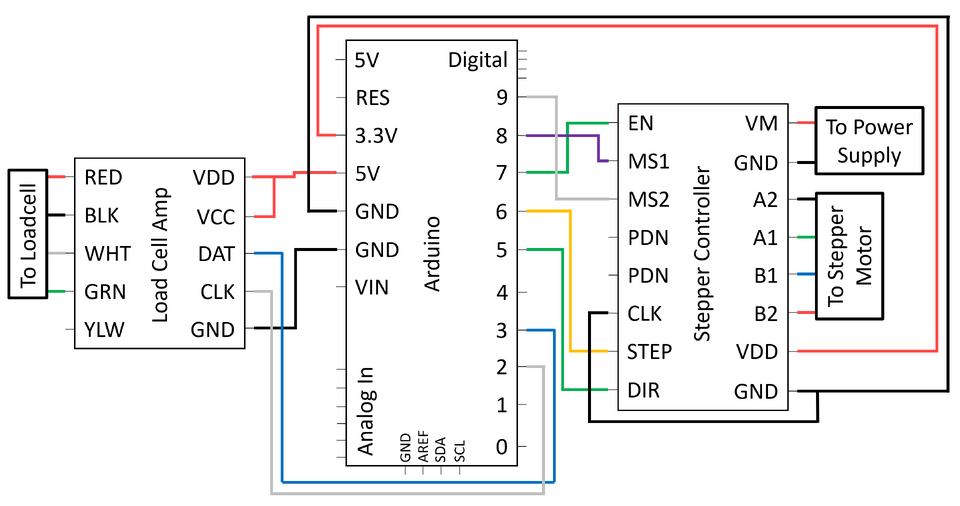

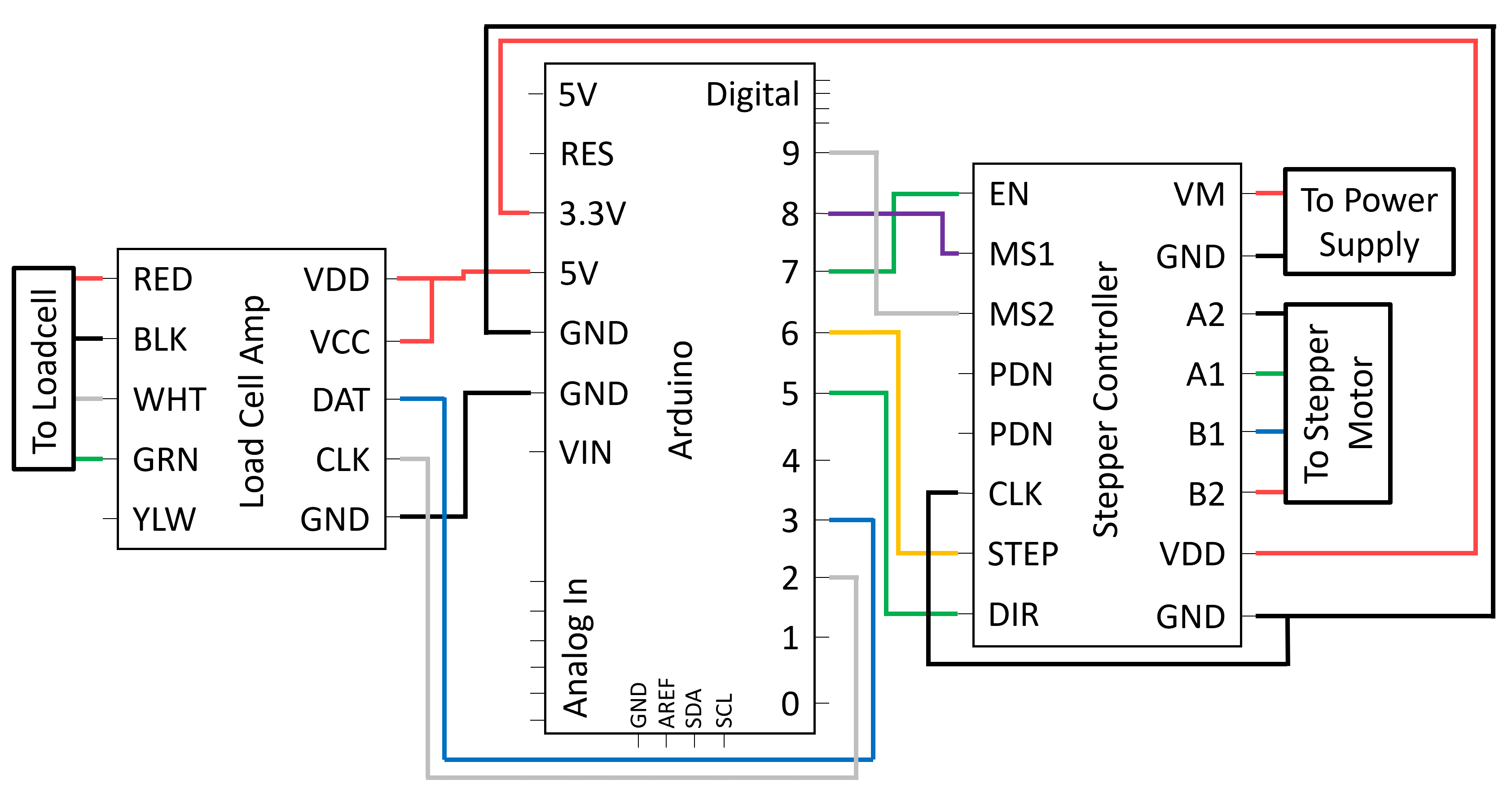

Electronics assembly for wiring the open-source rheometer
| Date created | May 3, 2022 |
|---|---|
| Author | Anjutha Selvaraj |
| Date uploaded | June 16, 2023 |
| Uploader | Anjutha Selvaraj |
| Source | Own work |
| License | CC-BY-SA-4.0 |
