Clothing production - textile size

Before any textile can be produced, we'll need to determine the size of the textile for the cloth we want to manufacture.

Standards are used to create template ? or use automated procedure ? (CNC)

Add general guidelines for template creation and use of the template to make textile sheets

Sizes[edit | edit source]

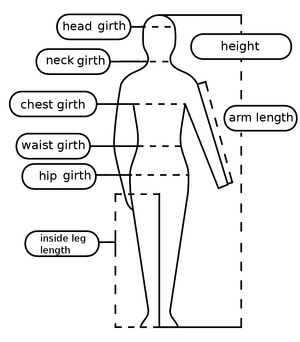

Code (men)^[1]	Height (men)	For age	Chest girth (men)	Waist girth (men)	Hip girth (men)	Inside leg length (men)	Arm length (men)	Head girth (men)	Neck girth (men)	Foot length in cm (men)
X⁴S	119-131	6-8	59-62	54-57	60-65	55-62	41-46	52-52	28-30	18-20
X³S	131-143	8-10	62-67	57-60	61-65	62-69	46-51	52-53	30-32	20-22
X²S	143-155	10-12	67-73	60-65	60-77	69-75	51-56	53-54	32-34	22-24
X¹S	155-167	12-14	73-80	65-70	77-84	75-81	56-61	54-55	34-37	24-26
S	168-172	14-15	86-94	74-82	92-97	80-80	60-60	56-56	38-39	26-26
M	172-176	15-16	94-102	82-90	97-102	81-82	62-62	57-57	39-40	26-27
L	176-180	17-18	102-110	90-98	102-108	88-88	64-74	57-58	41-42	27-27
X¹L	180-184	18+	110-118	98-106	109-114	90-90	65-65	58-59	43-43	27-30
X²L	184-188	18+	118-129	106-117	115-121	86-86	67-67	59-60	44-45	29-29
X³L	188-192	18+	129-141	117-129	121-129	87-88	69-69	60-61	47-48	29-30
X⁴L	192-196	18+	141-153	129-141	129-137	88-89	70-70	61-62	49-49	30-30
X⁵L	196-200	18+	153-165	141-153	137-145	89-91	72-72	63-63	51-51	30-31
X⁶L	200-204	18+	165-177	153-165	145-153	91-92	74-74	64-64	52-52	32-32

Code (women)	Height (women)	For age	Bust girth (women)	Waist girth (women)	Hip girth (women)	Inside leg length (women)	Arm length (women)	Head girth (women)	Neck girth (women)	Foot length in cm (women)
X⁴S	119-131	6-8	60-64	56-59	62-65	55-62	41-45	51-52	29-31	18-20
X³S	131-143	8-10	64-69	59-62	65-72	62-68	45-49	52-53	31-33	20-22
X²S	143-155	10-12	69-74	62-65	72-80	68-74	49-54	53-54	33-35	21-23
X¹S	155-167	12-15	74-80	65-68	80-89	74-80	54-59	54-55	35-37	23-25
S	168-172	15-16	82-90	66-74	92-98	80-79	57-55	54-55	36-37	25-26
M	172-176	18+	90-98	74-82	97-104	84-85	60-61	55-56	37-39	26-26
L	176-180	18+	98-106	82-91	103-112	86-86	62-63	55-56	39-40	26-26
X¹L	180-184	18+	107-119	91-103	111-122	88-88	65-65	55-56	42-42	26-27
X²L	184-188	18+	119-131	103-115	121-132	90-90	68-68	56-56	43-43	27-28
X³L	188-192	18+	131-143	115-127	128-142	92-92	71-71	56-56	45-45	28-28
X⁴L	192-196	18+	143-155	127-139	131-141	94-95	74-74	56-56	46-46	28-28
X⁵L	196-200	18+	155-167	139-151	141-151	96-97	77-77	56-56	48-48	28-28
X⁶L	200-204	18+	167-179	151-163	151-161	98-99	80-80	56-59	49-49	28-29
