File:SMAUG PCB Design.png
Size of this preview: 800 × 350 pixels. Other resolution: 1,126 × 492 pixels.
Original file (1,126 × 492 pixels, file size: 973 KB, MIME type: image/png)

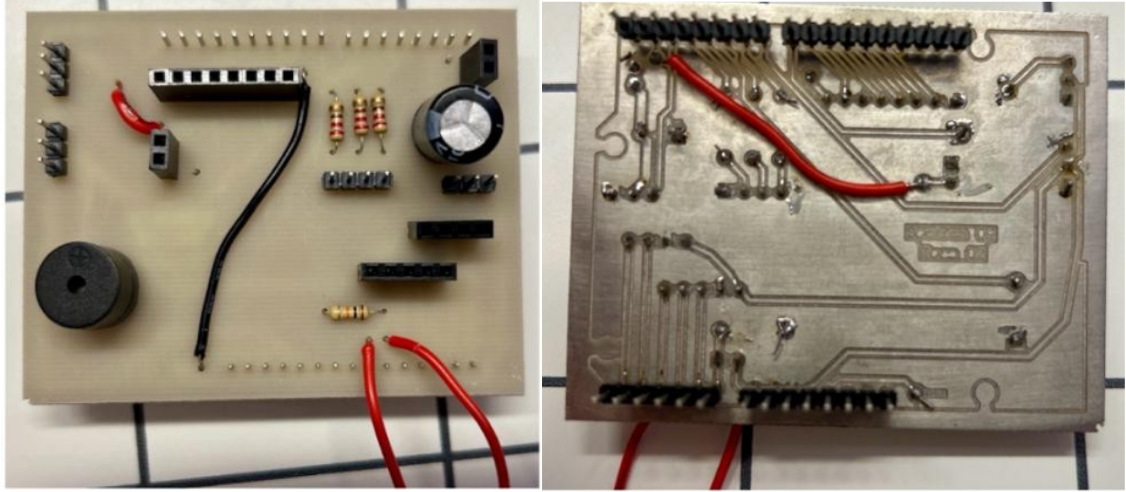

SMAUG PCB design before and after soldering
| Date created | September 24, 2026 |
|---|---|
| Author | Zainab Siddiqui |
| License | CC-BY-SA-4.0 |
| Date uploaded | September 24, 2026 |
| Uploader | Zainab Siddiqui |
| Source | Own work |
