File:Full Assembly Drawing.svg
Size of this PNG preview of this SVG file: 776 × 600 pixels.
Original file (SVG file, nominally 1,056 × 816 pixels, file size: 2.06 MB)

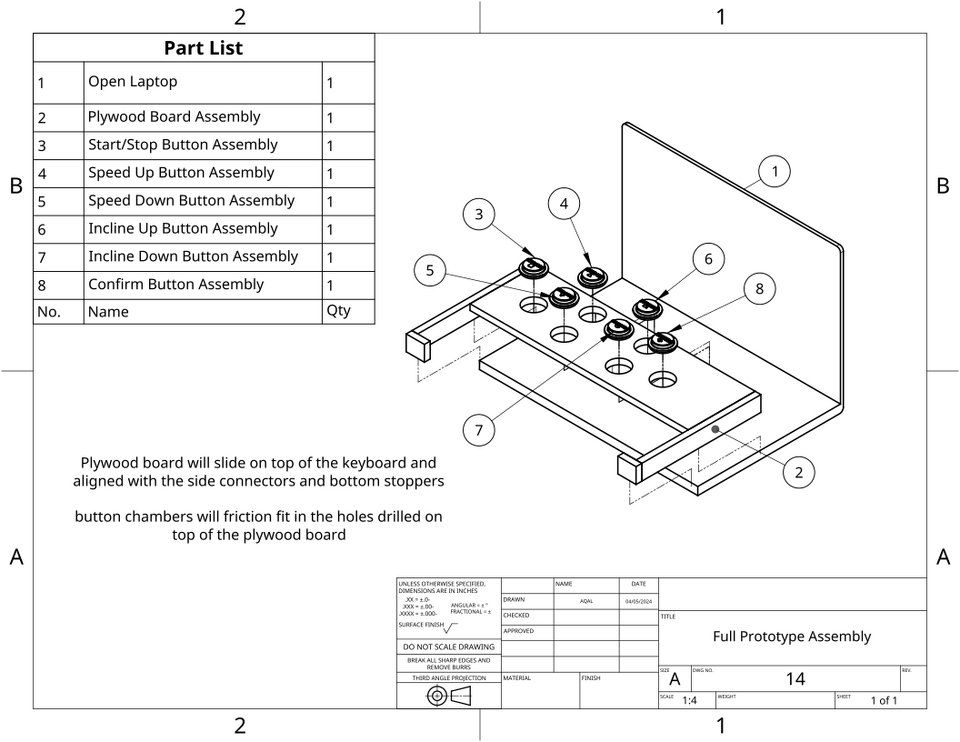

Drawing of physical CAD components for ES1050 project
| Date created | January 13, 2025 |
|---|---|
| Author | Aqal Khalil |
| Date uploaded | January 13, 2025 |
| Uploader | Aqal Khalil |
| Source | Own work |
| License | CC-BY-SA-4.0 |
