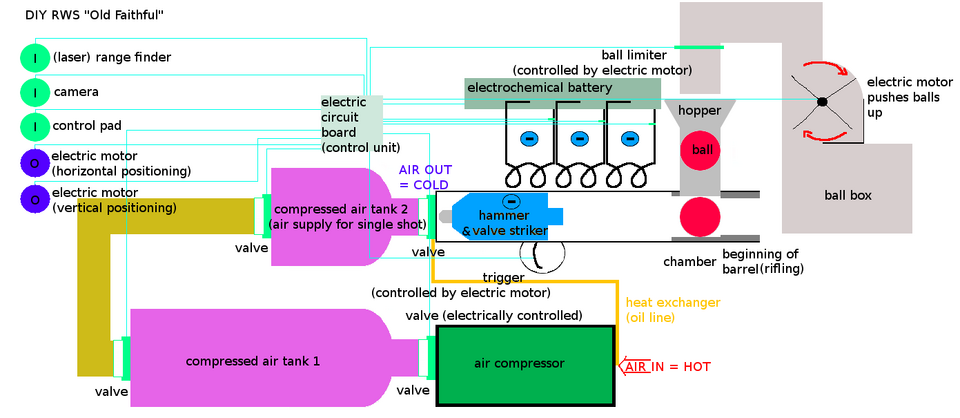

Schematic showing how the pneumatic system of the RWS will need to be arranged. Regarding the range finder, see http://science.howstuffworks.com/range-finder-info.htm I stands for input (device), O for output (device). The system is similar to the Capacitor Discharge Technology as used by companies as Daystate (Daystate MK3), Airforce Airguns (Airforce Airguns Condor), and others
